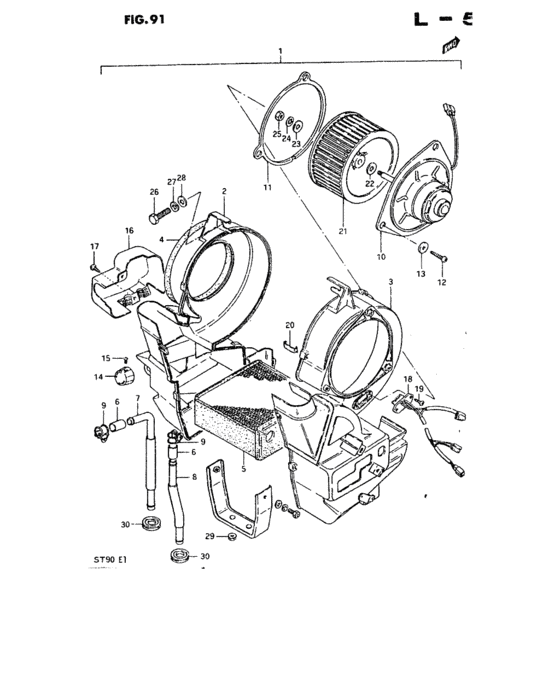

Car heater (TYPE 1,TYPE 2) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88100-79001-000
Car heater assy
FROM 88100-79000 |
88100-79001-000 |
— | ||
|
1
|
1
88100-79060-000
Car heater assy
Finland |
88100-79060-000 |
— | ||
|
2
|
2
88111-79000-000
Case, lh
|
88111-79000-000 |
— | ||
|
3
|
3
88115-79000-000
Case, rh
|
88115-79000-000 |
— | ||
|
4
|
4
88181-79000-000
Packing, fresh air
|
88181-79000-000 |
— | ||
|
5
|
5
88120-79000-000
Unit,heater
|
88120-79000-000 |
— | ||
|
6
|
6
88166-79000-000
Hose
|
88166-79000-000 |
— | ||
|
7
|
7
88162-79000-000
Pipe
|
88162-79000-000 |
— | ||
|
8
|
8
88163-79000-000
Pipe
|
88163-79000-000 |
— | ||
|
9
|
9
88165-79000-000
クランプ
|
88165-79000-000 |
— | ||
| replacements | |||||
|
9
|
9
09400-20311-000 CLAMP |
09400-20311-000 |
US $17.30 |
||
|
9
|
9
09400-20901-000
Clamp
|
09400-20901-000 |
— | ||
|
10
|
10
88150-78001-000
Motor assy
FROM 88150-78000 |
88150-78001-000 |
— | ||
|
10
|
10
88150-79060-000
Motor assy
Finland |
88150-79060-000 |
— | ||
|
11
|
11
88153-79000-000 PACKING,MOTOR |
88153-79000-000 |
US $1.52 |
||
|
11
|
11
88153-79060-000
Packing
Finland |
88153-79060-000 |
— | ||
|
12
|
12
03211-05168-000
Screw
|
03211-05168-000 |
— | ||
| replacements | |||||
|
12
|
12
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
12
|
12
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
13
|
13
09160-05006-000
Speedometer was
|
09160-05006-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-05006-XC0 WASHER(5.5X18X1.6) |
09160-05006-XC0 |
from US $3.57 |
||
|
14
|
14
88161-79000-000
Knob
|
88161-79000-000 |
— | ||
|
15
|
15
02112-03128-000
Screw
|
02112-03128-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-0312B-000 SCREW |
02112-0312B-000 |
from US $0.78 |
||
|
16
|
16
88164-79001-000
Cover, heater valve
FROM 88164-79000 |
88164-79001-000 |
— | ||
|
17
|
17
03212-04109-000
Screw 4x10
|
03212-04109-000 |
— | ||
| replacement | |||||
|
17
|
17
03211-0410B-000 SCREW |
03211-0410B-000 |
from US $0.80 |
||
|
18
|
18
88170-79000-000
Resister
|
88170-79000-000 |
— | ||
|
18
|
18
88170-79060-000
Resister
Finland |
88170-79060-000 |
— | ||
|
19
|
19
03211-04128-000
Screw
|
03211-04128-000 |
— | ||
| replacement | |||||
|
19
|
19
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
20
|
20
88119-79000-000
Spring, case
|
88119-79000-000 |
— | ||
| replacement | |||||
|
20
|
20
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
21
|
21
88190-79000-000 FAN,BLOWER |
88190-79000-000 |
US $29.81 |
||
|
22
|
22
88193-79000-000
Washer
|
88193-79000-000 |
— | ||
| replacement | |||||
|
22
|
22
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
23
|
23
88194-79000-000
Washer
|
88194-79000-000 |
— | ||
| replacements | |||||
|
23
|
23
09160-05037-000 WASHER(5.5X16X1.2) |
09160-05037-000 |
from US $0.91 |
||
|
23
|
23
09160-05016-000
Washer, center
|
09160-05016-000 |
— | ||
|
24
|
24
88195-79000-000
Washer
|
88195-79000-000 |
— | ||
|
25
|
25
08310-11058-000
Nut
|
08310-11058-000 |
— | ||
| replacement | |||||
|
25
|
25
08310-00057-000 NUT |
08310-00057-000 |
from US $0.76 |
||
|
26
|
26
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
27
|
27
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
28
|
28
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
28
|
28
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
29
|
29
08316-26068-000
Nut
|
08316-26068-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
30
|
30
09308-10005-000 GROMMETGrommet, rr lead |
09308-10005-000 |
from US $1.72 |
||
