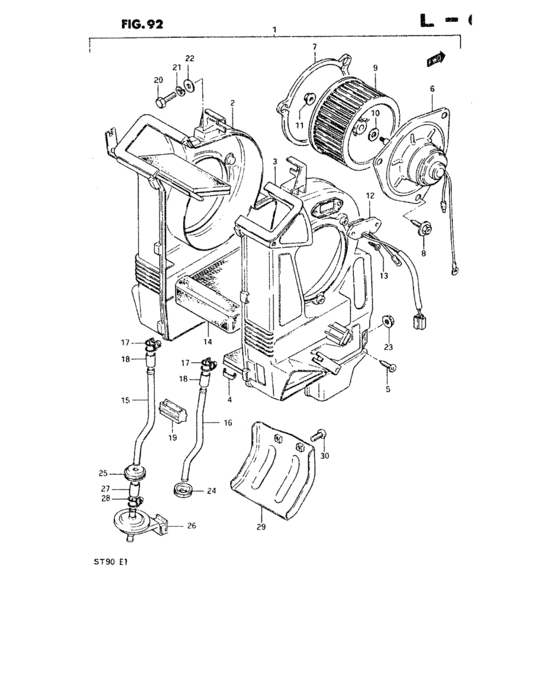

Car heater (TYPE 3) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88100-79002-000
Car heater assy
RHD |
88100-79002-000 |
— | ||
|
1
|
1
88100-79061-000
Car heater assy
LHD |
88100-79061-000 |
— | ||
|
2
|
2
88111-79001-000
Case, lh
RHD |
88111-79001-000 |
— | ||
|
2
|
2
88111-79061-000
Case, lh
LHD |
88111-79061-000 |
— | ||
|
3
|
3
88115-79001-000
Case, rh
RHD |
88115-79001-000 |
— | ||
|
3
|
3
88115-79061-000
Case, rh
LHD |
88115-79061-000 |
— | ||
|
4
|
4
88119-79000-000
Spring, case
|
88119-79000-000 |
— | ||
| replacement | |||||
|
4
|
4
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
5
|
5
03111-05165-000
スクリュ
|
03111-05165-000 |
— | ||
| replacement | |||||
|
5
|
5
03111-0516A-000 SCREW |
03111-0516A-000 |
from US $0.80 |
||
|
6
|
6
88150-79001-000
Motor assy
RHD |
88150-79001-000 |
— | ||
|
6
|
6
88150-79061-000
Motor assy
LHD |
88150-79061-000 |
— | ||
|
7
|
7
88153-79000-000 PACKING,MOTOR |
88153-79000-000 |
US $1.52 |
||
|
8
|
8
88154-79001-000
Screw, motor
|
88154-79001-000 |
— | ||
| replacement | |||||
|
8
|
8
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
9
|
9
88140-78000-000 BLOWER ASSYRHD |
88140-78000-000 |
US $20.61 |
||
|
9
|
9
88190-79000-000 FAN,BLOWERLHD |
88190-79000-000 |
US $29.81 |
||
|
10
|
10
88193-79001-000
Washer
|
88193-79001-000 |
— | ||
| replacement | |||||
|
10
|
10
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
11
|
11
08316-26058-000
Nut 5mm
|
08316-26058-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
12
|
12
88170-79001-000
Resistor
|
88170-79001-000 |
— | ||
|
13
|
13
03211-04128-000
Screw
|
03211-04128-000 |
— | ||
| replacement | |||||
|
13
|
13
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
14
|
14
88120-79001-000
Unit assy
|
88120-79001-000 |
— | ||
| replacement | |||||
|
14
|
14
88120-79002-000
Unit,sub radiator
|
88120-79002-000 |
— | ||
|
15
|
15
88162-79001-000
Pipe, water lh
|
88162-79001-000 |
— | ||
|
16
|
16
88163-79001-000
Pipe, water rh
|
88163-79001-000 |
— | ||
|
17
|
17
88165-79000-000
クランプ
|
88165-79000-000 |
— | ||
| replacements | |||||
|
17
|
17
09400-20311-000 CLAMP |
09400-20311-000 |
US $17.30 |
||
|
17
|
17
09400-20901-000
Clamp
|
09400-20901-000 |
— | ||
| replacement | |||||
|
17
|
17
09400-20311-000 CLAMP |
09400-20311-000 |
US $17.30 |
||
|
18
|
18
88166-79000-000
Hose
|
88166-79000-000 |
— | ||
|
19
|
19
88167-79001-000
Bush, water pipe
|
88167-79001-000 |
— | ||
|
20
|
20
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
21
|
21
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
22
|
22
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
22
|
22
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
23
|
23
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
24
|
24
09308-10005-000 GROMMETGrommet, rr lead |
09308-10005-000 |
from US $1.72 |
||
|
25
|
25
88212-79002-000 GROMMET,HEATER PIPE |
88212-79002-000 |
US $4.05 |
||
|
26
|
26
88710-79002-000
VALVE ASSY,WATER
|
88710-79002-000 |
— | ||
|
27
|
27
88721-79001-000
Hose, water valve
|
88721-79001-000 |
— | ||
| replacement | |||||
|
27
|
27
74383-78A00-000 HOSE,RR HTR INLET RR |
74383-78A00-000 |
US $4.82 |
||
|
28
|
28
09400-20901-000
Clamp
|
09400-20901-000 |
— | ||
| replacement | |||||
|
28
|
28
09400-20311-000 CLAMP |
09400-20311-000 |
US $17.30 |
||
|
29
|
29
88211-79060-000
Protector, water valve
FROM 88211-79002 |
88211-79060-000 |
— | ||
|
30
|
30
02142-06128-000
Bolt
|
02142-06128-000 |
— | ||
| replacement | |||||
|
30
|
30
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
