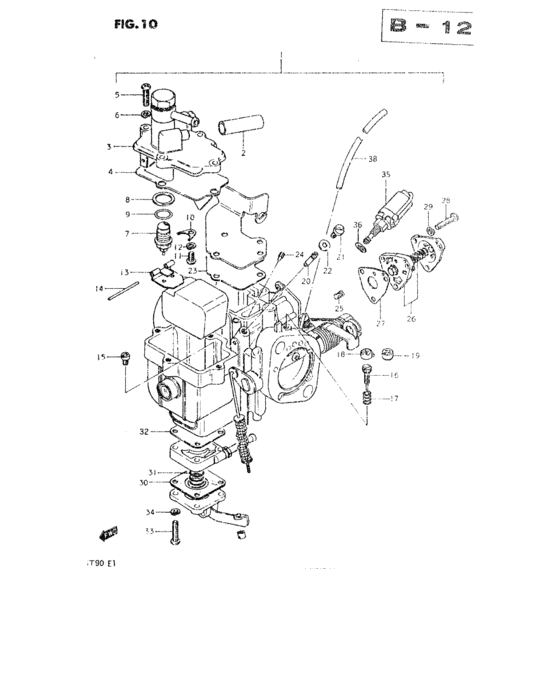

Carburetor (CARBURETOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13200-79221-000
Carburetor assy
|
13200-79221-000 |
— | ||
| replacement | |||||
|
1
|
1
13200-79251-000
CARBURETOR ASSY
|
13200-79251-000 |
— | ||
|
1
|
1
13200-79231-000
Carburetor assy
China |
13200-79231-000 |
— | ||
|
1
|
1
13200-79240-000
Carburetor assy
Finland(IN USE PCV TYPE) |
13200-79240-000 |
— | ||
|
1
|
1
13200-79250-000
Carburetor assy
TYPE 3:Australia |
13200-79250-000 |
— | ||
| replacement | |||||
|
1
|
1
13200-79251-000
CARBURETOR ASSY
TYPE 3:Australia |
13200-79251-000 |
— | ||
|
2
|
2
13683-73000-000
Hose
|
13683-73000-000 |
— | ||
| replacements | |||||
|
2
|
2
09352-60103-600
HOSE(6X10X600)
|
09352-60103-600 |
— | ||
|
2
|
2
09352-60103-300
Cover, oil hose
|
09352-60103-300 |
— | ||
|
2
|
2
09352-60104-600 Hose(6X10X600) |
09352-60104-600 |
from US $12.12 |
||
|
3
|
3
13690-79100-000
Cover, float chamber
|
13690-79100-000 |
— | ||
|
4
|
4
13251-73001-000
Gasket
|
13251-73001-000 |
— | ||
|
5
|
5
02112-04168-000
Screw
|
02112-04168-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0416A-000 SCREW |
02112-0416A-000 |
from US $0.68 |
||
|
6
|
6
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
7
|
7
13370-79100-000
Valve assy, needle
|
13370-79100-000 |
— | ||
| replacement | |||||
|
7
|
7
13370-792T0-000
Valve set,needle
|
13370-792T0-000 |
— | ||
|
8
|
8
13378-73000-000
ワッシャ
|
13378-73000-000 |
— | ||
|
9
|
9
13374-73000-000
O-RING
|
13374-73000-000 |
— | ||
|
10
|
10
13373-39110-000 PLATE |
13373-39110-000 |
from US $3.97 |
||
|
11
|
11
02112-04068-000
Screw
|
02112-04068-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
12
|
12
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
13
|
13
13250-73000-000
Float
|
13250-73000-000 |
— | ||
| replacement | |||||
|
13
|
13
13250-730T0-000
Float set
|
13250-730T0-000 |
— | ||
|
14
|
14
13254-73000-000
Pin, float
|
13254-73000-000 |
— | ||
|
15
|
15
09491-20010-000
Jet, main (100)
|
09491-20010-000 |
— | ||
| replacements | |||||
|
15
|
15
09491-20019-000 JET,MAIN(100)Jet, main (#100) |
09491-20019-000 |
from US $9.92 |
||
|
15
|
15
09491-20022-000 JET,MAIN,100 |
09491-20022-000 |
from US $5.67 |
||
|
15
|
15
09491-20016-000
Jet,main(#101.3)
Finland(IN USE PCV TYPE) |
09491-20016-000 |
— | ||
|
16
|
16
13269-61010-000
Screw, pilot air
|
13269-61010-000 |
— | ||
| replacement | |||||
|
16
|
16
13270-610T0-000
New Genuine Part
|
13270-610T0-000 |
— | ||
|
17
|
17
13271-96110-000 SPRINGSpring, air screw FROM 13271-51010 |
13271-96110-000 |
from US $2.65 |
||
|
18
|
18
13699-61010-000
Cap
|
13699-61010-000 |
— | ||
|
19
|
19
13699-77000-000
キャップ,アイドルリミッタ
|
13699-77000-000 |
— | ||
|
20
|
20
09492-52001-000
Jet, pilot
|
09492-52001-000 |
— | ||
| replacements | |||||
|
20
|
20
09492-60012-000
JET,AIR(60)
|
09492-60012-000 |
— | ||
|
20
|
20
09492-52005-000
Jet,pilot
|
09492-52005-000 |
— | ||
|
20
|
20
09492-55006-000
Jet, pilot
Finland(IN USE PCV TYPE) |
09492-55006-000 |
— | ||
|
21
|
21
13605-73000-000 SCREW |
13605-73000-000 |
from US $7.69 |
||
|
22
|
22
13291-41640-000
Washer
|
13291-41640-000 |
— | ||
| replacement | |||||
|
22
|
22
13606-18E00-000 WASHERLock washer |
13606-18E00-000 |
from US $2.39 |
||
|
23
|
23
13212-73000-000
Gasket
|
13212-73000-000 |
— | ||
|
24
|
24
09493-32004-000
Jet, air
|
09493-32004-000 |
— | ||
| replacement | |||||
|
24
|
24
09493-32005-000
New Genuine Part
|
09493-32005-000 |
— | ||
|
24
|
24
09493-28007-000
Jet, pilot air (1.3)
Finland(IN USE PCV TYPE) |
09493-28007-000 |
— | ||
| replacement | |||||
|
24
|
24
09493-28006-000 JET,PILOT AIR,1.4Finland(IN USE PCV TYPE) |
09493-28006-000 |
from US $10.56 |
||
|
25
|
25
09492-60007-000
Jet, pilot (60)
|
09492-60007-000 |
— | ||
| replacement | |||||
|
25
|
25
09492-60012-000
JET,AIR(60)
|
09492-60012-000 |
— | ||
|
25
|
25
09492-50008-000 JET,PILOT(50)Jet, pilot (#50) Finland(IN USE PCV TYPE) |
09492-50008-000 |
from US $6.40 |
||
|
26
|
26
13435-79100-000
BODY ASSY,ENRICH VALVE
|
13435-79100-000 |
— | ||
|
27
|
27
13467-37010-000
Gasket,enrichment
|
13467-37010-000 |
— | ||
|
28
|
28
02112-04258-000
Screw
|
02112-04258-000 |
— | ||
| replacement | |||||
|
28
|
28
02112-0425B-000 SCREW |
02112-0425B-000 |
from US $0.80 |
||
|
29
|
29
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
29
|
29
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
30
|
30
13491-37010-000
DIAPHRAGM
|
13491-37010-000 |
— | ||
|
31
|
31
13494-37010-000 SPRING,ACCEL PUMP |
13494-37010-000 |
US $1.47 |
||
|
32
|
32
13495-77000-000
Gasket
|
13495-77000-000 |
— | ||
|
33
|
33
02112-04258-000
Screw
|
02112-04258-000 |
— | ||
| replacement | |||||
|
33
|
33
02112-0425B-000 SCREW |
02112-0425B-000 |
from US $0.80 |
||
|
34
|
34
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
34
|
34
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
35
|
35
13610-79110-000
Solenoid
China |
13610-79110-000 |
— | ||
| replacement | |||||
|
35
|
35
13260-797T0-000 SOLENOID SETChina |
13260-797T0-000 |
US $97.28 |
||
|
36
|
36
13249-31210-000
WASHER
China |
13249-31210-000 |
— | ||
| replacement | |||||
|
36
|
36
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) China |
09168-08016-000 |
from US $1.22 |
||
|
37
|
37
13200-79810-000
Gasket set, carburetor
INC.REF.NO.4/9/23/27/30/31/32 |
13200-79810-000 |
— | ||
| replacement | |||||
|
37
|
37
13380-792T1-000
GASKET SET
INC.REF.NO.4/9/23/27/30/31/32 |
13380-792T1-000 |
— | ||
|
38
|
38
09343-03027-000
Hose, vaccum
CARBURETOR TO DISTRIBUTOR |
09343-03027-000 |
— | ||
| replacements | |||||
|
38
|
38
09355-35754-00B
HOSE(3.5X7.5X2000)
CARBURETOR TO DISTRIBUTOR |
09355-35754-00B |
— | ||
|
38
|
38
09355-35006-00B Hose(3.5X7.5X2000)CARBURETOR TO DISTRIBUTOR |
09355-35006-00B |
US $28.80 |
||
