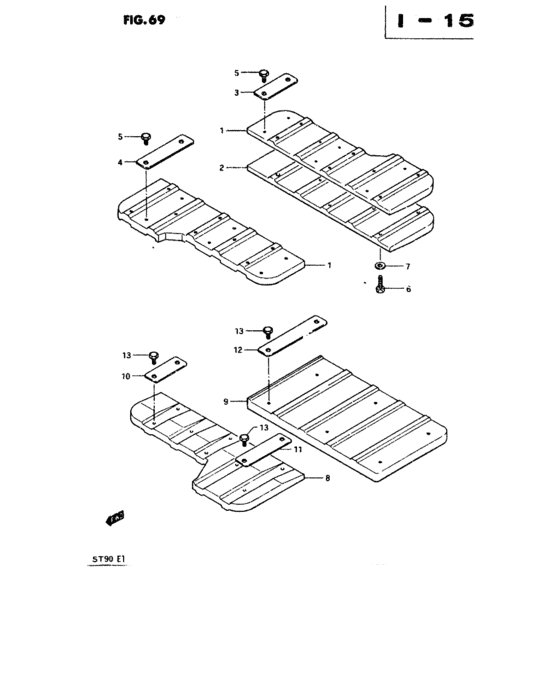

Chassis weight (Switzerland) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57341-79280-000
Weight, rear chassis front
|
57341-79280-000 |
— | ||
|
2
|
2
57342-79280-000
Weight, rear chassis lower
|
57342-79280-000 |
— | ||
|
3
|
3
57346-79280-000
Reinforcement, no.1
|
57346-79280-000 |
— | ||
|
4
|
4
57347-79280-000
Reinforcement, no.2
|
57347-79280-000 |
— | ||
|
5
|
5
57345-79280-000
Bolt
|
57345-79280-000 |
— | ||
|
6
|
6
01107-08408-000
Bolt
|
01107-08408-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0840A-000 Bolt |
01500-0840A-000 |
from US $0.96 |
||
|
7
|
7
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
8
|
8
57341-79280-000
Weight, rear chassis front
|
57341-79280-000 |
— | ||
|
9
|
9
57341-79700-000
Weight, rear chassis rear
|
57341-79700-000 |
— | ||
|
10
|
10
57346-79280-000
Reinforcement, no.1
|
57346-79280-000 |
— | ||
|
11
|
11
57347-79280-000
Reinforcement, no.2
|
57347-79280-000 |
— | ||
|
12
|
12
57348-79280-000
Reinforcement, no.3
|
57348-79280-000 |
— | ||
|
13
|
13
57345-79280-000
Bolt
|
57345-79280-000 |
— | ||
