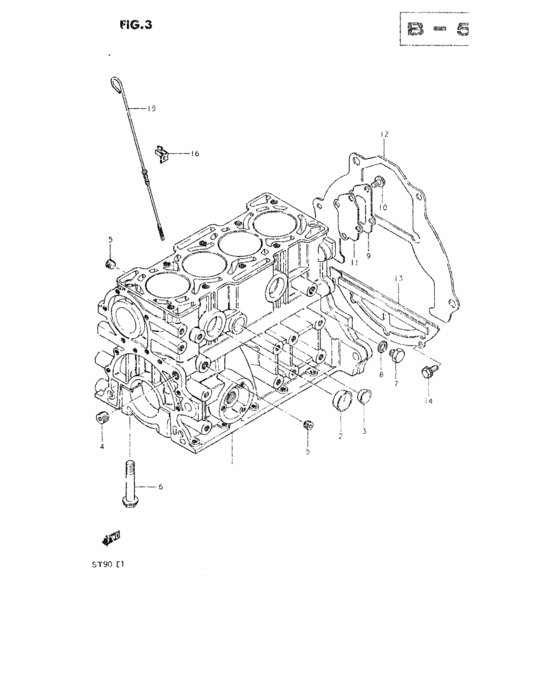

Cylinder (CYLINDER) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-73003-000
Cylinder assy
TO 11200-73004 |
11200-73003-000 |
— | ||
| replacements | |||||
|
1
|
1
11200-73005-000
CYLINDER ASSY
TO 11200-73004 |
11200-73005-000 |
— | ||
|
1
|
1
04211-13149-000 PINTO 11200-73004 |
04211-13149-000 |
from US $1.28 |
||
|
1
|
1
09116-10032-000 BOLT(10X120)TO 11200-73004 |
09116-10032-000 |
from US $7.85 |
||
|
1
|
1
09206-13011-000
ノックピン,10.4X13X14
TO 11200-73004 |
09206-13011-000 |
— | ||
|
1
|
1
09100-10099-000
Engine mount bo
TO 11200-73004 |
09100-10099-000 |
— | ||
|
1
|
1
11200-73004-000
Cylinder assy
E.NO.F8A-210577~ |
11200-73004-000 |
— | ||
| replacements | |||||
|
1
|
1
11200-73005-000
CYLINDER ASSY
E.NO.F8A-210577~ |
11200-73005-000 |
— | ||
|
1
|
1
04211-13149-000 PINE.NO.F8A-210577~ |
04211-13149-000 |
from US $1.28 |
||
|
1
|
1
09116-10032-000 BOLT(10X120)E.NO.F8A-210577~ |
09116-10032-000 |
from US $7.85 |
||
|
1
|
1
09206-13011-000
ノックピン,10.4X13X14
E.NO.F8A-210577~ |
09206-13011-000 |
— | ||
|
1
|
1
09100-10099-000
Engine mount bo
E.NO.F8A-210577~ |
09100-10099-000 |
— | ||
|
2
|
2
09241-30002-000
プラグ,OD:30
|
09241-30002-000 |
— | ||
| replacement | |||||
|
2
|
2
09241-30010-000 PLUG |
09241-30010-000 |
US $2.40 |
||
|
3
|
3
09241-20002-000
プラグ
|
09241-20002-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
4
|
4
09246-06001-000 PLUG(1/4PT,H:7.5) |
09246-06001-000 |
US $12.50 |
||
|
5
|
5
09246-05001-000
Plug, oil gallery
|
09246-05001-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.42 |
||
|
6
|
6
01517-10658-000
Bolt
|
01517-10658-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-10657-000 Bolt |
01550-10657-000 |
from US $7.31 |
||
|
6
|
6
01517-10608-000
New Genuine Part
|
01517-10608-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-10607-000 Bolt |
01550-10607-000 |
from US $4.88 |
||
|
7
|
7
09100-10004-000
Muffler drain p
~E.NO.F8A-210576 |
09100-10004-000 |
— | ||
| replacement | |||||
|
7
|
7
09128-10002-000 BOLT(10X9)~E.NO.F8A-210576 |
09128-10002-000 |
from US $1.28 |
||
|
8
|
8
09168-10014-000
GASKET(10.5X16X1.4)
~E.NO.F8A-210576 |
09168-10014-000 |
— | ||
|
9
|
9
11221-73000-000 PLATE,CYLINDER BLOCK |
11221-73000-000 |
US $2.72 |
||
|
10
|
10
01517-06108-000
Bolt 6x10 hexagon
|
01517-06108-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-06107-000 BOLT |
01550-06107-000 |
from US $0.80 |
||
|
11
|
11
11229-73000-000 GASKET,CYL BLOCK PLATE |
11229-73000-000 |
US $1.76 |
||
|
12
|
12
11311-79200-000 PLATE,CLUTCH HSG UPPER |
11311-79200-000 |
US $65.60 |
||
|
13
|
13
11320-79100-000
Plate, clutch housing lower
|
11320-79100-000 |
— | ||
| replacement | |||||
|
13
|
13
11320-73001-000 PLATE,CLUTCH HSG LOWER |
11320-73001-000 |
US $6.77 |
||
|
14
|
14
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
15
|
15
16910-79110-000 GAUGE,OIL LEVELFROM 16910-79100 |
16910-79110-000 |
from US $9.43 |
||
|
16
|
16
16915-73000-000
SUPPORTER,OIL LEVEL GAUGE
|
16915-73000-000 |
— | ||
