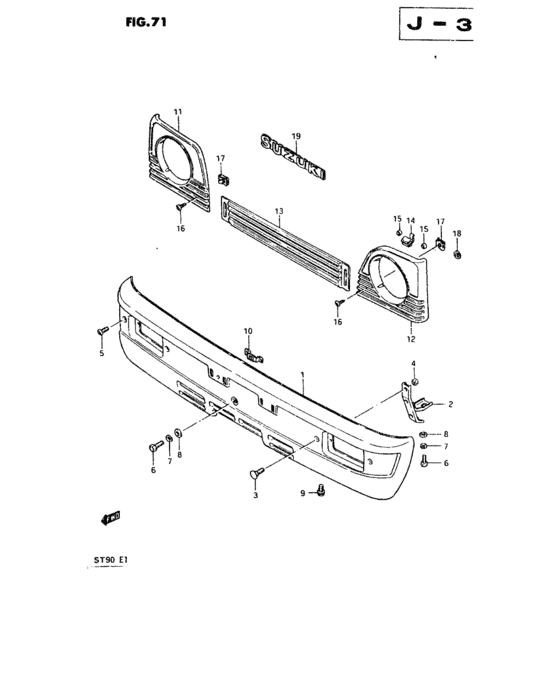

Front bumper (TYPE 3) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57411-79010-281
BAR,FR BUMPER
|
57411-79010-281 |
— | ||
|
2
|
2
57420-79001-000
Stay, front bumper
|
57420-79001-000 |
— | ||
| replacement | |||||
|
2
|
2
57420-79002-000
STAY,FRONT BUMPER
|
57420-79002-000 |
— | ||
|
3
|
3
57439-79001-000
ボルト,バンパ
|
57439-79001-000 |
— | ||
| replacement | |||||
|
3
|
3
57439-79003-000 BOLT,FR BUMPER |
57439-79003-000 |
US $1.92 |
||
|
4
|
4
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
4
|
4
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
5
|
5
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
6
|
6
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
7
|
7
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
8
|
8
09160-08010-000 Washer (8.2x20x1.6) |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
8
|
8
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
9
|
9
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
10
|
10
57515-79001-000
RETAINER,LICENSE PLATE
|
57515-79001-000 |
— | ||
|
11
|
11
61111-79001-16K
Grille, headlamp rh
|
61111-79001-16K |
— | ||
|
12
|
12
61121-79001-16K
Grille, headlamp lh
|
61121-79001-16K |
— | ||
|
13
|
13
61141-79011-16K
Grille, front center
FROM 61141-79001-16K |
61141-79011-16K |
— | ||
| replacement | |||||
|
13
|
13
61141-79011-000 GRILLE,FR CENTERFROM 61141-79001-16K |
61141-79011-000 |
US $39.01 |
||
|
14
|
14
61151-79000-000 SPRING,FR GRILLE |
61151-79000-000 |
US $2.24 |
||
|
15
|
15
61155-79000-000
CUSHION,FR GRILLE,UPPER
L:22->6 |
61155-79000-000 |
— | ||
| replacements | |||||
|
15
|
15
44420-44AR0-000 HOSE SET,FUELL:22->6 |
44420-44AR0-000 |
US $11.95 |
||
|
15
|
15
61155-79010-000 Cushion,fr Grille,upperL:22->6 |
61155-79010-000 |
US $0.92 |
||
|
16
|
16
03212-05105-000
Screw, body
|
03212-05105-000 |
— | ||
| replacement | |||||
|
16
|
16
03211-0510C-000 SCREW |
03211-0510C-000 |
US $12.50 |
||
|
17
|
17
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
18
|
18
09148-04010-000 NUTEcrou Germany,Austria |
09148-04010-000 |
from US $1.12 |
||
|
19
|
19
77814-80000-000
Emblem, suzuki
|
77814-80000-000 |
— | ||
| replacement | |||||
|
19
|
19
77814-80000-8VP EMBLEM,SUZUKI |
77814-80000-8VP |
US $56 |
||
