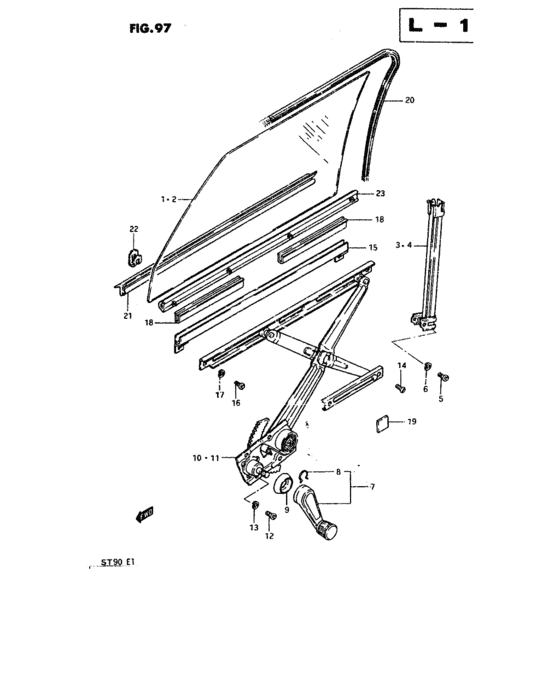

Front door glass (FRONT DOOR GLASS) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79631-79020-000
Glass, window rh
TO 79631-79131, USED WITH,78710-78000 (2PCS.) |
79631-79020-000 |
— | ||
| replacements | |||||
|
1
|
1
78710-78000-000 CHANNEL,DR GLASS BOTTOMTO 79631-79131, USED WITH,78710-78000 (2PCS.) |
78710-78000-000 |
US $15.12 |
||
|
1
|
1
79631-791V0-000 GLASS,DR,RTO 79631-79131, USED WITH,78710-78000 (2PCS.) |
79631-791V0-000 |
US $155.30 |
||
|
1
|
1
79631-79131-000
Glass, window rh
|
79631-79131-000 |
— | ||
| replacement | |||||
|
1
|
1
79631-791V0-000 GLASS,DR,R |
79631-791V0-000 |
US $155.30 |
||
|
2
|
2
79636-79020-000
Glass, window lh
TO 79636-79131, USED WITH,78710-78000 (2PCS.) |
79636-79020-000 |
— | ||
| replacements | |||||
|
2
|
2
78710-78000-000 CHANNEL,DR GLASS BOTTOMTO 79636-79131, USED WITH,78710-78000 (2PCS.) |
78710-78000-000 |
US $15.12 |
||
|
2
|
2
79636-791V0-000
GLASS,FR DR,L(GREEN)
TO 79636-79131, USED WITH,78710-78000 (2PCS.) |
79636-791V0-000 |
— | ||
|
2
|
2
79636-79131-000
Glass,door lh
|
79636-79131-000 |
— | ||
| replacement | |||||
|
2
|
2
79636-791V0-000
GLASS,FR DR,L(GREEN)
|
79636-791V0-000 |
— | ||
|
3
|
3
76530-79001-000 SASH,FRONT DOOR REAR,RFROM 76530-79000 |
76530-79001-000 |
US $11.92 |
||
|
4
|
4
76580-79001-000 SASH,FRONT DOOR REAR,LFROM 76580-79000 |
76580-79001-000 |
US $11.92 |
||
|
5
|
5
02112-06088-000
Screw
|
02112-06088-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-06087-000 SCREW |
02112-06087-000 |
from US $0.77 |
||
|
6
|
6
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
7
|
7
78460-78002-281
ハンドル,レギュレータ(ブラック)
TYPE 1,TYPE 2,FROM 78460-78001-281 |
78460-78002-281 |
— | ||
| replacement | |||||
|
7
|
7
78460-78003-281 HANDLE,DR WINDOW RGLTRTYPE 1,TYPE 2,FROM 78460-78001-281 |
78460-78003-281 |
US $26.60 |
||
|
7
|
7
78460-78002-49F
Handle, regulator
TYPE 3,FROM 78460-78001-49F |
78460-78002-49F |
— | ||
| replacement | |||||
|
7
|
7
78460-78003-49F
HANDLE,DR WINDOW RGLTR
TYPE 3,FROM 78460-78001-49F |
78460-78003-49F |
— | ||
|
8
|
8
78463-78000-000 SNAP |
78463-78000-000 |
US $1.60 |
||
|
9
|
9
78472-78000-281
エスカッション,レギュレータハンドル(ブラック)
TYPE 1,TYPE 2 |
78472-78000-281 |
— | ||
| replacement | |||||
|
9
|
9
78472-78001-281 ESCUTCHEON,DR WDO RGLTR HDLTYPE 1,TYPE 2 |
78472-78001-281 |
US $2.08 |
||
|
9
|
9
78472-78000-49F
Escutcheon, handle
TYPE 3 |
78472-78000-49F |
— | ||
| replacement | |||||
|
9
|
9
78472-78001-49F
Escutcheon,dr wdo rgltr hdl(be
TYPE 3 |
78472-78001-49F |
— | ||
|
10
|
10
78501-79000-000
Regulator, window rh
TO 78501-79001, USED WITH,78710-78000,USED TO REF.NO.15-1 |
78501-79000-000 |
— | ||
| replacements | |||||
|
10
|
10
78501-79001-000 REGULATOR ASSY,RTO 78501-79001, USED WITH,78710-78000,USED TO REF.NO.15-1 |
78501-79001-000 |
US $110.21 |
||
|
10
|
10
78710-78000-000 CHANNEL,DR GLASS BOTTOMTO 78501-79001, USED WITH,78710-78000,USED TO REF.NO.15-1 |
78710-78000-000 |
US $15.12 |
||
|
10
|
10
78501-79001-000 REGULATOR ASSY,RUSED TO REF.NO.15-2 |
78501-79001-000 |
US $110.21 |
||
|
11
|
11
78502-79000-000
Regulator, window lh
TO 78502-79001, USED WITH,78710-78000,USED TO REF.NO.15-1 |
78502-79000-000 |
— | ||
| replacements | |||||
|
11
|
11
78502-79001-000 REGULATOR ASSY,LTO 78502-79001, USED WITH,78710-78000,USED TO REF.NO.15-1 |
78502-79001-000 |
US $110.21 |
||
|
11
|
11
78710-78000-000 CHANNEL,DR GLASS BOTTOMTO 78502-79001, USED WITH,78710-78000,USED TO REF.NO.15-1 |
78710-78000-000 |
US $15.12 |
||
|
11
|
11
78502-79001-000 REGULATOR ASSY,LUSED TO REF.NO.15-2 |
78502-79001-000 |
US $110.21 |
||
|
12
|
12
02112-06088-000
Screw
|
02112-06088-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-06087-000 SCREW |
02112-06087-000 |
from US $0.77 |
||
|
13
|
13
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
14
|
14
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
15
|
15
78750-69023-000
Channel,door window glass
FIT PITCH:435 |
78750-69023-000 |
— | ||
|
15
|
15
78710-78000-000 CHANNEL,DR GLASS BOTTOMFIT PITCH:446 |
78710-78000-000 |
US $15.12 |
||
|
16
|
16
02112-06088-000
Screw
|
02112-06088-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-06087-000 SCREW |
02112-06087-000 |
from US $0.77 |
||
|
17
|
17
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
18
|
18
78811-69000-000
Rubber, bottom channel
GLASS T:4.0 |
78811-69000-000 |
— | ||
| replacement | |||||
|
18
|
18
78812-78400-000 RUBBER,CHANNELGLASS T:4.0 |
78812-78400-000 |
US $2.56 |
||
|
18
|
18
76811-78400-000
Rubber, bottom channel
GLASS T:3.5 |
76811-78400-000 |
— | ||
|
19
|
19
78821-67000-000 PAD |
78821-67000-000 |
from US $2.17 |
||
|
20
|
20
78831-79500-000 RUN,FR DOOR GLASSFROM 78831-79000 |
78831-79500-000 |
US $38 |
||
|
21
|
21
78911-79000-000 WEATHERSTRIP,FR DR OUT |
78911-79000-000 |
US $13.68 |
||
|
22
|
22
78991-78000-000
クリップ,スカルプ
|
78991-78000-000 |
— | ||
| replacement | |||||
|
22
|
22
78991-78001-000 CLIP,DR OUT WEATHERSTRIP |
78991-78001-000 |
from US $1.52 |
||
|
23
|
23
78950-79000-000 SCRAPE,DOOR INSIDE |
78950-79000-000 |
US $13.12 |
||
