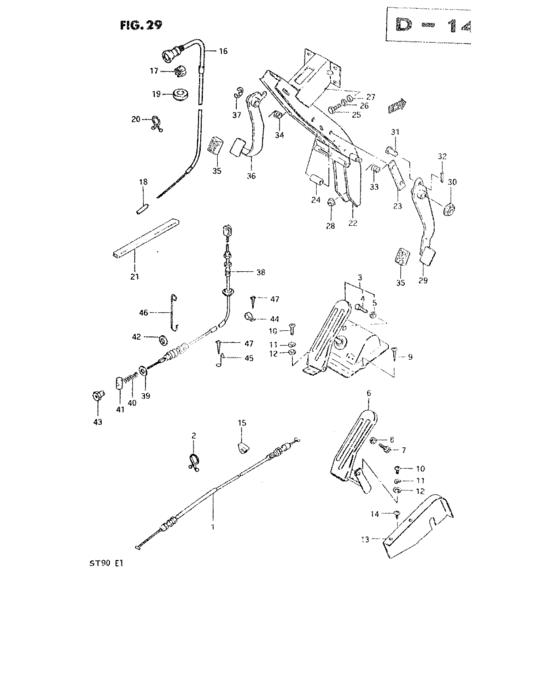

Pedal - cable (PEDAL - CABLE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-79102-000
Cable assy, accelerator
RHD |
15910-79102-000 |
— | ||
| replacement | |||||
|
1
|
1
15910-79203-000 CABLE ASSY,ACCELERATORRHD |
15910-79203-000 |
US $30.36 |
||
|
1
|
1
15910-79202-000
Cable assy, accelerator
LHD, FROM 15910-79200 |
15910-79202-000 |
— | ||
| replacement | |||||
|
1
|
1
15910-79203-000 CABLE ASSY,ACCELERATORLHD, FROM 15910-79200 |
15910-79203-000 |
US $30.36 |
||
|
2
|
2
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) LHD |
09408-00012-000 |
from US $3.37 |
||
|
3
|
3
49400-79000-000
Pedal assy, accelerator
TYPE 1,TYPE 2:RHD |
49400-79000-000 |
— | ||
| replacement | |||||
|
3
|
3
49400-79001-000 PEDAL ASSY,ACCELERATORTYPE 1,TYPE 2:RHD |
49400-79001-000 |
US $27.42 |
||
|
3
|
3
49400-79001-000 PEDAL ASSY,ACCELERATORTYPE 3:RHD |
49400-79001-000 |
US $27.42 |
||
|
4
|
4
09100-06055-000 BOLT(6X25)Bolt RHD |
09100-06055-000 |
from US $3.25 |
||
|
5
|
5
08310-11068-000
Nut
RHD |
08310-11068-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-00067-000 NUTRHD |
08310-00067-000 |
from US $0.76 |
||
|
6
|
6
49410-79010-000
Pedal assy, accelerator
TYPE 1,TYPE 2:LHD |
49410-79010-000 |
— | ||
| replacement | |||||
|
6
|
6
49410-79011-000
PEDAL,ACCELERATOR
TYPE 1,TYPE 2:LHD |
49410-79011-000 |
— | ||
|
6
|
6
49410-79011-000
PEDAL,ACCELERATOR
TYPE 3:LHD |
49410-79011-000 |
— | ||
|
7
|
7
09100-06055-000 BOLT(6X25)Bolt LHD |
09100-06055-000 |
from US $3.25 |
||
|
8
|
8
08310-11068-000
Nut
LHD |
08310-11068-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-00067-000 NUTLHD |
08310-00067-000 |
from US $0.76 |
||
|
9
|
9
03141-05108-000
スクリュ
|
03141-05108-000 |
— | ||
| replacement | |||||
|
9
|
9
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
10
|
10
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
11
|
11
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
12
|
12
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
13
|
13
66511-79060-000
COVER,ACCEL WIRE,L
LHD |
66511-79060-000 |
— | ||
|
14
|
14
03141-05108-000
スクリュ
LHD |
03141-05108-000 |
— | ||
| replacement | |||||
|
14
|
14
03142-0510B-000 SCREWLHD |
03142-0510B-000 |
US $0.80 |
||
|
15
|
15
49451-79000-000 SEAL,ACCELERATOR CABLE |
49451-79000-000 |
US $1.62 |
||
|
16
|
16
15930-79201-000
Cable assy, choke
RHD, FROM 15930-79200 |
15930-79201-000 |
— | ||
| replacement | |||||
|
16
|
16
15930-76010-000 CABLE ASSY,STARTERRHD, FROM 15930-79200 |
15930-76010-000 |
US $46.74 |
||
|
16
|
16
15930-79211-000
Cable assy, choke
LHD, FROM 15930-79210 |
15930-79211-000 |
— | ||
| replacement | |||||
|
16
|
16
15930-7921V-000
CABLE ASSY,CHOKE
LHD, FROM 15930-79210 |
15930-7921V-000 |
— | ||
|
17
|
17
15944-51013-000 NUT |
15944-51013-000 |
US $1.03 |
||
|
18
|
18
15938-52012-000 BOOT |
15938-52012-000 |
US $1.84 |
||
|
19
|
19
09308-04005-000
GROMMET
|
09308-04005-000 |
— | ||
|
20
|
20
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) TYPE 1 |
09408-00012-000 |
from US $3.37 |
||
|
20
|
20
09408-00031-000
CLIP
TYPE 2,TYPE 3 |
09408-00031-000 |
— | ||
|
21
|
21
57279-67000-000 PROTECTOR |
57279-67000-000 |
US $1.52 |
||
|
22
|
22
49710-79000-000
Bracket, pedal
TO 49710-79001, USED WITH,49810-79001,TYPE 1,USED TO,REF.NO.36-1 |
49710-79000-000 |
— | ||
| replacement | |||||
|
22
|
22
49810-79001-000 PEDAL,CLUTCH NO STOPPERTO 49710-79001, USED WITH,49810-79001,TYPE 1,USED TO,REF.NO.36-1 |
49810-79001-000 |
US $30.36 |
||
|
22
|
22
49710-79001-000
Bracket, pedal
TYPE 1,TYPE 2,USED TO REF.NO.36-2 |
49710-79001-000 |
— | ||
|
22
|
22
49710-79100-000
Bracket, pedal
TYPE 3 |
49710-79100-000 |
— | ||
|
23
|
23
49722-79000-000
Plate, pedal shaft
TYPE 1,TYPE 2 |
49722-79000-000 |
— | ||
| replacement | |||||
|
23
|
23
49722-79101-000 PLATE,PEDAL SHAFTTYPE 1,TYPE 2 |
49722-79101-000 |
US $2.83 |
||
|
23
|
23
49722-79100-000
Plate, pedal shaft
TYPE 3 |
49722-79100-000 |
— | ||
| replacement | |||||
|
23
|
23
49722-79101-000 PLATE,PEDAL SHAFTTYPE 3 |
49722-79101-000 |
US $2.83 |
||
|
24
|
24
09180-10056-000 SPACER(10.1X13X47.5) |
09180-10056-000 |
US $17.70 |
||
|
25
|
25
09100-06064-000 BOLT(6X18) |
09100-06064-000 |
from US $1.22 |
||
|
26
|
26
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
27
|
27
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
27
|
27
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
28
|
28
08316-26086-000
Nut
|
08316-26086-000 |
— | ||
| replacements | |||||
|
28
|
28
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
28
|
28
08316-20087-000 NUT |
08316-20087-000 |
from US $3.77 |
||
|
29
|
29
49610-79000-000
Pedal, brake
|
49610-79000-000 |
— | ||
|
30
|
30
08316-26106-000
Nut
|
08316-26106-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
31
|
31
09200-08006-000 PIN |
09200-08006-000 |
US $12.10 |
||
|
32
|
32
04111-25208-000
25 x 20 cotter
|
04111-25208-000 |
— | ||
| replacement | |||||
|
32
|
32
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
33
|
33
09448-30004-000 SPRING |
09448-30004-000 |
US $28.70 |
||
|
34
|
34
09448-29002-000
スプリング
|
09448-29002-000 |
— | ||
| replacement | |||||
|
34
|
34
09448-29004-000 SPRING |
09448-29004-000 |
from US $2.12 |
||
|
35
|
35
49751-79001-000
Pad, pedal
FROM 49751-79000 |
49751-79001-000 |
— | ||
| replacement | |||||
|
35
|
35
49751-58J00-000 PAD,PEDALFROM 49751-79000 |
49751-58J00-000 |
from US $2.59 |
||
|
36
|
36
49810-79000-000
Pedal, clutch
(WITH PEDAL BRACKET STOPPER),TYPE 1 |
49810-79000-000 |
— | ||
| replacement | |||||
|
36
|
36
49810-79001-000 PEDAL,CLUTCH NO STOPPER(WITH PEDAL BRACKET STOPPER),TYPE 1 |
49810-79001-000 |
US $30.36 |
||
|
36
|
36
49810-79001-000 PEDAL,CLUTCH NO STOPPERTYPE 1,TYPE 2,TYPE 3 |
49810-79001-000 |
US $30.36 |
||
|
37
|
37
08332-11108-000
E ring
|
08332-11108-000 |
— | ||
| replacement | |||||
|
37
|
37
08332-1110A-000 E RING |
08332-1110A-000 |
from US $0.96 |
||
|
38
|
38
23710-79150-000
Cable assy, clutch
TO 23710-79112, USED WITH,23915-79000,RHD, USED REF.NO.44-1 |
23710-79150-000 |
— | ||
| replacement | |||||
|
38
|
38
23710-79212-000 CABLE ASSY,CLUTCHTO 23710-79112, USED WITH,23915-79000,RHD, USED REF.NO.44-1 |
23710-79212-000 |
US $37.17 |
||
|
38
|
38
23710-79112-000
Cable assy, clutch
RHD, USED REF.NO.44-2 FROM,23710-79151 |
23710-79112-000 |
— | ||
| replacement | |||||
|
38
|
38
23710-79212-000 CABLE ASSY,CLUTCHRHD, USED REF.NO.44-2 FROM,23710-79151 |
23710-79212-000 |
US $37.17 |
||
|
38
|
38
23710-79220-000
Cable assy, clutch
LHD |
23710-79220-000 |
— | ||
| replacement | |||||
|
38
|
38
23710-79222-000 CABLE ASSY,CLUTCHLHD |
23710-79222-000 |
US $53.36 |
||
|
39
|
39
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
39
|
39
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
40
|
40
09440-08001-000
Spring
|
09440-08001-000 |
— | ||
| replacement | |||||
|
40
|
40
09440-08026-000 SPRING |
09440-08026-000 |
from US $1.22 |
||
|
41
|
41
09209-13005-000
Pin
FROM 09209-13003 |
09209-13005-000 |
— | ||
| replacement | |||||
|
41
|
41
09209-13018-000 PIN(13X18)FROM 09209-13003 |
09209-13018-000 |
from US $1.82 |
||
|
42
|
42
09320-09004-000 CUSHIONFrm rh cover cushion |
09320-09004-000 |
from US $1.98 |
||
|
43
|
43
09150-06009-000
Nut
FROM 09150-06001 |
09150-06009-000 |
— | ||
| replacement | |||||
|
43
|
43
09150-06010-000 NUTFROM 09150-06001 |
09150-06010-000 |
from US $1.44 |
||
|
44
|
44
09403-14402-000
CLAMP
|
09403-14402-000 |
— | ||
|
44
|
44
23915-79000-000
Clamp, no.1
|
23915-79000-000 |
— | ||
| replacement | |||||
|
44
|
44
09403-19407-000 CLAMP |
09403-19407-000 |
US $25.80 |
||
|
45
|
45
23917-79001-000
Clamp, no.2
FROM 23916-79000 |
23917-79001-000 |
— | ||
| replacement | |||||
|
45
|
45
23917-79002-000 CLAMP,CLUTCH CABLE,NO.2FROM 23916-79000 |
23917-79002-000 |
US $2.58 |
||
|
46
|
46
23917-79501-000
Clamp, no.3
FROM 23917-79500 |
23917-79501-000 |
— | ||
| replacement | |||||
|
46
|
46
23917-79502-000 CLAMP,CLUTCH CABLE,NO.3FROM 23917-79500 |
23917-79502-000 |
from US $1.83 |
||
|
47
|
47
03141-06128-000
Mold.inner fix.screw
|
03141-06128-000 |
— | ||
| replacement | |||||
|
47
|
47
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
