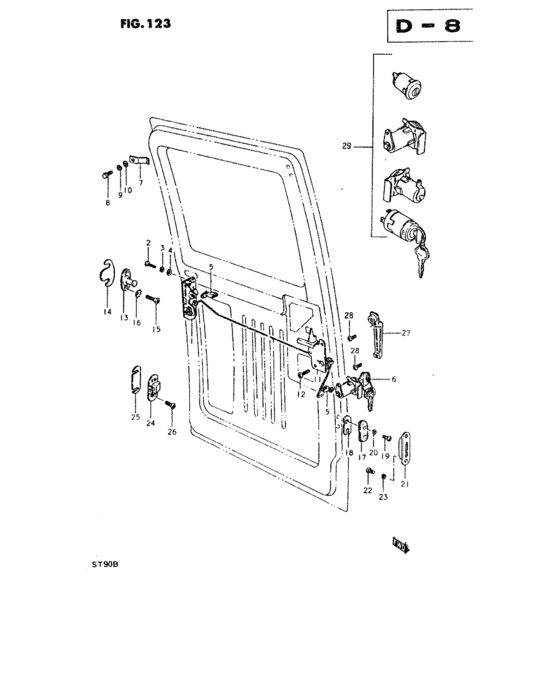

Rear door lock (REAR DOOR LOCK) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77104-79500-000 LOCK ASSY,RR DR,L |
77104-79500-000 |
US $53.73 |
||
|
2
|
2
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
3
|
3
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
4
|
4
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
5
|
5
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
6
|
6
77400-79820-000
Key cylinder assy
|
77400-79820-000 |
— | ||
|
7
|
7
68397-61300-000
SPRING,RR DOOR STOPPER
|
68397-61300-000 |
— | ||
|
8
|
8
01107-05108-000
Bolt
|
01107-05108-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0510B-000 Bolt |
01500-0510B-000 |
from US $0.80 |
||
|
9
|
9
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
10
|
10
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
11
|
11
77660-79300-000
Handle,rr door inside,l
|
77660-79300-000 |
— | ||
|
12
|
12
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
13
|
13
78130-79500-000 STRIKER,DOOR LOCK |
78130-79500-000 |
US $17 |
||
|
14
|
14
78199-79000-000 SPACER |
78199-79000-000 |
US $1.60 |
||
|
15
|
15
02122-08188-000
Screw
|
02122-08188-000 |
— | ||
| replacement | |||||
|
15
|
15
09126-08004-XC0 SCREW(8X18) |
09126-08004-XC0 |
US $13.20 |
||
|
16
|
16
08323-31088-000
Washer,lock
|
08323-31088-000 |
— | ||
| replacement | |||||
|
16
|
16
09163-08002-000 WASHER,LOCKRondelle |
09163-08002-000 |
US $7 |
||
|
17
|
17
77748-68000-000
Male, shut stopper front
|
77748-68000-000 |
— | ||
|
18
|
18
77898-61300-000
Spacer
|
77898-61300-000 |
— | ||
|
19
|
19
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
20
|
20
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
21
|
21
77758-68000-000
Female, shut stopper front
|
77758-68000-000 |
— | ||
|
22
|
22
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
22
|
22
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
23
|
23
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
24
|
24
78250-79500-000 SHUT STOPPER,REAR |
78250-79500-000 |
US $7.29 |
||
|
25
|
25
78282-79500-000
SPACER,SHUT STOPPER
|
78282-79500-000 |
— | ||
|
26
|
26
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
26
|
26
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
27
|
27
78330-79500-000
Handle, outside
|
78330-79500-000 |
— | ||
| replacement | |||||
|
27
|
27
78330-79600-000 HANDLE,OUTSIDE |
78330-79600-000 |
US $52.45 |
||
|
28
|
28
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
28
|
28
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
29
|
29
77400-79830-000
Key cylinder set
(IGNITION SWITCH & RH FRONT DOOR,LOCK & REAR DOOR LOCK & BACK DOOR,LOCK KEY CYLINDER) TYPE 1,TYPE,2:RHD |
77400-79830-000 |
— | ||
|
29
|
29
77400-79860-000
Key cylinder set
(IGNITION SWITCH & LH FRONT DOOR,LOCK & REAR DOOR LOCK & BACK DOOR,LOCK KEY CYLINDER) TYPE 1,TYPE,2:LHD |
77400-79860-000 |
— | ||
|
29
|
29
77401-79850-000
Key cylinder set
(IGNITION SWITCH & LH FRONT DOOR,LOCK & REAR DOOR LOCK & BACK DOOR,LOCK KEY CYLINDER) TYPE 3 |
77401-79850-000 |
— | ||
