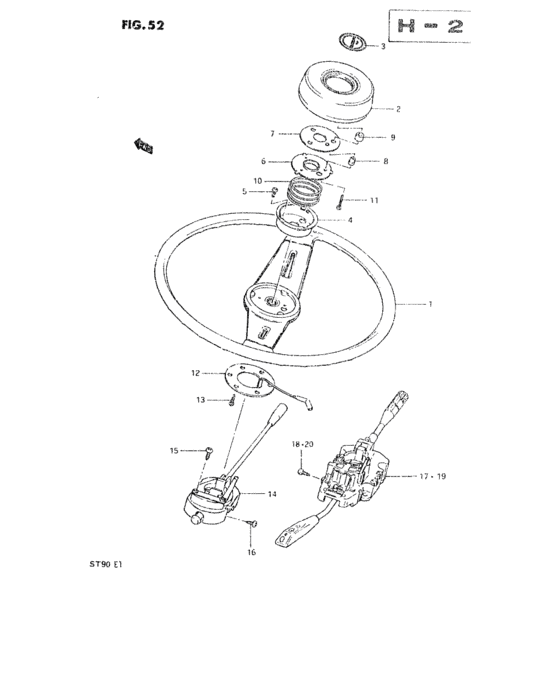

Steering wheel (TYPE 1,TYPE 2) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48110-78141-281
Wheel, steering
FROM 48111-78141-10C |
48110-78141-281 |
— | ||
| replacements | |||||
|
1
|
1
48100-79X00-281
Wheel assy,steering
FROM 48111-78141-10C |
48100-79X00-281 |
— | ||
|
1
|
1
48119-79000-281
ORNAMENT,STRG WHEEL
FROM 48111-78141-10C |
48119-79000-281 |
— | ||
|
2
|
2
48120-78100-000
Horn button
|
48120-78100-000 |
— | ||
|
3
|
3
48131-78000-000
Emblem
|
48131-78000-000 |
— | ||
|
4
|
4
48141-78100-000 CUP,HORN CONTACTFROM 48141-60031 |
48141-78100-000 |
US $13.44 |
||
|
5
|
5
02112-03068-000
Screw
|
02112-03068-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0306B-000 SCREW |
02112-0306B-000 |
from US $2.52 |
||
|
6
|
6
48142-60000-000 PLATE,HORN BUTTON SET |
48142-60000-000 |
US $2.40 |
||
|
7
|
7
48143-60000-000 PLATE,HORN CONTACT |
48143-60000-000 |
US $2.72 |
||
|
8
|
8
48144-60000-000 INSULATOR,CONTACT PLATE |
48144-60000-000 |
US $1.60 |
||
|
9
|
9
48145-60000-000 CUSHION,HORN CONTACT |
48145-60000-000 |
US $1.91 |
||
|
10
|
10
48151-70001-000
Spring, horn botton
|
48151-70001-000 |
— | ||
| replacement | |||||
|
10
|
10
48151-70010-000
SPRING,HORN CONTACT
|
48151-70010-000 |
— | ||
|
11
|
11
09131-03004-000
Screw
|
09131-03004-000 |
— | ||
| replacement | |||||
|
11
|
11
09132-03006-000
SCREW(3X20)
|
09132-03006-000 |
— | ||
|
12
|
12
48152-78100-000 RING,HORN BUTTON SLIPFROM 48152-60031 |
48152-78100-000 |
US $6.04 |
||
|
13
|
13
09131-03005-000
Screw
|
09131-03005-000 |
— | ||
| replacement | |||||
|
13
|
13
09132-03005-000 SCREW(3X10)Screw, pan head (3x10) |
09132-03005-000 |
US $8.80 |
||
|
14
|
14
37400-67020-000
Switch, turn signal & dimmer
TYPE 1 |
37400-67020-000 |
— | ||
|
14
|
14
37400-75111-000
SWITCH ASSY,TURN SIGNAL&DIMMER
TYPE 1, |
37400-75111-000 |
— | ||
|
14
|
14
37400-73300-000
Switch, turn signal & dimmer
TYPE 1,Switzerland,Belgium,Holland |
37400-73300-000 |
— | ||
|
15
|
15
03251-04108-000
Screw, no.1
TYPE 1 |
03251-04108-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0410A-000 SCREWTYPE 1 |
03241-0410A-000 |
from US $0.80 |
||
|
16
|
16
03141-04088-000
Screw, no.2
TYPE 1 |
03141-04088-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0408A-000 SCREWTYPE 1 |
03141-0408A-000 |
US $0.80 |
||
|
17
|
17
37400-79531-000
Switch, combination
TYPE 1,Germany |
37400-79531-000 |
— | ||
|
18
|
18
03141-04088-000
Screw, no.2
TYPE 1 Germany |
03141-04088-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0408A-000 SCREWTYPE 1 Germany |
03141-0408A-000 |
US $0.80 |
||
|
19
|
19
37400-79502-000
SWITCH ASSY,COMB
TYPE 2,RHD FROM 37400-79501 |
37400-79502-000 |
— | ||
|
19
|
19
37400-79522-000
SWITCH ASSY,COMB
TYPE 2,LHD FROM 37400-79521 |
37400-79522-000 |
— | ||
|
19
|
19
37400-79512-000
Switch, combination
TYPE 2,DEL:RHD,,V:4 FROM,37400-79511 |
37400-79512-000 |
— | ||
|
19
|
19
37400-79531-000
Switch, combination
TYPE 2,DEL:LHD,Finland,Switzerland,Belgium,Germany,Holland,Austria,Channel Islands |
37400-79531-000 |
— | ||
|
20
|
20
03141-04088-000
Screw, no.2
TYPE 2 |
03141-04088-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0408A-000 SCREWTYPE 2 |
03141-0408A-000 |
US $0.80 |
||
