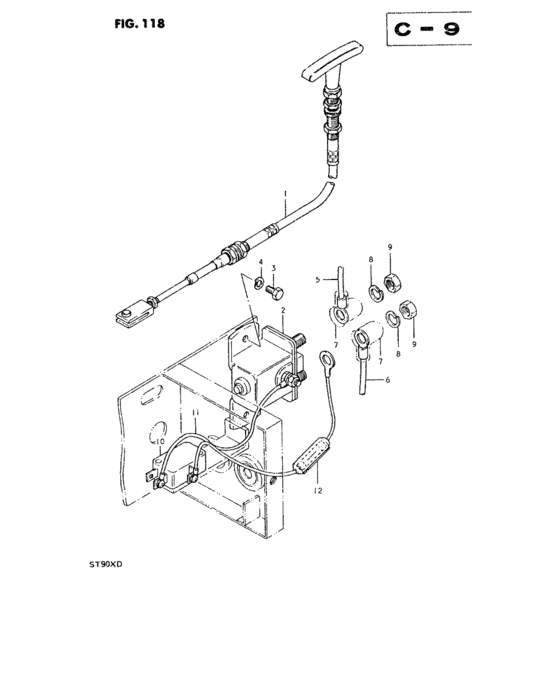

Switch (SWITCH) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
97850-79940-000
Cable assy, control
RHD |
97850-79940-000 |
— | ||
|
1
|
1
97850-79960-000
Cable assy, control
LHD |
97850-79960-000 |
— | ||
|
2
|
2
97821-67202-000
Switch assy
|
97821-67202-000 |
— | ||
|
3
|
3
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
4
|
4
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
5
|
5
97826-79940-000
Lear wire, motor
|
97826-79940-000 |
— | ||
|
6
|
6
97825-72900-000
Lead wire, battery
|
97825-72900-000 |
— | ||
|
7
|
7
97827-72900-000
Cap
|
97827-72900-000 |
— | ||
|
8
|
8
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
9
|
9
08310-22088-000
Nut
|
08310-22088-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
10
|
10
97822-72900-000
Switch assy, micro
|
97822-72900-000 |
— | ||
|
11
|
11
97856-79940-000
Harness, control box
|
97856-79940-000 |
— | ||
|
12
|
12
97824-72900-000
Fuse harness, control box
|
97824-72900-000 |
— | ||
