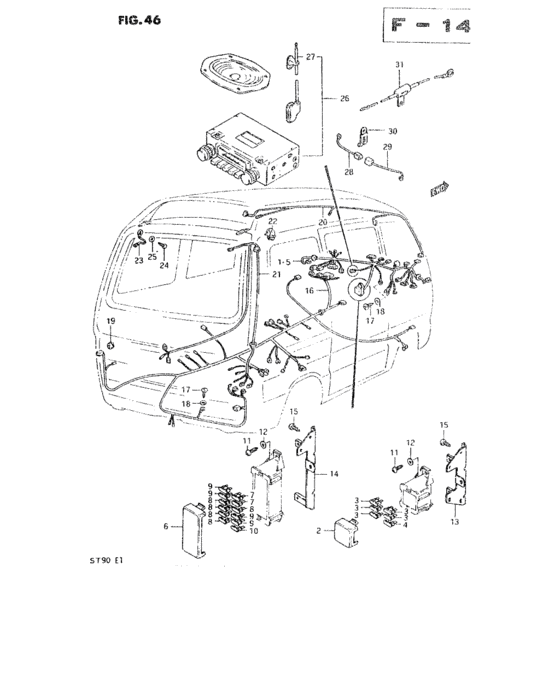

Wiring harness (TYPE 3:ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-79020-000
Wiring harness, no.1
RHD |
36610-79020-000 |
— | ||
|
1
|
1
36610-79040-000
Wiring harness, no.1
LHD |
36610-79040-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-79042-000
HARNESS ASSY,WRG NO.1
LHD |
36610-79042-000 |
— | ||
|
1
|
1
36610-79030-000
Wiring harness, no.1
DEL:RHD,,,4,7 |
36610-79030-000 |
— | ||
|
1
|
1
36610-79050-000
Wiring harness, no.1
DEL:LHD,Finland,Switzerland,Belgium,Holland,Saudi Arabia,Channel Islands,Israel |
36610-79050-000 |
— | ||
|
1
|
1
36610-79080-000
Wiring harness, no.1
(WITH SEAT BELT WARNING TYPE),Saudi Arabia |
36610-79080-000 |
— | ||
|
2
|
2
36717-79000-000 COVER,FUSE BOX |
36717-79000-000 |
US $5.81 |
||
|
3
|
3
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
4
|
4
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $1.93 |
||
|
5
|
5
36610-79060-000
Wiring harness, no.1
Germany,Austria |
36610-79060-000 |
— | ||
|
6
|
6
36717-79500-000
Cover, fuse box
Germany,Austria |
36717-79500-000 |
— | ||
|
7
|
7
09481-05101-000 FUSE(5A)Germany,Austria |
09481-05101-000 |
from US $1.56 |
||
|
8
|
8
09481-10101-000 FUSE(10A)Germany,Austria |
09481-10101-000 |
from US $1.28 |
||
|
9
|
9
09481-15101-000 FUSE(15A)Fuse (15a) Germany,Austria |
09481-15101-000 |
from US $1.28 |
||
|
10
|
10
09481-20101-000 FUSE(20A)Germany,Austria |
09481-20101-000 |
from US $1.93 |
||
|
11
|
11
03211-05128-000
Screw
|
03211-05128-000 |
— | ||
| replacement | |||||
|
11
|
11
03212-0512B-000 SCREW |
03212-0512B-000 |
from US $0.80 |
||
|
12
|
12
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
13
|
13
36791-79010-000
Bracket, fuse box
|
36791-79010-000 |
— | ||
| replacement | |||||
|
13
|
13
36791-79011-000
BRACKET,FUSE BOX
|
36791-79011-000 |
— | ||
|
14
|
14
36791-79510-000
Bracket, fuse box
Germany,Austria |
36791-79510-000 |
— | ||
|
15
|
15
03211-06128-000
スクリュ
|
03211-06128-000 |
— | ||
| replacement | |||||
|
15
|
15
03211-0612A-000 SCREW |
03211-0612A-000 |
US $7.70 |
||
|
16
|
16
36620-79051-000
Wiring harness, no.2
|
36620-79051-000 |
— | ||
|
16
|
16
36620-79061-000
Wiring harness, no.2
Germany,Austria |
36620-79061-000 |
— | ||
|
16
|
16
36620-79071-000
Wiring harness, no.2
DEL,,,Finland,Switzerland,Belgium,4,5,7,Saudi Arabia,Channel Islands,Israel |
36620-79071-000 |
— | ||
|
17
|
17
03111-05128-000
Screw
|
03111-05128-000 |
— | ||
| replacement | |||||
|
17
|
17
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
18
|
18
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
19
|
19
09308-08007-000 GROMMET |
09308-08007-000 |
US $1.76 |
||
|
20
|
20
36630-79010-000
HARNESS,TURN/ROOM LAMP
|
36630-79010-000 |
— | ||
|
21
|
21
36640-79500-000
Wiring harness, rear wiper
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Israel |
36640-79500-000 |
— | ||
|
22
|
22
09408-00030-000
Clip
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Israel |
09408-00030-000 |
— | ||
| replacement | |||||
|
22
|
22
09403-13409-000 CLAMPDEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Israel |
09403-13409-000 |
US $14 |
||
|
23
|
23
36891-79500-000
Lead wire, deforger earth
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Israel |
36891-79500-000 |
— | ||
|
24
|
24
03111-05128-000
Screw
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Israel |
03111-05128-000 |
— | ||
| replacement | |||||
|
24
|
24
03111-0512A-000 SCREWDEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Israel |
03111-0512A-000 |
from US $0.80 |
||
|
25
|
25
08322-21058-000
Washer
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Israel |
08322-21058-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-01057-000 WASHERWasher, front hook holder DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Israel |
08322-01057-000 |
from US $0.80 |
||
|
26
|
26
39100-79100-000
Radio assy
|
39100-79100-000 |
— | ||
|
26
|
26
39100-79700-000
Radio assy
|
39100-79700-000 |
— | ||
|
26
|
26
39100-79300-000
Radio assy
|
39100-79300-000 |
— | ||
|
26
|
26
39100-79310-000
Radio assy
,,,Finland,Switzerland,Belgium 2,5,Nigeria,Austria,4 |
39100-79310-000 |
— | ||
|
27
|
27
39250-78300-000
アンテナアッシ
|
39250-78300-000 |
— | ||
| replacements | |||||
|
27
|
27
39250-80C00-000
ANTENNA ASSY
|
39250-80C00-000 |
— | ||
|
27
|
27
39250-80C10-000 ANTENNA ASSY |
39250-80C10-000 |
US $35.20 |
||
|
28
|
28
39191-79040-000
ワイヤ,チューナアース,NO.1
|
39191-79040-000 |
— | ||
| replacement | |||||
|
28
|
28
39191-50F00-000 WIRE,TUNER GND |
39191-50F00-000 |
US $2.24 |
||
|
29
|
29
39192-79010-000
ワイヤ,チューナグランド,NO.2
|
39192-79010-000 |
— | ||
| replacement | |||||
|
29
|
29
39192-70G00-000 WIRE,TUNER GND NO.2 |
39192-70G00-000 |
US $2.91 |
||
|
30
|
30
09404-06401-000
Clamp, oil hose
|
09404-06401-000 |
— | ||
| replacements | |||||
|
30
|
30
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
30
|
30
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
30
|
30
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
30
|
30
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
31
|
31
33551-81002-000
コンデンサ,ノイズサプレッサ
|
33551-81002-000 |
— | ||
| replacement | |||||
|
31
|
31
33551-8400V-000 CONDENSER,NOISE SUPPR |
33551-8400V-000 |
US $10.27 |
||
