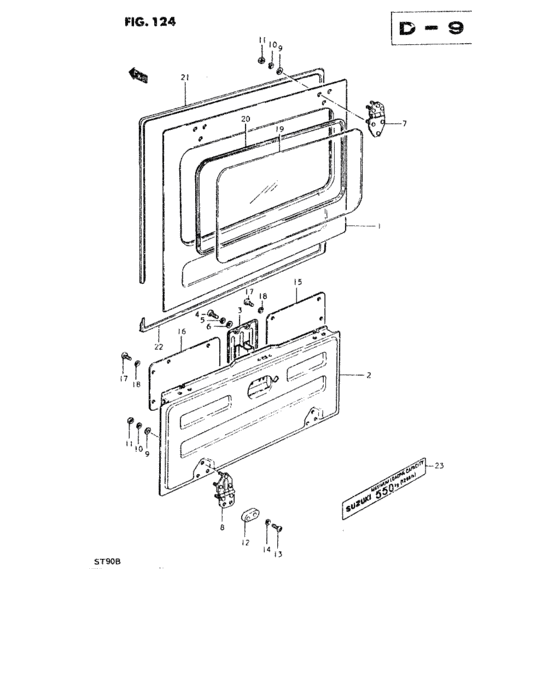

Back door panel (BACK DOOR PANEL) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75700-61300-000
Panel assy, upper
|
75700-61300-000 |
— | ||
|
2
|
2
75800-61300-000
Panel assy, lower
|
75800-61300-000 |
— | ||
| replacements | |||||
|
2
|
2
09250-12004-000 CAP(OD:17) |
09250-12004-000 |
US $12.90 |
||
|
2
|
2
75800-61302-000
PANEL ASSY,LOWER BACK DOOR
|
75800-61302-000 |
— | ||
|
3
|
3
75835-61300-000
Panel,back door lock cover
|
75835-61300-000 |
— | ||
|
4
|
4
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
5
|
5
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
6
|
6
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
7
|
7
76310-61300-000
Hinge, upper
|
76310-61300-000 |
— | ||
| replacement | |||||
|
7
|
7
76310-61301-000
Hinge,upper back door
|
76310-61301-000 |
— | ||
|
8
|
8
76330-61300-000
Hinge, lower
|
76330-61300-000 |
— | ||
| replacement | |||||
|
8
|
8
76330-61302-000
HINGE,LWR BACK DOOR
|
76330-61302-000 |
— | ||
|
9
|
9
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
9
|
9
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
10
|
10
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
11
|
11
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
12
|
12
73940-61300-000
OPEN STOPPER
|
73940-61300-000 |
— | ||
|
13
|
13
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
14
|
14
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
15
|
15
79611-61300-000
TRIM,BACK DOOR,R
|
79611-61300-000 |
— | ||
|
16
|
16
79661-61300-000
TRIM,BACK DOOR,L
|
79661-61300-000 |
— | ||
|
17
|
17
02112-05108-000
Screw
|
02112-05108-000 |
— | ||
| replacement | |||||
|
17
|
17
02112-05107-000 SCREWScrew, bracket |
02112-05107-000 |
from US $0.80 |
||
|
18
|
18
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
19
|
19
72811-61330-000
Glass, back window
|
72811-61330-000 |
— | ||
|
20
|
20
72821-61300-000
Weatherstrip, window
|
72821-61300-000 |
— | ||
|
21
|
21
79255-61300-000
Weatherstrip, no.1
|
79255-61300-000 |
— | ||
| replacement | |||||
|
21
|
21
84681-53F00-000
Weatherstrip,back dr opng,no.1
|
84681-53F00-000 |
— | ||
|
22
|
22
79256-61301-000
Weatherstrip, no.2
|
79256-61301-000 |
— | ||
| replacement | |||||
|
22
|
22
84682-53F00-000
WEATHERSTRIP,BACK DR OPNG NO.2
|
84682-53F00-000 |
— | ||
|
23
|
23
86961-67610-000
Emblem, load indicator
Saudi Arabia,Russia |
86961-67610-000 |
— | ||
