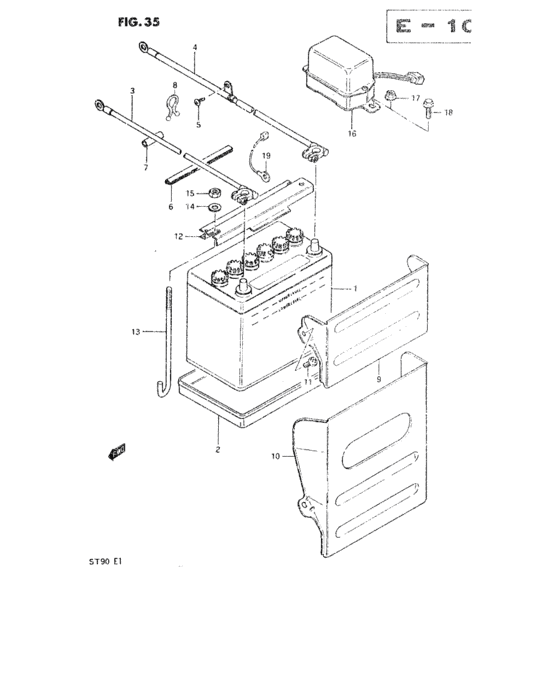

Battery (ST90, K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-73010-000
Battery
YUASA |
33610-73010-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
YUASA |
33610-750V1-000 |
— | ||
|
1
|
1
33610-79721-000
Battery
FURUKAWA FROM 33610-79720 |
33610-79721-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
FURUKAWA FROM 33610-79720 |
33610-750V1-000 |
— | ||
|
1
|
1
33610-80011-000
Battery
Finland FROM 33610-80010 |
33610-80011-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-60A11-000
バッテリ,55B24R(S)ーMF,12V36AH,YB
Finland FROM 33610-80010 |
33610-60A11-000 |
— | ||
|
2
|
2
33660-67000-000 TRAY,BATTERYTYPE 1 |
33660-67000-000 |
US $9.44 |
||
|
3
|
3
33810-79200-000
Cable, starting motor
TYPE 1,TYPE 2 |
33810-79200-000 |
— | ||
|
3
|
3
33810-79220-000
Cable, starting motor
TYPE 3 |
33810-79220-000 |
— | ||
| replacement | |||||
|
3
|
3
33810-74D00-000 CABLE,STARTING MOTORTYPE 3 |
33810-74D00-000 |
US $35.14 |
||
|
3
|
3
33810-79230-000
Cable, starting motor
TYPE 3:Finland |
33810-79230-000 |
— | ||
| replacement | |||||
|
3
|
3
33810-85040-000
CABLE,STARTING MOTOR
TYPE 3:Finland |
33810-85040-000 |
— | ||
|
4
|
4
33850-79200-000
Cable, battery ground
|
33850-79200-000 |
— | ||
|
4
|
4
33850-79210-000
Cable, battery ground
TYPE 3:Finland |
33850-79210-000 |
— | ||
|
5
|
5
03241-06128-000
Vis
|
03241-06128-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
6
|
6
57279-67000-000 PROTECTORL:200->100 |
57279-67000-000 |
US $1.52 |
||
|
7
|
7
09344-12004-000
Protector, starting cable
|
09344-12004-000 |
— | ||
| replacement | |||||
|
7
|
7
09351-12132-600 HOSE(12X13.5X600)Hose (12x13.5x600) |
09351-12132-600 |
US $3.53 |
||
|
8
|
8
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) TYPE 3 |
09408-00012-000 |
from US $3.37 |
||
|
9
|
9
65277-67003-000 COVER,BATTERY |
65277-67003-000 |
US $17.60 |
||
|
10
|
10
57131-77040-000
Cover, battery
TYPE 1,TYPE 2:,Switzerland,Belgium,5 |
57131-77040-000 |
— | ||
|
10
|
10
57131-77041-000
COVER,BATTERY
TYPE 2:Finland TYPE 3:,Finland,Switzerland,Belgium,5,Channel Islands,Israel |
57131-77041-000 |
— | ||
|
11
|
11
03241-06128-000
Vis
|
03241-06128-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
12
|
12
57281-67000-000
バンド,バッテリ
|
57281-67000-000 |
— | ||
| replacement | |||||
|
12
|
12
72511-51F01-000 BAND,BATTERY |
72511-51F01-000 |
US $6.56 |
||
|
12
|
12
57281-79200-000
Band, battery
TYPE 2:Finland TYPE 3:,Finland,Switzerland,Belgium,5,Channel Islands,Israel |
57281-79200-000 |
— | ||
|
13
|
13
72729-64000-000 BOLT,BATTERY L:168 |
72729-64000-000 |
US $1.92 |
||
|
14
|
14
09160-05013-000 WASHER(5.2X16X1)Washer |
09160-05013-000 |
from US $0.76 |
||
|
15
|
15
08310-11058-000
Nut
|
08310-11058-000 |
— | ||
| replacement | |||||
|
15
|
15
08310-00057-000 NUT |
08310-00057-000 |
from US $0.76 |
||
|
16
|
16
32500-56011-000
REGULATOR ASSY,VOLTAGE
|
32500-56011-000 |
— | ||
|
17
|
17
08316-16066-000
Nut
TYPE 1,TYPE 2 |
08316-16066-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1006B-000 NUTTYPE 1,TYPE 2 |
08316-1006B-000 |
from US $0.76 |
||
|
18
|
18
01517-06128-000
Bolt
TYPE 3 |
01517-06128-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-06127-000 BOLTBolt, rect TYPE 3 |
01550-06127-000 |
from US $0.68 |
||
|
19
|
19
36740-80000-000 FUSIBLE LINKTYPE 3 |
36740-80000-000 |
US $21.60 |
||
