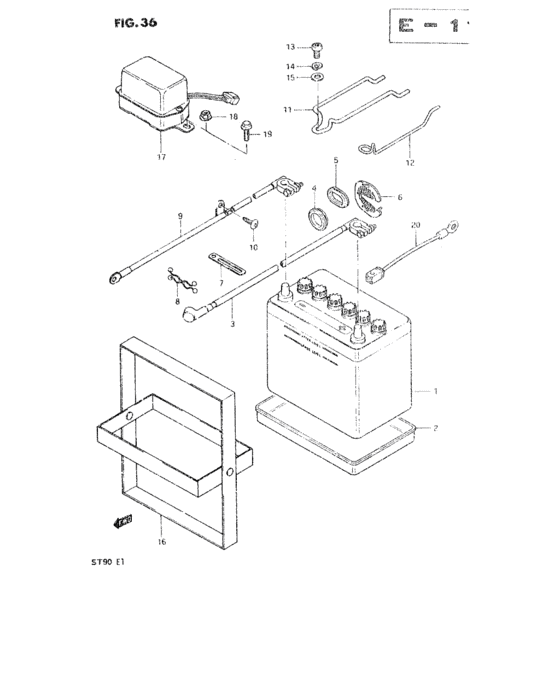

Battery (ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-79220-000
Battery
FURUKAWA |
33610-79220-000 |
— | ||
|
1
|
1
33610-73010-000
Battery
YUASA |
33610-73010-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
YUASA |
33610-750V1-000 |
— | ||
|
1
|
1
33610-79721-000
Battery
FURUKAWA FROM 33610-79720 |
33610-79721-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
FURUKAWA FROM 33610-79720 |
33610-750V1-000 |
— | ||
|
1
|
1
33610-80011-000
Battery
Finland FROM 33610-80010 |
33610-80011-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-60A11-000
バッテリ,55B24R(S)ーMF,12V36AH,YB
Finland FROM 33610-80010 |
33610-60A11-000 |
— | ||
|
2
|
2
33660-67000-000 TRAY,BATTERYTYPE 1 |
33660-67000-000 |
US $9.44 |
||
|
3
|
3
33810-79701-000
Cable, starting motor
TYPE 1,TYPE 2 |
33810-79701-000 |
— | ||
|
3
|
3
33810-79720-000
Cable, starting motor
TYPE 3 |
33810-79720-000 |
— | ||
| replacement | |||||
|
3
|
3
33810-75D10-000 CABLE,STARTING MOTORTYPE 3 |
33810-75D10-000 |
US $58.51 |
||
|
3
|
3
33810-79710-000
Cable, starting motor
TYPE 2:Finland |
33810-79710-000 |
— | ||
|
3
|
3
33810-79730-000
Cable, starting motor
TYPE 3:Finland |
33810-79730-000 |
— | ||
|
4
|
4
09308-25001-000
Grommet
|
09308-25001-000 |
— | ||
|
5
|
5
09308-19001-000 GROMMET |
09308-19001-000 |
US $23.20 |
||
|
6
|
6
09308-26001-000 GROMMETST90-738751~ ST90V110194~ |
09308-26001-000 |
US $2.13 |
||
|
7
|
7
09404-08414-000
Clamp, wiring harness
|
09404-08414-000 |
— | ||
| replacement | |||||
|
7
|
7
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
8
|
8
09408-00010-000 CLIP |
09408-00010-000 |
US $11.40 |
||
|
8
|
8
09408-00022-000 CLIPFinland |
09408-00022-000 |
US $9.90 |
||
|
9
|
9
33850-79701-000 CABLE,BATTERY GND |
33850-79701-000 |
US $32.20 |
||
|
9
|
9
33850-79710-000
Cable, battery ground
Finland |
33850-79710-000 |
— | ||
|
10
|
10
03241-06128-000
Vis
|
03241-06128-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
11
|
11
66461-79500-000
Holder, battery
|
66461-79500-000 |
— | ||
|
12
|
12
66461-79501-000 HOLDER,BATTER |
66461-79501-000 |
US $8.16 |
||
|
13
|
13
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
14
|
14
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
15
|
15
09160-06007-000
Washer
|
09160-06007-000 |
— | ||
| replacement | |||||
|
15
|
15
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
16
|
16
33721-89030-000
Strap assy,battery han
Finland |
33721-89030-000 |
— | ||
|
17
|
17
32500-56011-000
REGULATOR ASSY,VOLTAGE
|
32500-56011-000 |
— | ||
|
18
|
18
08316-16066-000
Nut
TYPE 1,TYPE 2 |
08316-16066-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1006B-000 NUTTYPE 1,TYPE 2 |
08316-1006B-000 |
from US $0.76 |
||
|
19
|
19
01517-06128-000
Bolt
TYPE 3 |
01517-06128-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-06127-000 BOLTBolt, rect TYPE 3 |
01550-06127-000 |
from US $0.68 |
||
|
20
|
20
36740-80000-000 FUSIBLE LINKTYPE 3 |
36740-80000-000 |
US $21.60 |
||
