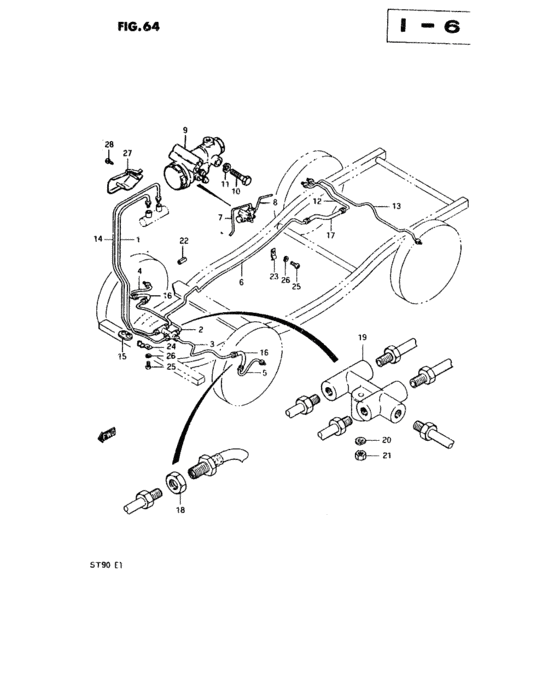

Brake piping (BRAKE PIPING) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-79100-000
Pipe, brake no.1
TYPE 1,TYPE 2:RHD FROM 51410-79000 |
51410-79100-000 |
— | ||
|
1
|
1
51410-79020-000
Pipe, brake no.1
TYPE 3:RHD |
51410-79020-000 |
— | ||
|
1
|
1
51410-79010-000
Pipe, brake no.1
TYPE 1,TYPE 2:LHD |
51410-79010-000 |
— | ||
|
1
|
1
51410-79120-000
Pipe, brake no.1
TYPE 3:LHD |
51410-79120-000 |
— | ||
|
1
|
1
51410-79030-000
Pipe, brake no.1
TYPE 2:Finland |
51410-79030-000 |
— | ||
|
2
|
2
51420-79010-000
Pipe,brake no.2
FROM 51420-79000 |
51420-79010-000 |
— | ||
|
3
|
3
51430-79010-000
Pipe,brake no.3
FROM 51430-79001 |
51430-79010-000 |
— | ||
|
4
|
4
51440-79210-000 PIPE,BRAKE,NO4FROM 51440-79200 |
51440-79210-000 |
US $15.79 |
||
|
5
|
5
51450-79210-000 PIPE,BRAKE NO.5FROM 51450-79200 |
51450-79210-000 |
US $15.79 |
||
|
6
|
6
51460-79100-000
Pipe, brake no.6
TYPE 1,TYPE 2 |
51460-79100-000 |
— | ||
|
6
|
6
51460-79110-000
Pipe, brake no.6
TYPE 3 |
51460-79110-000 |
— | ||
|
6
|
6
51460-79500-000
Pipe, brake no.6
TYPE 1,TYPE 2 |
51460-79500-000 |
— | ||
|
6
|
6
51460-79510-000
Pipe, brake no.6
TYPE 3 |
51460-79510-000 |
— | ||
|
7
|
7
51460-79220-000
Pipe, brake no.6
,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel,FROM 51540-79200 |
51460-79220-000 |
— | ||
|
7
|
7
51460-79230-000
Pipe, brake no.6
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
51460-79230-000 |
— | ||
|
8
|
8
51540-79220-000
Pipe, brake no.15
,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel,FROM 51540-79200 |
51540-79220-000 |
— | ||
|
8
|
8
51540-79230-000
Pipe, brake no.15
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,FROM 51540-79210 |
51540-79230-000 |
— | ||
|
9
|
9
51950-79220-000
D.s.p valve assy
,,Finland,Belgium,2,5,Austria,Channel Islands,Israel |
51950-79220-000 |
— | ||
|
9
|
9
51950-79320-000
D.s.p valve assy
Switzerland |
51950-79320-000 |
— | ||
|
10
|
10
01107-08658-000
Bolt
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
01107-08658-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0865B-000 BOLT,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
01500-0865B-000 |
from US $4.10 |
||
|
11
|
11
08321-31088-000
Lock washer
,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
08321-31088-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01087-000 WASHER,LOCKWasher, lock ,,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands,Israel |
08321-01087-000 |
from US $0.76 |
||
|
12
|
12
51470-79210-000 PIPE,BRAKE NO.7FROM 51470-79200 |
51470-79210-000 |
US $15.01 |
||
|
13
|
13
51480-79210-000
PIPE,BRAKE NO.8
FROM 51480-79200 |
51480-79210-000 |
— | ||
|
14
|
14
51510-79100-000
Pipe, brake no.12
TYPE 1,TYPE 2:RHD FROM 51510-79000 |
51510-79100-000 |
— | ||
|
14
|
14
51510-79020-000
Pipe, brake no.12
TYPE 3:RHD |
51510-79020-000 |
— | ||
|
14
|
14
51510-79010-000
Pipe, brake no.12
TYPE 1,TYPE 2:LHD |
51510-79010-000 |
— | ||
|
14
|
14
51510-79120-000
Pipe, brake no.12
TYPE 3:LHD |
51510-79120-000 |
— | ||
|
14
|
14
51510-79030-000
Pipe, brake no.12
TYPE 2:Finland |
51510-79030-000 |
— | ||
|
15
|
15
51751-67000-000
Grommet, brake pipe
|
51751-67000-000 |
— | ||
| replacement | |||||
|
15
|
15
51751-85000-000 GROMMET,BRAKE PIPE |
51751-85000-000 |
US $2.24 |
||
|
16
|
16
51540-78050-000
Flexible hose, front brake
FROM 51540-78030 |
51540-78050-000 |
— | ||
| replacement | |||||
|
16
|
16
51540-78030-000 HOSE,RR BRAKE FLEXIBLEFROM 51540-78030 |
51540-78030-000 |
US $15.84 |
||
|
17
|
17
51540-73030-000 HOSE,BRAKE FLEXIBLEFROM 51540-67031 |
51540-73030-000 |
US $12.96 |
||
|
18
|
18
09140-16007-000 NUT |
09140-16007-000 |
US $1.92 |
||
|
19
|
19
51640-73000-000 JOINT,5WAY |
51640-73000-000 |
US $64.77 |
||
|
20
|
20
08321-31068-000
Lock washer
|
08321-31068-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
21
|
21
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
21
|
21
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
22
|
22
51755-67000-000
New Genuine Part
|
51755-67000-000 |
— | ||
| replacement | |||||
|
22
|
22
51755-77200-000 PROTECTOR,BRAKE PIPE |
51755-77200-000 |
US $4.56 |
||
|
23
|
23
09403-05302-000 CLAMPClamp |
09403-05302-000 |
US $1.28 |
||
|
24
|
24
09403-05301-000 CLAMP |
09403-05301-000 |
US $8.50 |
||
|
25
|
25
03111-06128-000
Screw
|
03111-06128-000 |
— | ||
| replacement | |||||
|
25
|
25
03111-0612A-000 SCREW |
03111-0612A-000 |
US $0.80 |
||
|
26
|
26
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
27
|
27
51291-79000-000
Cover, master cylinder
TYPE 3:Germany |
51291-79000-000 |
— | ||
|
28
|
28
03211-05108-000
Screw
TYPE 3:Germany |
03211-05108-000 |
— | ||
| replacement | |||||
|
28
|
28
03211-0510C-000 SCREWTYPE 3:Germany |
03211-0510C-000 |
US $12.50 |
||
