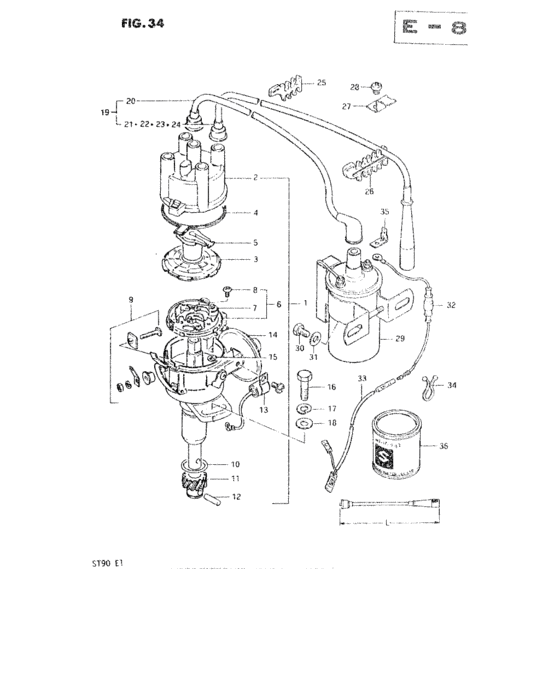

Distributor (DISTRIBUTOR) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-79210-000
Distributor assy
|
33100-79210-000 |
— | ||
| replacement | |||||
|
1
|
1
33100-79750-000
DISTRIBUTOR ASSY
|
33100-79750-000 |
— | ||
|
2
|
2
33321-79210-000
Cap
|
33321-79210-000 |
— | ||
| replacement | |||||
|
2
|
2
33321-60A10-000 CAP,DISTRIBUTOR |
33321-60A10-000 |
US $15.96 |
||
|
3
|
3
33279-78110-000
Cover
TYPE 1 |
33279-78110-000 |
— | ||
|
4
|
4
33324-79610-000 PACKING,CAP |
33324-79610-000 |
US $1.52 |
||
|
5
|
5
33310-73010-000
ロータアッシ(DENSO)
|
33310-73010-000 |
— | ||
| replacement | |||||
|
5
|
5
33310-82010-000 ROTOR ASSY |
33310-82010-000 |
US $8.21 |
||
|
6
|
6
33102-75110-000 BREAKER ASSY |
33102-75110-000 |
US $34.40 |
||
|
7
|
7
33140-74010-000
POINT ASSY
|
33140-74010-000 |
— | ||
|
8
|
8
33151-52011-000 SCREW,POINT |
33151-52011-000 |
US $0.99 |
||
|
9
|
9
33210-73010-000 TERMINAL ASSY |
33210-73010-000 |
US $3.04 |
||
|
10
|
10
33278-52010-000
Oリング
|
33278-52010-000 |
— | ||
| replacement | |||||
|
10
|
10
33278-85310-000 O-RING |
33278-85310-000 |
US $2.74 |
||
|
11
|
11
33267-79610-000
GEAR
|
33267-79610-000 |
— | ||
|
12
|
12
33268-72010-000 PIN,DISTRIBUTOR GEARFROM 33268-69110 |
33268-72010-000 |
US $0.77 |
||
|
13
|
13
33261-73010-000 CONDENSER |
33261-73010-000 |
US $12 |
||
|
14
|
14
33230-79210-000
Control assy
|
33230-79210-000 |
— | ||
| replacement | |||||
|
14
|
14
33230-79750-000
CONTROLLER ASSY,VACUUM
|
33230-79750-000 |
— | ||
|
15
|
15
33239-76410-000 E-RING |
33239-76410-000 |
US $1.60 |
||
|
16
|
16
09100-08158-000
ボルト,8X30
|
09100-08158-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
17
|
17
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
18
|
18
09160-08030-000
Washer
|
09160-08030-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
19
|
19
33700-79210-000
Cord assy, hightension
FROM 33700-79200 |
33700-79210-000 |
— | ||
| replacements | |||||
|
19
|
19
33705-85220-000
CORD SET,HIGH TENSION
FROM 33700-79200 |
33705-85220-000 |
— | ||
|
19
|
19
33710-85051-000 CORD,HT NO.1FROM 33700-79200 |
33710-85051-000 |
US $20 |
||
|
20
|
20
33710-79670-000
Cord, no.1
L:740 |
33710-79670-000 |
— | ||
| replacement | |||||
|
20
|
20
33710-85051-000 CORD,HT NO.1L:740 |
33710-85051-000 |
US $20 |
||
|
21
|
21
33760-79620-000
Cord, no.2
L:750 FROM 33760-79670 |
33760-79620-000 |
— | ||
| replacement | |||||
|
21
|
21
33730-85220-000
CORD,HT NO.2
L:750 FROM 33760-79670 |
33730-85220-000 |
— | ||
|
22
|
22
33750-79620-000
Cord, no.3
L:710 FROM 33750-79670 |
33750-79620-000 |
— | ||
| replacement | |||||
|
22
|
22
33740-85220-000
CORD,HT NO.3
L:710 FROM 33750-79670 |
33740-85220-000 |
— | ||
|
23
|
23
33740-79620-000
Cord, no.4
L:660 FROM 33740-79670 |
33740-79620-000 |
— | ||
| replacement | |||||
|
23
|
23
33750-85220-000
CORD,HT NO.4
L:660 FROM 33740-79670 |
33750-85220-000 |
— | ||
|
24
|
24
33730-79620-000
Cord, no.5
L:630 FROM 33730-79670 |
33730-79620-000 |
— | ||
| replacement | |||||
|
24
|
24
33760-85220-000 CORD,HT NO.5L:630 FROM 33730-79670 |
33760-85220-000 |
US $20.53 |
||
|
25
|
25
33882-79600-000
Clamp
|
33882-79600-000 |
— | ||
|
26
|
26
33882-77200-000
Clamp
|
33882-77200-000 |
— | ||
|
27
|
27
33881-75100-000 CLAMP,HIGH TENSION CORD |
33881-75100-000 |
US $2.88 |
||
|
28
|
28
02112-06088-000
Screw
|
02112-06088-000 |
— | ||
| replacement | |||||
|
28
|
28
02112-06087-000 SCREW |
02112-06087-000 |
from US $0.77 |
||
|
29
|
29
33410-58013-000
Coil assy, ignition
TYPE 1,TYPE 2 |
33410-58013-000 |
— | ||
| replacement | |||||
|
29
|
29
33410-770V0-000 COIL ASSY,IGNITIONTYPE 1,TYPE 2 |
33410-770V0-000 |
US $130.40 |
||
|
29
|
29
33410-58020-000
Coil assy, ignition
TYPE 3 |
33410-58020-000 |
— | ||
| replacement | |||||
|
29
|
29
33410-770V0-000 COIL ASSY,IGNITIONTYPE 3 |
33410-770V0-000 |
US $130.40 |
||
|
29
|
29
33410-73011-000
Coil assy, ignition
TYPE 1,TYPE 2:,Finland,Switzerland,Belgium,2,5,Austria,Egypt,Russia,Iceland |
33410-73011-000 |
— | ||
| replacement | |||||
|
29
|
29
33410-770V0-000 COIL ASSY,IGNITIONTYPE 1,TYPE 2:,Finland,Switzerland,Belgium,2,5,Austria,Egypt,Russia,Iceland |
33410-770V0-000 |
US $130.40 |
||
|
29
|
29
33410-77020-000
Coil assy, ignition
TYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Egypt,Channel Islands,Israel,Russia,Iceland |
33410-77020-000 |
— | ||
| replacement | |||||
|
29
|
29
33410-770V0-000 COIL ASSY,IGNITIONTYPE 3:,,Finland,Switzerland,Belgium,2,5,Austria,Egypt,Channel Islands,Israel,Russia,Iceland |
33410-770V0-000 |
US $130.40 |
||
|
30
|
30
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
31
|
31
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
32
|
32
33459-78130-000
RECTIFIER,IGNITION COIL
TYPE 1,TYPE 2:Switzerland,Germany |
33459-78130-000 |
— | ||
|
33
|
33
36895-72000-000
Lead wire
TYPE 1:Switzerland |
36895-72000-000 |
— | ||
|
34
|
34
09408-00011-000
Clip
TYPE 1,TYPE 2:Switzerland,Germany |
09408-00011-000 |
— | ||
| replacement | |||||
|
34
|
34
09408-00020-000 CLIPClamp, lead wire TYPE 1,TYPE 2:Switzerland,Germany |
09408-00020-000 |
US $9.90 |
||
|
35
|
35
33444-79600-000
Terminal
TYPE 1,TYPE 2 |
33444-79600-000 |
— | ||
|
36
|
36
99000-25070-000
Super grease g
OPT,NET:2.5 |
99000-25070-000 |
— | ||
| replacements | |||||
|
36
|
36
99000-25280-000
SUZUKI MOLYBDENUM GREASE(L)
OPT,NET:2.5 |
99000-25280-000 |
— | ||
|
36
|
36
99000-25500-000 Ecstar Molybdenum Grease(L)OPT,NET:2.5 |
99000-25500-000 |
from US $15.24 |
||
