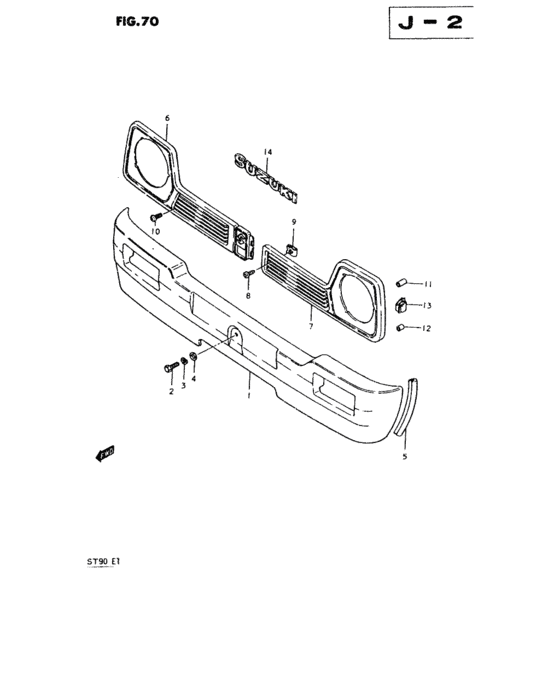

Front bumper (TYPE 1,TYPE 2) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57410-79211-10C
Bar, front bumper
FROM 57410-79210-10C |
57410-79211-10C |
— | ||
|
2
|
2
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
3
|
3
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
4
|
4
09160-08010-000 Washer (8.2x20x1.6) |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
4
|
4
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
5
|
5
57418-79001-000
Pad, bumper side
|
57418-79001-000 |
— | ||
|
6
|
6
61111-79000-10C
Grille, front rh
|
61111-79000-10C |
— | ||
| replacement | |||||
|
6
|
6
61111-79000-000
Grille,front
|
61111-79000-000 |
— | ||
|
6
|
6
61111-79200-10C
Grille, front rh
Costa Rica,Argentina |
61111-79200-10C |
— | ||
|
7
|
7
61121-79000-10C
Grille, front lh
|
61121-79000-10C |
— | ||
|
8
|
8
03212-05105-000
Screw, body
|
03212-05105-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0510C-000 SCREW |
03211-0510C-000 |
US $12.50 |
||
|
9
|
9
09148-05003-000 NUT |
09148-05003-000 |
US $1.28 |
||
|
10
|
10
09139-05014-000
Screw
|
09139-05014-000 |
— | ||
|
11
|
11
61155-79000-000
CUSHION,FR GRILLE,UPPER
|
61155-79000-000 |
— | ||
|
12
|
12
61156-79000-000
Cushion, grille lower
|
61156-79000-000 |
— | ||
| replacements | |||||
|
12
|
12
44420-44AR0-000
HOSE SET,FUEL
|
44420-44AR0-000 |
— | ||
|
12
|
12
61155-79000-000
CUSHION,FR GRILLE,UPPER
|
61155-79000-000 |
— | ||
|
12
|
12
61155-79010-000 Cushion,fr Grille,upper |
61155-79010-000 |
US $0.92 |
||
|
13
|
13
61151-79000-000 SPRING,FR GRILLE |
61151-79000-000 |
US $2.17 |
||
|
14
|
14
77814-80000-000
Emblem, suzuki
FROM 61131-79000-281 |
77814-80000-000 |
— | ||
| replacement | |||||
|
14
|
14
77814-80000-8VP EMBLEM,SUZUKIFROM 61131-79000-281 |
77814-80000-8VP |
US $45.60 |
||
