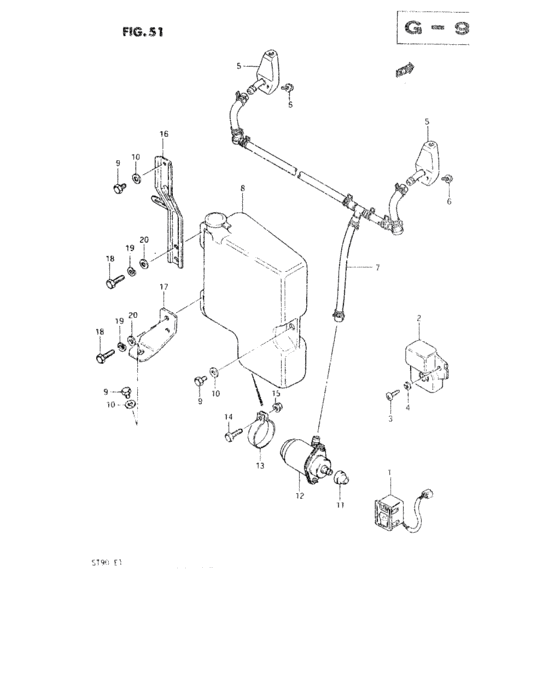

Head lamp washer (TYPE 3:Finland) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37930-80000-000
Switch, head lamp washer
|
37930-80000-000 |
— | ||
|
2
|
2
38630-80000-000
CONTROLLER ASSY,WASHER
|
38630-80000-000 |
— | ||
|
3
|
3
03211-05168-000
Screw
|
03211-05168-000 |
— | ||
| replacements | |||||
|
3
|
3
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
3
|
3
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
4
|
4
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
5
|
5
39110-79000-000
Nozzle, head lamp washer
|
39110-79000-000 |
— | ||
|
6
|
6
39111-79000-000
Screw
|
39111-79000-000 |
— | ||
|
7
|
7
39120-79000-000
Hose assy
|
39120-79000-000 |
— | ||
|
8
|
8
39131-79000-000
Tank assy, head lamp washer
|
39131-79000-000 |
— | ||
|
9
|
9
01107-06126-000
Bolt 6x12
|
01107-06126-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
10
|
10
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
11
|
11
39143-80000-000 PACKING,MOTOR |
39143-80000-000 |
US $2.91 |
||
|
12
|
12
39141-80000-000
Motor assy
|
39141-80000-000 |
— | ||
|
13
|
13
39142-79000-000
Bracket, motor
|
39142-79000-000 |
— | ||
|
14
|
14
01107-06205-000
Bolt
|
01107-06205-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
15
|
15
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
39133-79000-000
Bracket, tank upper
|
39133-79000-000 |
— | ||
|
17
|
17
39134-79000-000
Bracket, tank lower
|
39134-79000-000 |
— | ||
|
18
|
18
01107-06205-000
Bolt
|
01107-06205-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
19
|
19
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
20
|
20
08321-21065-000
Lock washer
|
08321-21065-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
