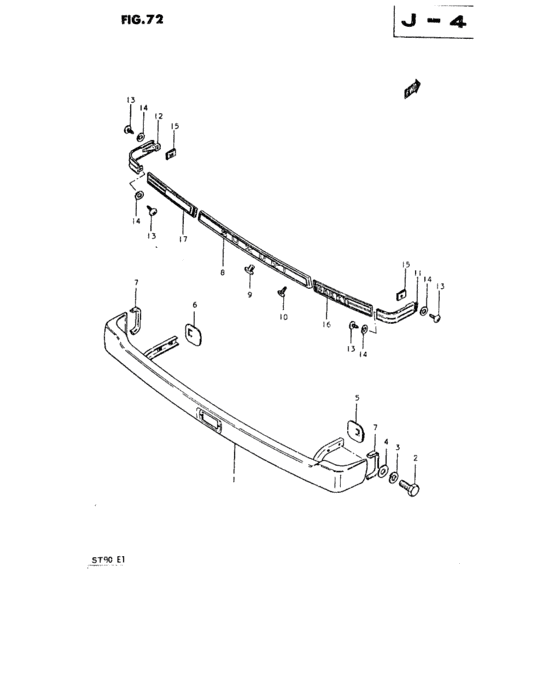

Rear bumper (TYPE 1,TYPE 2:ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57510-79500-10C
Bar, rear bumper
|
57510-79500-10C |
— | ||
|
1
|
1
57510-79750-10C
Bar, rear bumper
,Finland,Switzerland,Belgium,2,5,Austria,Channel Islands |
57510-79750-10C |
— | ||
|
2
|
2
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
3
|
3
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
4
|
4
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
5
|
5
57581-79500-000 CAP,STAY HOLE,R |
57581-79500-000 |
US $2.58 |
||
|
6
|
6
57586-79500-000 CAP,STAY HOLE,L |
57586-79500-000 |
US $2.58 |
||
|
7
|
7
57418-79001-000
Pad, bumper side
|
57418-79001-000 |
— | ||
|
8
|
8
79161-79500-281
Cover, licence lamp
FITTING HOLE 4PCS. TO,79161-79501-281 |
79161-79500-281 |
— | ||
| replacement | |||||
|
8
|
8
79161-79501-281
COVER,LICENCE LAMP
FITTING HOLE 4PCS. TO,79161-79501-281 |
79161-79501-281 |
— | ||
|
8
|
8
79161-79501-281
COVER,LICENCE LAMP
FITTING HOLE 6PCS. |
79161-79501-281 |
— | ||
|
9
|
9
02142-05128-000
Screw
|
02142-05128-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-05127-000 SCREW |
02142-05127-000 |
from US $0.80 |
||
|
10
|
10
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
11
|
11
69631-79500-281
Garnish,rear quarter rh
|
69631-79500-281 |
— | ||
|
12
|
12
69681-79500-281
Garnish, rear quarter lh
|
69681-79500-281 |
— | ||
|
13
|
13
03141-04165-000
Vis
|
03141-04165-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0416A-000 SCREW |
03141-0416A-000 |
from US $0.80 |
||
|
14
|
14
08322-21048-000
Washer
|
08322-21048-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01047-000 WASHER |
08322-01047-000 |
from US $0.80 |
||
|
15
|
15
09148-04003-000
Nut
|
09148-04003-000 |
— | ||
|
16
|
16
79162-79500-281
Garnish, back door panel rh
Australia |
79162-79500-281 |
— | ||
|
17
|
17
79163-79500-281
Garnish, back door panel lh
Australia |
79163-79500-281 |
— | ||
