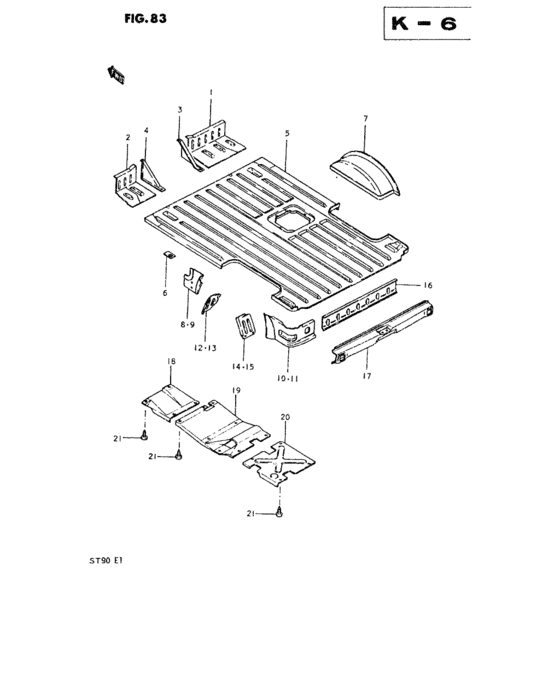

Rear floor (ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65511-79500-000
Panel, front rh
|
65511-79500-000 |
— | ||
| replacement | |||||
|
1
|
1
65511-79760-000 PANEL,REAR FLOOR FR,R |
65511-79760-000 |
US $36.43 |
||
|
2
|
2
65521-79500-000 PANEL,RR FLOOR FR LH |
65521-79500-000 |
US $20.24 |
||
|
3
|
3
65512-79500-000 PANEL,RR FLOOR FR HOLE SIDE,R |
65512-79500-000 |
US $9.64 |
||
|
4
|
4
65522-79500-000 PANEL,RR FLOOR FR HOLE SIDE,L |
65522-79500-000 |
US $9.64 |
||
|
5
|
5
65611-79500-000
PANEL,RR FLOOR
|
65611-79500-000 |
— | ||
|
6
|
6
65612-79500-000
Plate, rear seat leg
FITTING:1PC |
65612-79500-000 |
— | ||
|
6
|
6
65612-79521-000
Plate, rear seat leg
FITTING:2PCS |
65612-79521-000 |
— | ||
|
7
|
7
65621-79502-000
PANEL,RR WHEEL HOUSING
FROM 65621-79501 |
65621-79502-000 |
— | ||
|
8
|
8
65651-79500-000
PANEL,RR FLOOR INNER FR RH
|
65651-79500-000 |
— | ||
|
8
|
8
65651-79750-000
Panel, inner front rh
,,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Israel,Iceland |
65651-79750-000 |
— | ||
|
9
|
9
65661-79500-000
PANEL,RR FLOOR INNER FR LH
|
65661-79500-000 |
— | ||
|
9
|
9
65661-79750-000
Panel, inner front lh
,,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Israel,Iceland |
65661-79750-000 |
— | ||
|
10
|
10
65671-79500-000
Panel, inner rear rh
TYPE 1,TYPE 2 |
65671-79500-000 |
— | ||
| replacement | |||||
|
10
|
10
65671-79751-000 PANEL,INNER RR RHTYPE 1,TYPE 2 |
65671-79751-000 |
US $26.68 |
||
|
10
|
10
65671-79501-000
Panel, inner rear rh
TYPE 3 |
65671-79501-000 |
— | ||
| replacement | |||||
|
10
|
10
65671-79751-000 PANEL,INNER RR RHTYPE 3 |
65671-79751-000 |
US $26.68 |
||
|
10
|
10
65671-79750-000
Panel, inner rear rh
TYPE 1,TYPE 2:,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Iceland |
65671-79750-000 |
— | ||
| replacement | |||||
|
10
|
10
65671-79751-000 PANEL,INNER RR RHTYPE 1,TYPE 2:,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Iceland |
65671-79751-000 |
US $26.68 |
||
|
10
|
10
65671-79751-000 PANEL,INNER RR RHTYPE 3:,,Finland,Switzerland,Belgium,2,5,7,7,Austria,Channel Islands,Israel,Iceland |
65671-79751-000 |
US $26.68 |
||
|
11
|
11
65681-79501-000 PANEL,INNER RR LHFROM 65681-79500 |
65681-79501-000 |
US $26.68 |
||
|
11
|
11
65681-79750-000
Panel, inner rear lh
TYPE 1,TYPE 2:,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Iceland |
65681-79750-000 |
— | ||
|
11
|
11
65681-79751-000
Panel, inner rear lh
TYPE 3:,,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Israel,Iceland |
65681-79751-000 |
— | ||
|
12
|
12
65231-79500-000 PANEL,RR WHEEL HOUSE FR RH |
65231-79500-000 |
US $15.46 |
||
|
13
|
13
65241-79500-000 PANEL,RR WHEEL HOUSE FR LH |
65241-79500-000 |
US $15.46 |
||
|
14
|
14
65251-79500-000
PANEL,RR WHEEL HOUSE RR RH
|
65251-79500-000 |
— | ||
|
15
|
15
65261-79500-000
PANEL,RR WHEEL HOUSE RR LH
|
65261-79500-000 |
— | ||
|
16
|
16
65690-79500-000
Panel,tail skirt inner
|
65690-79500-000 |
— | ||
|
16
|
16
65690-79750-000
Panel, tail skirt inner
,,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Israel,Iceland |
65690-79750-000 |
— | ||
| replacement | |||||
|
16
|
16
65690-79500-000
Panel,tail skirt inner
,,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Israel,Iceland |
65690-79500-000 |
— | ||
|
17
|
17
65710-79500-000
Panel, tail skirt outer
TYPE 1,TYPE 2 |
65710-79500-000 |
— | ||
| replacements | |||||
|
17
|
17
65710-79501-000 PANEL,TAIL SKIRT OUTERTYPE 1,TYPE 2 |
65710-79501-000 |
US $46.37 |
||
|
17
|
17
02142-0612A-000 SCREWTYPE 1,TYPE 2 |
02142-0612A-000 |
from US $0.80 |
||
|
17
|
17
02142-0612B-000 SCREWTYPE 1,TYPE 2 |
02142-0612B-000 |
from US $0.76 |
||
|
17
|
17
02142-06127-000 SCREWTYPE 1,TYPE 2 |
02142-06127-000 |
from US $0.76 |
||
|
17
|
17
65710-79501-000 PANEL,TAIL SKIRT OUTERTYPE 3 |
65710-79501-000 |
US $46.37 |
||
|
17
|
17
65710-79750-000
Panel, tail skirt outer
TYPE 1,TYPE 2:,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Iceland |
65710-79750-000 |
— | ||
| replacement | |||||
|
17
|
17
65710-79501-000 PANEL,TAIL SKIRT OUTERTYPE 1,TYPE 2:,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Iceland |
65710-79501-000 |
US $46.37 |
||
|
17
|
17
65710-79751-000
Panel, tail skirt outer
TYPE 3:,,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Israel,Iceland |
65710-79751-000 |
— | ||
| replacement | |||||
|
17
|
17
65710-79501-000 PANEL,TAIL SKIRT OUTERTYPE 3:,,Finland,Switzerland,Belgium,2,5,7,Austria,Channel Islands,Israel,Iceland |
65710-79501-000 |
US $46.37 |
||
|
18
|
18
66451-79700-000
Panel, heat protector no.1
|
66451-79700-000 |
— | ||
| replacement | |||||
|
18
|
18
66451-79701-000 PANEL,HEAT PROTECTOR |
66451-79701-000 |
US $14.90 |
||
|
19
|
19
66452-79701-000
Panel, heat protector no.2
FROM 66452-79700 |
66452-79701-000 |
— | ||
| replacement | |||||
|
19
|
19
66452-79702-000 PANEL,HEAT PROTECTORFROM 66452-79700 |
66452-79702-000 |
US $29.81 |
||
|
20
|
20
66453-79701-000
Panel, heat protector no.3
FROM 66453-79700 |
66453-79701-000 |
— | ||
| replacement | |||||
|
20
|
20
66453-79702-000 PANEL,HEAT PROTECTORFROM 66453-79700 |
66453-79702-000 |
US $24.29 |
||
|
21
|
21
03141-06128-000
Mold.inner fix.screw
|
03141-06128-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
