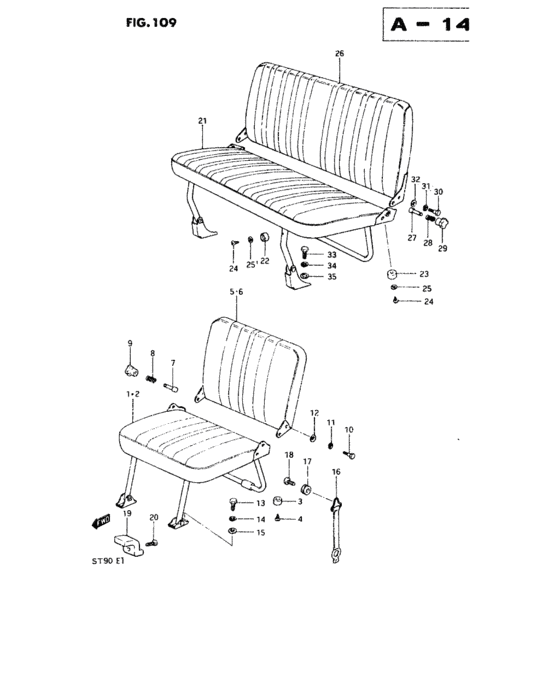

Rear seat (ST90VT-2/3 : ,,,Cyprus,Nigeria,Hong Kong,Greece,United Arab Emirates,Argentina) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83001-79562-45U
Cushion assy, rear seat rh
TYPE 2,FROM 83001-79560-45U |
83001-79562-45U |
— | ||
|
1
|
1
83001-79420-90V
Cushion assy, rear seat rh
TYPE 3 |
83001-79420-90V |
— | ||
|
2
|
2
83002-79562-45U
Cushion assy, rear seat lh
TYPE 2,FROM 83002-79560-45U |
83002-79562-45U |
— | ||
|
2
|
2
83002-79420-90V
Cushion assy, rear seat lh
TYPE 3 |
83002-79420-90V |
— | ||
|
3
|
3
09320-06003-000 CUSHION |
09320-06003-000 |
US $11.40 |
||
|
4
|
4
03111-05168-000
New Genuine Part
|
03111-05168-000 |
— | ||
| replacement | |||||
|
4
|
4
03111-0516A-000 SCREW |
03111-0516A-000 |
from US $0.80 |
||
|
5
|
5
83004-79560-45U
Back assy, third seat
TYPE 2 |
83004-79560-45U |
— | ||
|
5
|
5
83004-79420-90V
Back assy, rear seat rh
TYPE 3 |
83004-79420-90V |
— | ||
|
6
|
6
83005-79560-45U
Back assy, rear seat lh
TYPE 2 |
83005-79560-45U |
— | ||
|
6
|
6
83005-79420-90V
Back assy, rear seat lh
TYPE 3 |
83005-79420-90V |
— | ||
|
7
|
7
83913-59001-000 CHECK,RR SEAT BACK |
83913-59001-000 |
US $3.05 |
||
|
8
|
8
09440-07011-000 SPRING |
09440-07011-000 |
US $16.20 |
||
|
9
|
9
83914-59001-000 KNOB |
83914-59001-000 |
US $2.56 |
||
|
10
|
10
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
11
|
11
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
12
|
12
08322-11108-000
Washer
TYPE 2 |
08322-11108-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01107-000 WASHERWasher, throttle drum TYPE 2 |
08322-01107-000 |
from US $0.76 |
||
|
13
|
13
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
14
|
14
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
15
|
15
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
16
|
16
83290-79540-000
Band, seat stopper
|
83290-79540-000 |
— | ||
|
17
|
17
09306-06002-000
BUSH
|
09306-06002-000 |
— | ||
|
18
|
18
03141-05205-000
Screw l:20
|
03141-05205-000 |
— | ||
| replacements | |||||
|
18
|
18
03141-0520B-000 SCREW |
03141-0520B-000 |
US $2.56 |
||
|
18
|
18
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
19
|
19
83975-79510-000
Cushion,rr seat back stopper
|
83975-79510-000 |
— | ||
|
20
|
20
03141-05208-000
Screw
|
03141-05208-000 |
— | ||
| replacement | |||||
|
20
|
20
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
21
|
21
84001-79560-45U
Cushion assy, third seat
TYPE 2 |
84001-79560-45U |
— | ||
|
21
|
21
84001-79570-90V
Cushion assy, third seat
TYPE 3 |
84001-79570-90V |
— | ||
|
22
|
22
09320-06015-000 CUSHION |
09320-06015-000 |
US $1.67 |
||
|
23
|
23
09320-06003-000 CUSHION |
09320-06003-000 |
US $11.40 |
||
|
24
|
24
03111-05168-000
New Genuine Part
|
03111-05168-000 |
— | ||
| replacement | |||||
|
24
|
24
03111-0516A-000 SCREW |
03111-0516A-000 |
from US $0.80 |
||
|
25
|
25
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
26
|
26
83004-79560-45U
Back assy, third seat
TYPE 2,FROM 83004-79520-45U |
83004-79560-45U |
— | ||
|
26
|
26
84004-79570-90V
Back assy, third seat
TYPE 3 |
84004-79570-90V |
— | ||
|
27
|
27
83913-59001-000 CHECK,RR SEAT BACK |
83913-59001-000 |
US $3.05 |
||
|
28
|
28
09440-07011-000 SPRING |
09440-07011-000 |
US $16.20 |
||
|
29
|
29
83914-59001-000 KNOB |
83914-59001-000 |
US $2.56 |
||
|
30
|
30
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
31
|
31
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
31
|
31
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
32
|
32
08322-11108-000
Washer
TYPE 2 |
08322-11108-000 |
— | ||
| replacement | |||||
|
32
|
32
08322-01107-000 WASHERWasher, throttle drum TYPE 2 |
08322-01107-000 |
from US $0.76 |
||
|
33
|
33
01107-06128-000
Bolt, earth lead
|
01107-06128-000 |
— | ||
| replacement | |||||
|
33
|
33
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
34
|
34
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
34
|
34
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
35
|
35
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
35
|
35
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
