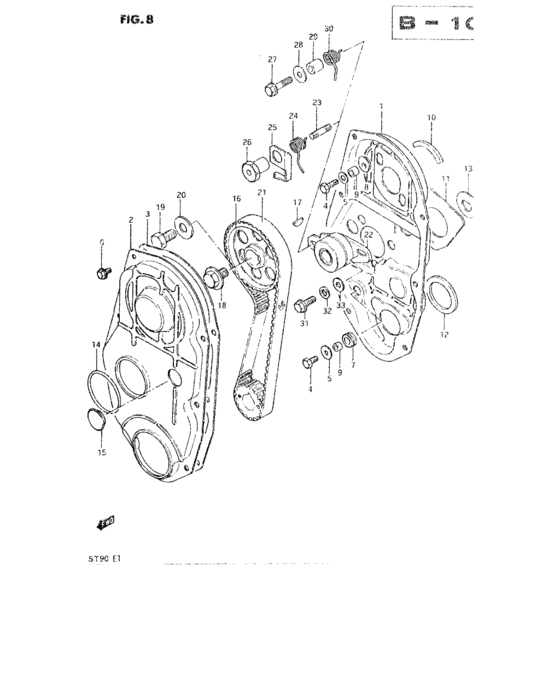

Timing belt (TIMING BELT) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11380-73002-000
Cover, timing belt inside
|
11380-73002-000 |
— | ||
| replacement | |||||
|
1
|
1
11360-73000-000
COVER,TIMING BELT INSIDE
|
11360-73000-000 |
— | ||
|
2
|
2
11391-73001-000
Cover, timing belt outside
|
11391-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
11391-78113-000 COVER,TIMING BELT OUTSIDE |
11391-78113-000 |
US $30.40 |
||
|
3
|
3
11399-73010-000 GASKET,TIMING BELT COVERFROM 11399-73001 |
11399-73010-000 |
US $14.88 |
||
|
4
|
4
01107-06208-000
Bolt
|
01107-06208-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-06207-000 BOLT |
01500-06207-000 |
from US $0.76 |
||
|
5
|
5
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
5
|
5
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
6
|
6
01517-06108-000
Bolt 6x10 hexagon
|
01517-06108-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-06107-000 BOLT |
01550-06107-000 |
from US $0.80 |
||
|
7
|
7
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
8
|
8
11398-73000-000 GROMMET,COVER |
11398-73000-000 |
US $3.19 |
||
|
9
|
9
09180-06002-000
Spacer (6.8x10x7)
|
09180-06002-000 |
— | ||
| replacement | |||||
|
9
|
9
09180-06283-000 SPACER(6.5X10X7)Spacer (6.5x10x7) |
09180-06283-000 |
from US $1.52 |
||
|
10
|
10
11481-73001-000
Cushion seal, no.1
FROM 11481-73000 |
11481-73001-000 |
— | ||
| replacement | |||||
|
10
|
10
11480-73000-000 SEAL SET,TIMING COVER,INSIDEFROM 11481-73000 |
11480-73000-000 |
US $32.69 |
||
|
11
|
11
11482-73002-000
Cushion seal, no.2
TO 11482-73003, USED WITH,11485-73000 |
11482-73002-000 |
— | ||
|
11
|
11
11482-73003-000
Cushion seal, no.2
E.NO.F8A-273459~ TO 11482-73004 |
11482-73003-000 |
— | ||
| replacement | |||||
|
11
|
11
11482-73004-000
クッション,シールNO.2
E.NO.F8A-273459~ TO 11482-73004 |
11482-73004-000 |
— | ||
|
11
|
11
11482-73004-000
クッション,シールNO.2
E.NO.F8A-288379~ |
11482-73004-000 |
— | ||
|
12
|
12
11483-73001-000
シール,タイミングベルト,NO.3
FROM 11483-73000 |
11483-73001-000 |
— | ||
| replacements | |||||
|
12
|
12
11480-78110-000 SEAL SET,TIMING COVER INSIDEFROM 11483-73000 |
11480-78110-000 |
US $12.64 |
||
|
12
|
12
11300-53831-000
SEAL SET,TIMING BELT COVER
FROM 11483-73000 |
11300-53831-000 |
— | ||
|
13
|
13
11485-73000-000
シール,タイミングカバーインサイド
E.NO.F8A-273459~ |
11485-73000-000 |
— | ||
|
14
|
14
11484-73000-000 GROMMET,COVER OUTSIDE |
11484-73000-000 |
US $2.56 |
||
|
15
|
15
09250-26003-000
CAP(OD:32)
|
09250-26003-000 |
— | ||
| replacement | |||||
|
15
|
15
09250-26006-000 Cap(Od:32) |
09250-26006-000 |
US $18.80 |
||
|
16
|
16
12741-73002-000 PULLEY,CAMSHAFT TIMING BELTFROM 12741-73001 |
12741-73002-000 |
US $67.71 |
||
|
17
|
17
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.17 |
||
|
18
|
18
09103-12002-000
ボルト,12X20
~E.NO.F8A-159307 |
09103-12002-000 |
— | ||
| replacement | |||||
|
18
|
18
09103-12002-XC0 BOLT(12X20)~E.NO.F8A-159307 |
09103-12002-XC0 |
US $2.56 |
||
|
19
|
19
01107-12258-000
Bolt 12x25
|
01107-12258-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-1225A-000 BOLT |
01500-1225A-000 |
US $17.30 |
||
|
20
|
20
09160-12043-000
Washer (12.5x32x4.5)
|
09160-12043-000 |
— | ||
| replacement | |||||
|
20
|
20
09160-12094-000 WASHER(12.5X32X4.5)Washer (12.5x32x4.5) |
09160-12094-000 |
from US $1.07 |
||
|
21
|
21
12761-73000-000
Belt, timing
|
12761-73000-000 |
— | ||
| replacement | |||||
|
21
|
21
11407-73001-000 BELT SET,TIMING |
11407-73001-000 |
US $74.40 |
||
|
22
|
22
12810-73003-000
Tensioner assy, timing belt
FROM 12810-73002 |
12810-73003-000 |
— | ||
| replacement | |||||
|
22
|
22
12810-53A00-000 TENSIONER ASSY,TIMING BELTFROM 12810-73002 |
12810-53A00-000 |
from US $38.48 |
||
|
23
|
23
01421-08208-000 8 x 20 stud bolStud bolt ~E.NO.F8A-288800 |
01421-08208-000 |
US $1.82 |
||
| replacement | |||||
|
23
|
23
01421-0820A-000 BOLT,STUD~E.NO.F8A-288800 |
01421-0820A-000 |
from US $1.82 |
||
|
24
|
24
12821-73000-000
Spring,tensioner
~E.NO.F8A-288800 |
12821-73000-000 |
— | ||
|
25
|
25
12823-73000-000 BRACKET,TENSIONER~E.NO.F8A-288800 |
12823-73000-000 |
US $16.72 |
||
|
26
|
26
12822-73000-000
NUT,TENSIONER
~E.NO.F8A-288800 |
12822-73000-000 |
— | ||
|
27
|
27
01517-08408-000
Bolt
E.NO.F8A-288801~ |
01517-08408-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-08407-000 BOLTE.NO.F8A-288801~ |
01550-08407-000 |
from US $3.33 |
||
|
28
|
28
09164-08004-000
New Genuine Part
E.NO.F8A-288801~ |
09164-08004-000 |
— | ||
|
29
|
29
09180-08111-000 SPACER(8.1X16X17)Spacer, front E.NO.F8A-288801~ |
09180-08111-000 |
from US $1.82 |
||
|
30
|
30
12821-78100-000 SPRING,TENSIONERE.NO.F8A-288801~ |
12821-78100-000 |
US $6.72 |
||
|
31
|
31
01517-08258-000
Bolt
|
01517-08258-000 |
— | ||
| replacement | |||||
|
31
|
31
01550-08257-000 BOLT |
01550-08257-000 |
from US $0.95 |
||
|
32
|
32
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
32
|
32
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
33
|
33
09160-08033-000
Cl rel arm washer rh
|
09160-08033-000 |
— | ||
| replacement | |||||
|
33
|
33
09160-08126-000 WASHER(8.5X20X2.6) |
09160-08126-000 |
from US $1.93 |
||
