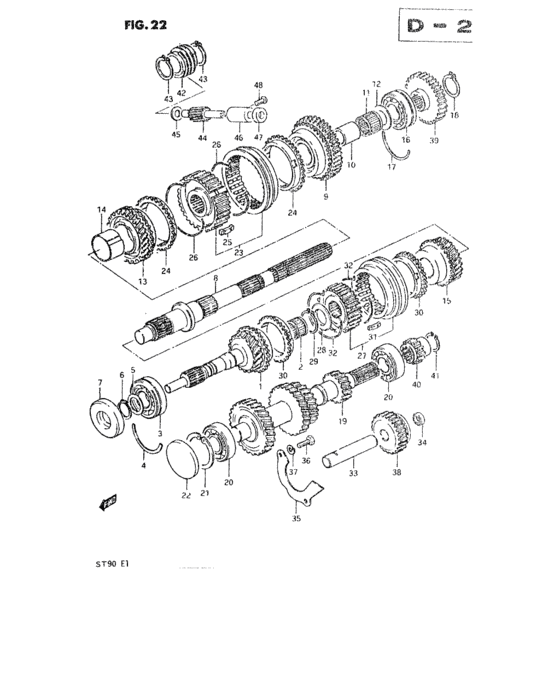

Transmission (TRANSMISSION) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-77000-000
Shaft, input
|
24110-77000-000 |
— | ||
|
1
|
1
24110-77002-000
Shaft, input
E.NO.F8A-267825~ |
24110-77002-000 |
— | ||
| replacements | |||||
|
1
|
1
24110-77004-000
SHAFT,T/M INPUT
E.NO.F8A-267825~ |
24110-77004-000 |
— | ||
|
1
|
1
24110-77005-000 SHAFT,T/M INPUTE.NO.F8A-267825~ |
24110-77005-000 |
US $123.65 |
||
|
2
|
2
09263-17014-000
ベアリング,17.5X22X15.8
|
09263-17014-000 |
— | ||
| replacement | |||||
|
2
|
2
09263-17043-000 BEARING(17.5X22X15.8) |
09263-17043-000 |
US $5.92 |
||
|
3
|
3
09262-20070-000
ベアリング
|
09262-20070-000 |
— | ||
| replacement | |||||
|
3
|
3
09262-20047-000 BEARING(20X47X14)Bearing, lh |
09262-20047-000 |
from US $39.52 |
||
|
4
|
4
09390-47002-000 C RING |
09390-47002-000 |
from US $1.98 |
||
|
5
|
5
08211-20281-000 Shim, fwd (1.0)E.NO.F8A-267825~ |
08211-20281-000 |
US $2.38 |
||
| replacement | |||||
|
5
|
5
09181-20167-000 SHIM(20X28X1)Shim (20x28x1.0) E.NO.F8A-267825~ |
09181-20167-000 |
from US $4.13 |
||
|
6
|
6
08331-11209-000
Circlip
|
08331-11209-000 |
— | ||
| replacement | |||||
|
6
|
6
08331-3120A-000 CIRCLIPCirclip, gear cam |
08331-3120A-000 |
from US $1.38 |
||
|
7
|
7
09283-20028-000 SEAL,OIL(20X47X8.5) |
09283-20028-000 |
US $5.12 |
||
|
8
|
8
24121-72000-000
Shaft, main
TO 24121-72002, USED WITH,24681-63202 |
24121-72000-000 |
— | ||
| replacement | |||||
|
8
|
8
24681-63202-000 GEAR,MAIN SFT REV,NT:27TO 24121-72002, USED WITH,24681-63202 |
24681-63202-000 |
US $58.51 |
||
|
8
|
8
24121-72002-000
Shaft, main
E.NO.F8A-145056~ |
24121-72002-000 |
— | ||
|
8
|
8
24121-72003-000 SHAFT,T/M MAINE.NO.F8A-267825~ |
24121-72003-000 |
US $127.70 |
||
|
9
|
9
24211-72002-000
Gear, mainshaft low
TO 24211-72003, USED WITH,09263-25021 AND 09300-20029 |
24211-72002-000 |
— | ||
| replacements | |||||
|
9
|
9
09263-25053-000 BEARING(25X30X23.8)TO 24211-72003, USED WITH,09263-25021 AND 09300-20029 |
09263-25053-000 |
from US $14.40 |
||
|
9
|
9
09300-20029-000 BUSH(20X25X25)TO 24211-72003, USED WITH,09263-25021 AND 09300-20029 |
09300-20029-000 |
US $84.60 |
||
|
9
|
9
24211-72003-000 GEAR,MAIN SFT LOWTO 24211-72003, USED WITH,09263-25021 AND 09300-20029 |
24211-72003-000 |
US $89.06 |
||
|
9
|
9
24801-60831-000 BEARING SET,5TH GEAR NDLTO 24211-72003, USED WITH,09263-25021 AND 09300-20029 |
24801-60831-000 |
from US $8.01 |
||
|
9
|
9
09263-25021-000
ベアリング,25X30X25
TO 24211-72003, USED WITH,09263-25021 AND 09300-20029 |
09263-25021-000 |
— | ||
|
9
|
9
24284-60B00-000 BEARING,4TH GEAR NDL25x30x23.8 TO 24211-72003, USED WITH,09263-25021 AND 09300-20029 |
24284-60B00-000 |
from US $7.29 |
||
|
9
|
9
24211-72003-000 GEAR,MAIN SFT LOWE.NO.F8A-287165~ |
24211-72003-000 |
US $89.06 |
||
|
10
|
10
09300-20021-000
Bush,20x26x25
|
09300-20021-000 |
— | ||
|
10
|
10
09300-20029-000 BUSH(20X25X25)E.NO.F8A-287165~ |
09300-20029-000 |
US $84.60 |
||
|
11
|
11
09263-25021-000
ベアリング,25X30X25
E.NO.F8A-287165~ |
09263-25021-000 |
— | ||
|
12
|
12
08211-20363-000 WASHERWasher, sub t/m driven, r |
08211-20363-000 |
from US $1.82 |
||
|
13
|
13
24221-72101-000
Gear, mainshaft 2nd
FROM 24221-72100 |
24221-72101-000 |
— | ||
| replacement | |||||
|
13
|
13
24221-72102-000 GEAR,MAIN SFT 2NDFROM 24221-72100 |
24221-72102-000 |
US $89.06 |
||
|
14
|
14
09300-25016-000 BUSH(25X30X20) |
09300-25016-000 |
US $37.50 |
||
|
15
|
15
24230-72004-000
Gear, mainshaft 3rd
FROM 24230-72003 |
24230-72004-000 |
— | ||
|
15
|
15
24230-73005-000
Gear, mainshaft 3rd
E.NO.F8A-267825~ FROM 24230-72005 |
24230-73005-000 |
— | ||
| replacement | |||||
|
15
|
15
24230-72005-000 GEAR,MAIN SFT 3RDE.NO.F8A-267825~ FROM 24230-72005 |
24230-72005-000 |
US $80.22 |
||
|
16
|
16
08163-63040-000 BEARING |
08163-63040-000 |
US $13.54 |
||
|
17
|
17
09390-52003-000 C RING |
09390-52003-000 |
from US $3.47 |
||
|
18
|
18
08331-31199-000
Circlip
|
08331-31199-000 |
— | ||
| replacement | |||||
|
18
|
18
09380-19004-000 RING,SNAP |
09380-19004-000 |
from US $1.64 |
||
|
19
|
19
24130-72100-000
Shaft, counter
TO 24130-72101, USED WITH,24671-63202,NT:32/29/22/14 |
24130-72100-000 |
— | ||
| replacement | |||||
|
19
|
19
24671-63202-000 GEAR,CTSHFT REVTO 24130-72101, USED WITH,24671-63202,NT:32/29/22/14 |
24671-63202-000 |
US $38.27 |
||
|
19
|
19
24130-72101-000
Shaft, counter
NT:32/29/22/14 E.NO.F8A-145056~ |
24130-72101-000 |
— | ||
|
19
|
19
24130-72102-000
Shaft, counter
NT:32/29/22/14 E.NO.F8A-243666~ |
24130-72102-000 |
— | ||
|
19
|
19
24130-72103-000
Shaft, counter
NT:32/29/22/14 E.NO.F8A-267825~ |
24130-72103-000 |
— | ||
| replacement | |||||
|
19
|
19
24130-72104-000 SHAFT,T/M COUNTERNT:32/29/22/14 E.NO.F8A-267825~ |
24130-72104-000 |
US $255.76 |
||
|
20
|
20
08113-62040-000
Bearing
|
08113-62040-000 |
— | ||
| replacement | |||||
|
20
|
20
09262-20069-000 BEARING(20X47X14) |
09262-20069-000 |
from US $11.52 |
||
|
21
|
21
08331-21479-000
Circlip
|
08331-21479-000 |
— | ||
| replacement | |||||
|
21
|
21
08331-41479-000 CIRCLIP |
08331-41479-000 |
from US $2.56 |
||
|
22
|
22
09241-47002-000
PLUG
|
09241-47002-000 |
— | ||
| replacement | |||||
|
22
|
22
09241-47009-000 PLUG |
09241-47009-000 |
US $4.10 |
||
|
23
|
23
24400-80811-000
Hub set, low speed
FROM 24400-80810 |
24400-80811-000 |
— | ||
| replacement | |||||
|
23
|
23
24400-80815-000
HUB SET,LOW SPEED
FROM 24400-80810 |
24400-80815-000 |
— | ||
|
24
|
24
24431-72143-000
リング,シンクロナイザ
FROM 24431-72142 |
24431-72143-000 |
— | ||
| replacement | |||||
|
24
|
24
24431-85020-000 RING,LOW SPEED SYNCFROM 24431-72142 |
24431-85020-000 |
US $72.80 |
||
|
25
|
25
09422-05009-000
Key, synchroniser
|
09422-05009-000 |
— | ||
| replacement | |||||
|
25
|
25
24471-60A00-000 KEY,SYNC |
24471-60A00-000 |
US $1.73 |
||
|
26
|
26
09388-00009-000 SPRING |
09388-00009-000 |
US $11 |
||
|
27
|
27
24400-80821-000
Hub set, high speed
FROM 24400-80820 |
24400-80821-000 |
— | ||
| replacement | |||||
|
27
|
27
24400-80832-000 HUB SET,HIGH SPEEDFROM 24400-80820 |
24400-80832-000 |
US $198.72 |
||
|
28
|
28
09160-21011-000 WASHER(21X28X1.5)E.NO.F8A-267825~ |
09160-21011-000 |
US $16.20 |
||
|
29
|
29
08331-31218-000 Circlip |
08331-31218-000 |
US $1.51 |
||
| replacement | |||||
|
29
|
29
08331-31219-000 CIRCLIP |
08331-31219-000 |
from US $1.38 |
||
|
30
|
30
24431-74034-000
リング,シンクロナイザ
FROM 24431-74033 |
24431-74034-000 |
— | ||
| replacement | |||||
|
30
|
30
24431-74050-000 RING,HIGH SPEED SYNCFROM 24431-74033 |
24431-74050-000 |
US $56.67 |
||
|
31
|
31
09422-05009-000
Key, synchroniser
|
09422-05009-000 |
— | ||
| replacement | |||||
|
31
|
31
24471-60A00-000 KEY,SYNC |
24471-60A00-000 |
US $1.73 |
||
|
32
|
32
09388-00007-000 SPRING |
09388-00007-000 |
US $12.90 |
||
| replacement | |||||
|
32
|
32
24443-80F00-000 SPRING,5TH SYNC |
24443-80F00-000 |
US $1.60 |
||
|
33
|
33
24551-63201-000
Shaft, reverse gear
FROM 24551-63200 |
24551-63201-000 |
— | ||
| replacement | |||||
|
33
|
33
24551-85100-000 SHAFT,REVERSE IDLE GEARFROM 24551-63200 |
24551-85100-000 |
US $17.30 |
||
|
34
|
34
09241-14001-000 PLUGTYPE 1 |
09241-14001-000 |
from US $9.95 |
||
|
35
|
35
25482-72000-000
Plate, shaft stopper
|
25482-72000-000 |
— | ||
| replacement | |||||
|
35
|
35
25482-72001-000 PLATE,SHAFT STOPPER |
25482-72001-000 |
US $2.58 |
||
|
36
|
36
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
36
|
36
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
37
|
37
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
37
|
37
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
38
|
38
24560-63201-000
Gear, reverse idle
TO 24561-63203, USED WITH,24551-63202,TYPE 1 |
24560-63201-000 |
— | ||
| replacements | |||||
|
38
|
38
24551-85100-000 SHAFT,REVERSE IDLE GEARTO 24561-63203, USED WITH,24551-63202,TYPE 1 |
24551-85100-000 |
US $17.30 |
||
|
38
|
38
24560-63203-000 GEAR,REV IDLER NT:17TO 24561-63203, USED WITH,24551-63202,TYPE 1 |
24560-63203-000 |
US $75.81 |
||
|
38
|
38
24560-63203-000 GEAR,REV IDLER NT:17TYPE 2,TYPE 3 |
24560-63203-000 |
US $75.81 |
||
|
39
|
39
24681-63201-000
Gear, mainshaft reverse
NT:27,L:25.9 |
24681-63201-000 |
— | ||
|
39
|
39
24681-63202-000 GEAR,MAIN SFT REV,NT:27NT:27,L:20 E.NO.F8A-145056~ |
24681-63202-000 |
US $58.51 |
||
|
40
|
40
24671-63201-000
Gear, countershaft reverse
NT:19,L:25.9 |
24671-63201-000 |
— | ||
|
40
|
40
24671-63202-000 GEAR,CTSHFT REVNT:19,L:20 E.NO.F8A-145056~ |
24671-63202-000 |
US $38.27 |
||
|
41
|
41
08331-31199-000
Circlip
|
08331-31199-000 |
— | ||
| replacement | |||||
|
41
|
41
09380-19004-000 RING,SNAP |
09380-19004-000 |
from US $1.64 |
||
|
42
|
42
26121-79200-000
Gear, speedometer drive
NT:2 |
26121-79200-000 |
— | ||
| replacement | |||||
|
42
|
42
26121-79500-000
GEAR,SPDOM DRIVE
NT:2 |
26121-79500-000 |
— | ||
|
42
|
42
26121-79201-000
Gear, speedometer drive
NT:3 E.NO.F8A-286724~ |
26121-79201-000 |
— | ||
| replacement | |||||
|
42
|
42
26121-79203-000 GEAR,SPDOM DRIVENT:3 E.NO.F8A-286724~ |
26121-79203-000 |
US $29.81 |
||
|
43
|
43
08331-31199-000
Circlip
|
08331-31199-000 |
— | ||
| replacement | |||||
|
43
|
43
09380-19004-000 RING,SNAP |
09380-19004-000 |
from US $1.64 |
||
|
44
|
44
26131-79200-000
Gear, speedometer driven
NT:9 |
26131-79200-000 |
— | ||
| replacement | |||||
|
44
|
44
26131-77300-000
GEAR,SPDOM DRIVEN
NT:9 |
26131-77300-000 |
— | ||
|
44
|
44
26131-79201-000 GEAR,SPDOM DRIVENNT:14 E.NO.F8A-286724~ |
26131-79201-000 |
US $24.29 |
||
|
45
|
45
09160-08003-000 WASHER(8X13.7X1)Washer (8x13.7x1) |
09160-08003-000 |
from US $1.60 |
||
|
46
|
46
09300-08014-000
ブッシング,ID:8,L:18
|
09300-08014-000 |
— | ||
| replacement | |||||
|
46
|
46
09300-08017-000 BUSH(8X16X18) |
09300-08017-000 |
US $25.80 |
||
|
47
|
47
09282-08001-000 SEAL,OIL(8X16X5) |
09282-08001-000 |
US $2.31 |
||
|
48
|
48
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
48
|
48
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
