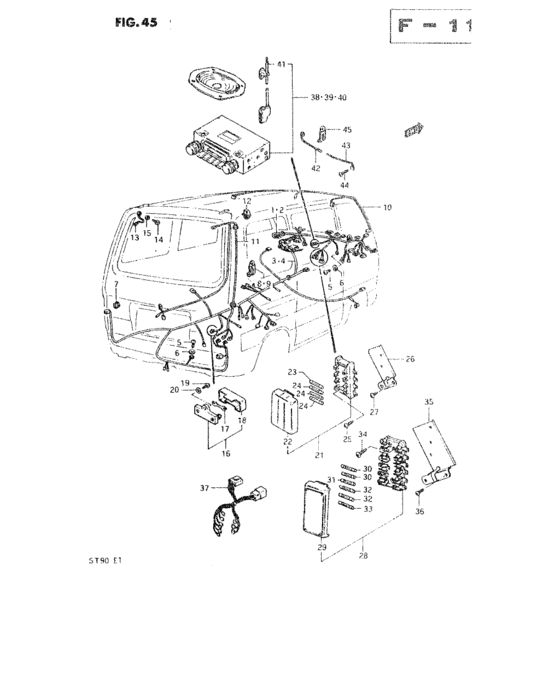

Wiring harness (TYPE 1,TYPE 2:ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-79000-000
Wiring harness, no.1
TYPE 1,RHD |
36610-79000-000 |
— | ||
|
1
|
1
36610-79711-000
Wiring harness, no.1
TYPE 1,LHD |
36610-79711-000 |
— | ||
|
1
|
1
36610-79721-000
Wiring harness, no.1
TYPE 1,DEL:RHD, |
36610-79721-000 |
— | ||
|
1
|
1
36610-79730-000
Wiring harness, no.1
TYPE 1,DEL:LHD |
36610-79730-000 |
— | ||
|
1
|
1
36610-79740-000
Wiring harness, no.1
TO 36610-79741 USED WITH,36860-79740,TYPE 1,Germany |
36610-79740-000 |
— | ||
|
1
|
1
36610-79200-000
Wiring harness, no.1
TYPE 1,Australia |
36610-79200-000 |
— | ||
|
2
|
2
36610-79001-000
Wiring harness, no.1
TYPE 2,RHD |
36610-79001-000 |
— | ||
|
2
|
2
36610-79712-000
Wiring harness, no.1
TYPE 2,LHD |
36610-79712-000 |
— | ||
|
2
|
2
36610-79722-000
Wiring harness, no.1
TYPE 2,DEL:RHD,,4 |
36610-79722-000 |
— | ||
|
2
|
2
36610-79750-000
Wiring harness, no.1
TYPE 2,DEL:LHD |
36610-79750-000 |
— | ||
|
2
|
2
36610-79741-000
Wiring harness, no.1
TYPE 2,Germany,Austria |
36610-79741-000 |
— | ||
|
3
|
3
36620-79610-000
Wiring harness, no.2
TO 36620-79611 USED WITH,37820-73000,TYPE 1 |
36620-79610-000 |
— | ||
| replacement | |||||
|
3
|
3
37820-820P0-000 SWITCH ASSY,OIL PRESSURETO 36620-79611 USED WITH,37820-73000,TYPE 1 |
37820-820P0-000 |
from US $12.02 |
||
|
3
|
3
36620-79702-000
Wiring harness, no.2
TYPE 1,FROM 36620-79611 |
36620-79702-000 |
— | ||
|
3
|
3
36620-79600-000
Wiring harness, no.2
TO 36620-79601 USED WITH,37820-73000,TYPE 1,Australia |
36620-79600-000 |
— | ||
| replacement | |||||
|
3
|
3
37820-820P0-000 SWITCH ASSY,OIL PRESSURETO 36620-79601 USED WITH,37820-73000,TYPE 1,Australia |
37820-820P0-000 |
from US $12.02 |
||
|
3
|
3
36620-79602-000
Wiring harness, no.2
TYPE 1,DEL, |
36620-79602-000 |
— | ||
|
3
|
3
36620-79740-000
Wiring harness, no.2
TYPE 1,Germany |
36620-79740-000 |
— | ||
|
4
|
4
36620-79703-000
Wiring harness, no.2
TYPE 2 |
36620-79703-000 |
— | ||
|
4
|
4
36620-79705-000
Wiring harness, no.2
USED TO FIG33 REF.NO.32 TYPE,TYPE 2 |
36620-79705-000 |
— | ||
|
4
|
4
36620-79603-000
Wiring harness, no.2
TYPE 2:DEL,,4 |
36620-79603-000 |
— | ||
|
4
|
4
36620-79605-000
Wiring harness, no.2
USED TO FIG34 REF.NO.33 TYPE,TYPE,2:DEL,,4 |
36620-79605-000 |
— | ||
|
4
|
4
36620-79740-000
Wiring harness, no.2
Germany |
36620-79740-000 |
— | ||
|
4
|
4
36620-79741-000
Wiring harness, no.2
USED TO FIG34 REF.NO.33 TYPE,Germany,Austria |
36620-79741-000 |
— | ||
|
5
|
5
03111-05128-000
Screw
|
03111-05128-000 |
— | ||
| replacement | |||||
|
5
|
5
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
6
|
6
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
7
|
7
09308-08007-000 GROMMET |
09308-08007-000 |
US $1.76 |
||
|
8
|
8
09404-06412-000
Clamp
L:60 |
09404-06412-000 |
— | ||
| replacements | |||||
|
8
|
8
09404-06432-000
CLAMP(L:65)
L:60 |
09404-06432-000 |
— | ||
|
8
|
8
09404-06039-000 Clamp(L:65)L:60 |
09404-06039-000 |
from US $1.82 |
||
|
9
|
9
09404-06414-000
Clamp (l:80)
L:80 LHD |
09404-06414-000 |
— | ||
| replacements | |||||
|
9
|
9
09404-06434-000
CLAMP(L:80 T:1.0)
L:80 LHD |
09404-06434-000 |
— | ||
|
9
|
9
09404-06433-000
CLAMP(L:80)
L:80 LHD |
09404-06433-000 |
— | ||
|
9
|
9
09404-06436-000 Clamp(L:80)L:80 LHD |
09404-06436-000 |
from US $2.13 |
||
|
9
|
9
09404-06036-000 Clamp(L:80)L:80 LHD |
09404-06036-000 |
from US $1.82 |
||
|
10
|
10
36630-79000-000
Wiring harness, side turn
|
36630-79000-000 |
— | ||
| replacement | |||||
|
10
|
10
36630-79010-000
HARNESS,TURN/ROOM LAMP
|
36630-79010-000 |
— | ||
|
11
|
11
36640-79500-000
Wiring harness, rear wiper
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Austria |
36640-79500-000 |
— | ||
|
12
|
12
09408-00030-000
Clip
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Austria |
09408-00030-000 |
— | ||
| replacement | |||||
|
12
|
12
09403-13409-000 CLAMPDEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Austria |
09403-13409-000 |
US $14 |
||
|
13
|
13
36891-79500-000
Lead wire, deforger earth
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Austria |
36891-79500-000 |
— | ||
|
14
|
14
03111-05128-000
Screw
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Austria |
03111-05128-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0512A-000 SCREWDEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Austria |
03111-0512A-000 |
from US $0.80 |
||
|
15
|
15
08322-21058-000
Washer
DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Austria |
08322-21058-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01057-000 WASHERWasher, front hook holder DEL,Finland,Switzerland,Germany,Australia,Holland,New Zealand,Austria |
08322-01057-000 |
from US $0.80 |
||
|
16
|
16
36740-71311-000
CASE ASSY,FUSE
FROM 76740-71310 |
36740-71311-000 |
— | ||
|
17
|
17
09481-30001-000 FUSE(30A) |
09481-30001-000 |
US $15.50 |
||
|
18
|
18
36742-71310-000
Cover
|
36742-71310-000 |
— | ||
|
19
|
19
03111-05168-000
New Genuine Part
|
03111-05168-000 |
— | ||
| replacement | |||||
|
19
|
19
03111-0516A-000 SCREW |
03111-0516A-000 |
from US $0.80 |
||
|
20
|
20
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
20
|
20
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
21
|
21
36710-78201-000
Fuse box assy
FROM 36710-78200 |
36710-78201-000 |
— | ||
| replacement | |||||
|
21
|
21
36710-78210-000
BOX ASSY,FUSE
FROM 36710-78200 |
36710-78210-000 |
— | ||
|
22
|
22
36717-78201-000
Cover,fuse box
FROM 36717-78200 |
36717-78201-000 |
— | ||
|
23
|
23
09481-20001-000 FUSE(20A) |
09481-20001-000 |
from US $1.28 |
||
|
24
|
24
09481-15001-000 FUSE(15A)Fuse (15a) |
09481-15001-000 |
from US $1.28 |
||
|
25
|
25
03111-05208-000
Screw
|
03111-05208-000 |
— | ||
| replacement | |||||
|
25
|
25
03111-0520A-000 SCREW |
03111-0520A-000 |
US $0.80 |
||
|
26
|
26
36791-79500-000
Bracket, fuse box
LHD |
36791-79500-000 |
— | ||
|
27
|
27
03111-06128-000
Screw
LHD |
03111-06128-000 |
— | ||
| replacement | |||||
|
27
|
27
03111-0612A-000 SCREWLHD |
03111-0612A-000 |
US $0.80 |
||
|
28
|
28
36710-73341-000
Fuse box assy
Germany,Austria |
36710-73341-000 |
— | ||
|
29
|
29
36717-73341-000
Cover
Germany,Austria |
36717-73341-000 |
— | ||
|
30
|
30
09481-05001-000 FUSE(5A)Germany,Austria |
09481-05001-000 |
US $9.20 |
||
|
31
|
31
09481-10001-000 FUSE(10A)Germany,Austria |
09481-10001-000 |
from US $1.28 |
||
|
32
|
32
09481-20001-000 FUSE(20A)Germany,Austria |
09481-20001-000 |
from US $1.28 |
||
|
33
|
33
09481-15001-000 FUSE(15A)Fuse (15a) Germany,Austria |
09481-15001-000 |
from US $1.28 |
||
|
34
|
34
03111-05208-000
Screw
Germany,Austria |
03111-05208-000 |
— | ||
| replacement | |||||
|
34
|
34
03111-0520A-000 SCREWGermany,Austria |
03111-0520A-000 |
US $0.80 |
||
|
35
|
35
36791-79700-000
Bracket, fuse box
Germany,Austria |
36791-79700-000 |
— | ||
|
36
|
36
03111-06128-000
Screw
Germany,Austria |
03111-06128-000 |
— | ||
| replacement | |||||
|
36
|
36
03111-0612A-000 SCREWGermany,Austria |
03111-0612A-000 |
US $0.80 |
||
|
37
|
37
36860-79740-000
Lead wire, fuse box
Germany,Austria |
36860-79740-000 |
— | ||
|
38
|
38
39100-79010-000
Radio assy
|
39100-79010-000 |
— | ||
|
39
|
39
39100-79200-000
Radio assy
|
39100-79200-000 |
— | ||
|
40
|
40
39100-79210-000
Radio assy
,Finland,Switzerland,Belgium,2,5,Austria |
39100-79210-000 |
— | ||
|
41
|
41
39250-78300-000
アンテナアッシ
FROM 39250-78400 |
39250-78300-000 |
— | ||
| replacements | |||||
|
41
|
41
39250-80C00-000
ANTENNA ASSY
FROM 39250-78400 |
39250-80C00-000 |
— | ||
|
41
|
41
39250-80C10-000 ANTENNA ASSYFROM 39250-78400 |
39250-80C10-000 |
US $43.20 |
||
|
42
|
42
39191-79030-000
Lead wire, tuner earth no.1
|
39191-79030-000 |
— | ||
|
43
|
43
39192-79001-000
Lead wire, tuner earth no.2
FROM 39192-79000 |
39192-79001-000 |
— | ||
|
44
|
44
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
44
|
44
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
45
|
45
09404-06401-000
Clamp, oil hose
|
09404-06401-000 |
— | ||
| replacements | |||||
|
45
|
45
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
45
|
45
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
45
|
45
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
45
|
45
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
