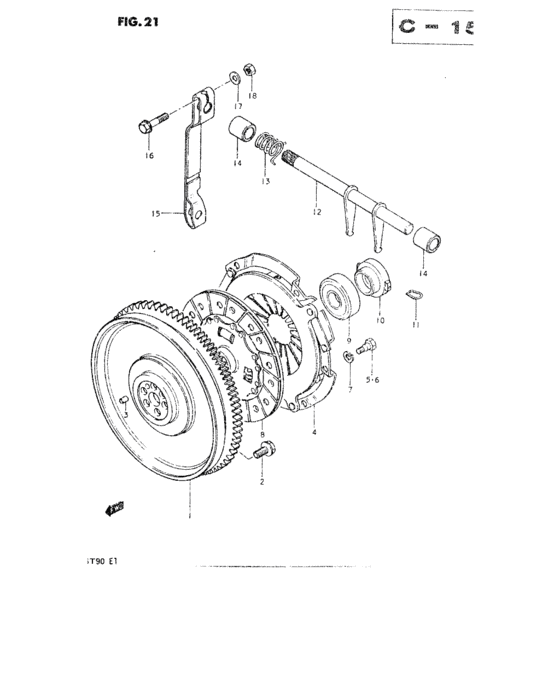

Clutch (CLUTCH) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12620-79200-000
Flywheel
|
12620-79200-000 |
— | ||
| replacement | |||||
|
1
|
1
12620-85301-000 FLYWHEEL |
12620-85301-000 |
US $328 |
||
|
2
|
2
09103-10011-000
Bolt, flywheel
|
09103-10011-000 |
— | ||
| replacement | |||||
|
2
|
2
09103-10097-000 BOLT(10X17) |
09103-10097-000 |
US $1.12 |
||
|
3
|
3
04221-06129-000 PIN |
04221-06129-000 |
from US $0.96 |
||
|
4
|
4
22100-77021-000
Cover assy, clutch
FROM 22100-77020 |
22100-77021-000 |
— | ||
| replacement | |||||
|
4
|
4
22100-85200-000 COVER ASSY,CLUTCHFROM 22100-77020 |
22100-85200-000 |
US $166.40 |
||
|
5
|
5
09111-08035-000 BOLT(8X20) |
09111-08035-000 |
US $1.44 |
||
|
6
|
6
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
7
|
7
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
8
|
8
22400-72022-000
Disk, clutch
FROM 22400-72021 |
22400-72022-000 |
— | ||
| replacement | |||||
|
8
|
8
22400-85141-000 DISC,CLUTCHFROM 22400-72021 |
22400-85141-000 |
US $84.80 |
||
|
9
|
9
09269-38001-000 BEARING(38.1X67X16.5) |
09269-38001-000 |
from US $62.58 |
||
|
10
|
10
23161-65002-000 RETAINER,BEARING |
23161-65002-000 |
US $46.40 |
||
|
11
|
11
09448-12005-000 SPRING |
09448-12005-000 |
from US $2.08 |
||
|
12
|
12
23260-79100-000
Shaft, clutch release
|
23260-79100-000 |
— | ||
| replacement | |||||
|
12
|
12
23260-79101-000 SHAFT,CLUTCH RELEASE |
23260-79101-000 |
US $19.87 |
||
|
13
|
13
09448-20004-000 SPRING |
09448-20004-000 |
US $18 |
||
|
14
|
14
09300-14009-000
BUSH(14X24X15)
|
09300-14009-000 |
— | ||
|
14
|
14
09300-14010-000
Bush, shaft
E.NO.F8A-187107~ |
09300-14010-000 |
— | ||
| replacement | |||||
|
14
|
14
09300-14017-000 BUSH(14X22X15)E.NO.F8A-187107~ |
09300-14017-000 |
from US $2.13 |
||
|
15
|
15
23266-80000-000
Arm, clutch release
|
23266-80000-000 |
— | ||
| replacement | |||||
|
15
|
15
23266-77302-000 ARM,CLUTCH RELEASE |
23266-77302-000 |
US $10.34 |
||
|
16
|
16
01517-08358-000
Bolt
|
01517-08358-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-08357-000 BOLT |
01550-08357-000 |
from US $1.06 |
||
|
17
|
17
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
17
|
17
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
18
|
18
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
18
|
18
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
