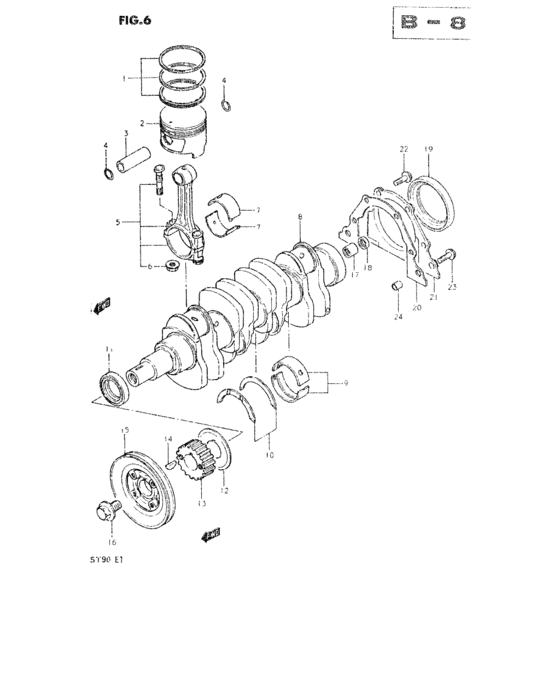

Crankshaft (CRANKSHAFT) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-73010-000
リングセット,ピストン STD
|
12140-73010-000 |
— | ||
| replacement | |||||
|
1
|
1
12140-73011-000
RING SET,PISTON
|
12140-73011-000 |
— | ||
|
1
|
1
12140-73010-025
Ring set, piston
|
12140-73010-025 |
— | ||
| replacement | |||||
|
1
|
1
12140-73011-025 RING SET,PISTON OS:0.25 |
12140-73011-025 |
US $30.23 |
||
|
1
|
1
12140-73010-050
Ring set, piston
|
12140-73010-050 |
— | ||
| replacement | |||||
|
1
|
1
12140-73011-050
RING SET,PISTON OS:0.50
|
12140-73011-050 |
— | ||
|
2
|
2
12111-78110-000
Piston
FROM 12111-73002 |
12111-78110-000 |
— | ||
| replacement | |||||
|
2
|
2
12111-78111-0B0
Piston,std
FROM 12111-73002 |
12111-78111-0B0 |
— | ||
|
2
|
2
12111-78110-025
Piston
FROM 12111-73002-025 |
12111-78110-025 |
— | ||
| replacement | |||||
|
2
|
2
12111-78111-025
Piston
FROM 12111-73002-025 |
12111-78111-025 |
— | ||
|
2
|
2
12111-78110-050
Piston
FROM 12111-73002-050 |
12111-78110-050 |
— | ||
| replacement | |||||
|
2
|
2
12111-78111-050
PISTON,OS:0.50
FROM 12111-73002-050 |
12111-78111-050 |
— | ||
|
3
|
3
12151-78110-000
Pin piston
FROM 12151-18001 |
12151-78110-000 |
— | ||
| replacement | |||||
|
3
|
3
12151-60D00-000 PIN,PISTONFROM 12151-18001 |
12151-60D00-000 |
from US $19.92 |
||
|
4
|
4
09381-16001-000 RING,SNAPCirclip |
09381-16001-000 |
from US $1.06 |
||
|
5
|
5
12160-73001-000
ロッドアッシ,コネクチング
FROM 12160-73000 |
12160-73001-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-73020-000 CONNROD ASSYFROM 12160-73000 |
12160-73020-000 |
US $104.80 |
||
|
6
|
6
09159-08033-000 NUT |
09159-08033-000 |
from US $1.34 |
||
|
7
|
7
12181-73001-000
Bearing, connecting
STD |
12181-73001-000 |
— | ||
| replacement | |||||
|
7
|
7
12181-81051-0A0 BEARING,CONNROD STDSTD |
12181-81051-0A0 |
US $12.46 |
||
|
7
|
7
12181-73001-025
Bearing, connecting
US:0.25 (T:1.625) |
12181-73001-025 |
— | ||
| replacement | |||||
|
7
|
7
12181-81051-025 BEARING,CONNROD US:0.25US:0.25 (T:1.625) |
12181-81051-025 |
US $13.12 |
||
|
7
|
7
12181-73001-050
Bearing, connecting
US:0.5 (T:1.75) |
12181-73001-050 |
— | ||
| replacement | |||||
|
7
|
7
12181-81051-050 BEARING,CONNROD US:0.5US:0.5 (T:1.75) |
12181-81051-050 |
US $19.28 |
||
|
8
|
8
12221-73001-000
Crankshaft
FROM 12221-73000 |
12221-73001-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-73004-000
CRANKSHAFT
FROM 12221-73000 |
12221-73004-000 |
— | ||
|
9
|
9
12300-73811-0A0
Jeu coussinets
STD (T:2.0) FROM 12300-73811 |
12300-73811-0A0 |
— | ||
| replacement | |||||
|
9
|
9
12300-73812-0A0 BEARING SET,CRANKSHAFTSTD (T:2.0) FROM 12300-73811 |
12300-73812-0A0 |
US $113.71 |
||
|
9
|
9
12300-73811-025
Bearing set, crankshaft
US:0.25 (T:2.125) |
12300-73811-025 |
— | ||
| replacement | |||||
|
9
|
9
12300-73812-025 BEARING SET,CRANKSHAFTUS:0.25 (T:2.125) |
12300-73812-025 |
US $155.20 |
||
|
9
|
9
12300-73811-050
Bearing set, crankshaft
US:0.5 (T:2.25) |
12300-73811-050 |
— | ||
| replacement | |||||
|
9
|
9
12300-73812-050 BEARING SET,CRANKSHAFTUS:0.5 (T:2.25) |
12300-73812-050 |
US $113.71 |
||
|
10
|
10
12300-73830-000 BEARING SET,CRANK THRUST STDSTD (T:2.5) |
12300-73830-000 |
US $11.92 |
||
|
10
|
10
12300-73830-012 BEARING SET,CRANK THRUSTOS:0.125 (T:2.563) |
12300-73830-012 |
US $13.73 |
||
|
10
|
10
12300-73830-025 BEARING SET,CRANK THRUSTOS:0.25 (T:2.625) |
12300-73830-025 |
US $13.73 |
||
|
11
|
11
09283-32025-000
Oil seal, crank front
|
09283-32025-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
12
|
12
12635-73001-000 GUIDE,TIMING BELT |
12635-73001-000 |
US $2.13 |
||
|
13
|
13
12631-73001-000
PULLEY,CRANK TIMING BELT
|
12631-73001-000 |
— | ||
|
14
|
14
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.49 |
||
|
15
|
15
12611-75100-000
Pulley, crank
|
12611-75100-000 |
— | ||
| replacement | |||||
|
15
|
15
12611-75101-000 PULLEY,CRANKSHAFT |
12611-75101-000 |
US $38.27 |
||
|
16
|
16
09103-12002-000
ボルト,12X20
|
09103-12002-000 |
— | ||
| replacement | |||||
|
16
|
16
09103-12002-XC0 BOLT(12X20) |
09103-12002-XC0 |
US $2.43 |
||
|
17
|
17
09263-10003-000 BEARING(10X15X15) |
09263-10003-000 |
US $4.64 |
||
|
18
|
18
09282-10001-000 SEAL,OIL(10X17X5)Cl rel arm shft o sl |
09282-10001-000 |
from US $1.85 |
||
|
19
|
19
09283-60005-000
OIL SEAL
FROM 09283-60004 |
09283-60005-000 |
— | ||
| replacement | |||||
|
19
|
19
09283-60009-000 SEAL,OIL(60X80X8)FROM 09283-60004 |
09283-60009-000 |
from US $17.91 |
||
|
20
|
20
11349-73002-000
ガスケット,オイルシールハウジング
FROM 11349-73001 |
11349-73002-000 |
— | ||
| replacement | |||||
|
20
|
20
11349-73010-000 GASKET,OIL SEAL HSGFROM 11349-73001 |
11349-73010-000 |
US $5.76 |
||
|
21
|
21
11341-73000-000
ハウジング,オイルシール
|
11341-73000-000 |
— | ||
| replacement | |||||
|
21
|
21
11341-73001-000 HOUSING,OIL SEAL |
11341-73001-000 |
US $32 |
||
|
22
|
22
01517-06208-000
Bolt
|
01517-06208-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-06207-000 BOLT |
01550-06207-000 |
from US $0.80 |
||
|
23
|
23
01517-06258-000
Bolt
|
01517-06258-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-06257-000 BOLT |
01550-06257-000 |
from US $0.96 |
||
|
24
|
24
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.96 |
||
