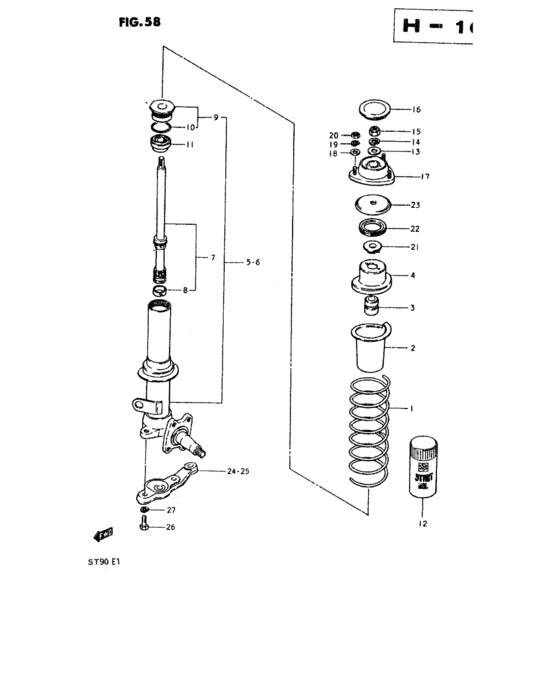

Front suspension (TYPE 1,TYPE 2) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-79220-000
Coil spring, front
|
41111-79220-000 |
— | ||
| replacement | |||||
|
1
|
1
41111-79230-000 SPRING,FRONT COIL |
41111-79230-000 |
US $108.80 |
||
|
1
|
1
41111-79230-000 SPRING,FRONT COILTYPE 2:China |
41111-79230-000 |
US $108.80 |
||
|
2
|
2
41211-67050-000 RUBBER SEAT,SPRING |
41211-67050-000 |
US $15.36 |
||
|
3
|
3
42111-72020-000
Bumper, spring
|
42111-72020-000 |
— | ||
| replacement | |||||
|
3
|
3
42111-85400-000 STOPPER,FR BUMP |
42111-85400-000 |
US $14.40 |
||
|
4
|
4
41231-78001-000 SEAT,SPRING UPPERFROM 41231-78000 |
41231-78001-000 |
US $8.48 |
||
|
5
|
5
41601-79040-000
Strut assy, rh
FROM 41601-79030 |
41601-79040-000 |
— | ||
| replacement | |||||
|
5
|
5
41601-79050-000
STRUT ASSY,FR SUSPENSION,R
FROM 41601-79030 |
41601-79050-000 |
— | ||
|
6
|
6
41602-79040-000
Strut assy, lh
FROM 41602-79030 |
41602-79040-000 |
— | ||
| replacement | |||||
|
6
|
6
41602-79050-000 STRUT ASSY,FR SUSPENSION,LFROM 41602-79030 |
41602-79050-000 |
US $428.06 |
||
|
7
|
7
41640-79010-000
Rod assy
KAYABA |
41640-79010-000 |
— | ||
| replacement | |||||
|
7
|
7
41640-79050-000
ROD ASSY
KAYABA |
41640-79050-000 |
— | ||
|
7
|
7
41640-79031-000
Rod assy
SYOWA FROM 41640-79030 |
41640-79031-000 |
— | ||
| replacement | |||||
|
7
|
7
41640-79032-000 ROD,STRUTSYOWA FROM 41640-79030 |
41640-79032-000 |
US $114.40 |
||
|
8
|
8
41641-67010-000 RING,ABSORBER PISTONKAYABA |
41641-67010-000 |
US $4.53 |
||
|
8
|
8
41641-79030-000 RING,PISTONSYOWA |
41641-79030-000 |
US $5.28 |
||
|
9
|
9
41650-67010-000
Seal,strut
KAYABA |
41650-67010-000 |
— | ||
|
9
|
9
41650-67030-000
SEAL
SYOWA |
41650-67030-000 |
— | ||
|
10
|
10
41651-60010-000 O-RINGKAYABA |
41651-60010-000 |
US $2.61 |
||
|
10
|
10
41651-60030-000 SEALSYOWA |
41651-60030-000 |
US $8.16 |
||
|
11
|
11
41660-79010-000
BUSH
KAYABA |
41660-79010-000 |
— | ||
|
11
|
11
41660-79030-000 GUIDESYOWA |
41660-79030-000 |
US $11.20 |
||
|
12
|
12
41661-60010-000
Strut oil
|
41661-60010-000 |
— | ||
|
13
|
13
08322-11148-000
Washer
|
08322-11148-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-01147-000 WASHER |
08322-01147-000 |
from US $0.80 |
||
|
14
|
14
08321-31148-000
Lock washer
|
08321-31148-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-0114A-000 WASHER,LOCK |
08321-0114A-000 |
from US $0.80 |
||
|
15
|
15
09159-14008-000 NUT |
09159-14008-000 |
US $1.60 |
||
|
16
|
16
09250-32002-000
Cap,steering br
|
09250-32002-000 |
— | ||
|
17
|
17
41710-79021-000
Support, front strut
FROM 41710-79020 |
41710-79021-000 |
— | ||
| replacement | |||||
|
17
|
17
41700-79810-000
SUPPORT SET,STRUT
FROM 41710-79020 |
41700-79810-000 |
— | ||
|
18
|
18
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
19
|
19
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
20
|
20
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
20
|
20
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
21
|
21
45812-79000-000 THRUST WASHER,STRUTFROM 45812-67030 |
45812-79000-000 |
US $11.10 |
||
|
22
|
22
41732-79000-000 DUST SEAL,STRUT BEARING |
41732-79000-000 |
US $1.60 |
||
|
23
|
23
41741-79001-000
Seat, bearing
FROM 41741-79000 |
41741-79001-000 |
— | ||
|
24
|
24
45121-79000-000
Arm, steering knuckle rh
|
45121-79000-000 |
— | ||
|
24
|
24
45121-79010-000 ARM,STEERING KNUCKLE,RST90-125837~ ST90-755359~,ST90K105002~ ST90V125017~ |
45121-79010-000 |
US $40.80 |
||
|
25
|
25
45161-79000-000
Arm, steering knuckle lh
|
45161-79000-000 |
— | ||
|
25
|
25
45161-79010-000 ARM,STEERING KNUCKLE,LST90-125837~ ST90-755359~,ST90K105002~ ST90V125017~ |
45161-79010-000 |
US $40.80 |
||
|
26
|
26
09100-10048-000 BOLT(10X35) |
09100-10048-000 |
US $1.76 |
||
|
27
|
27
08321-31108-000
Lock washer
|
08321-31108-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
