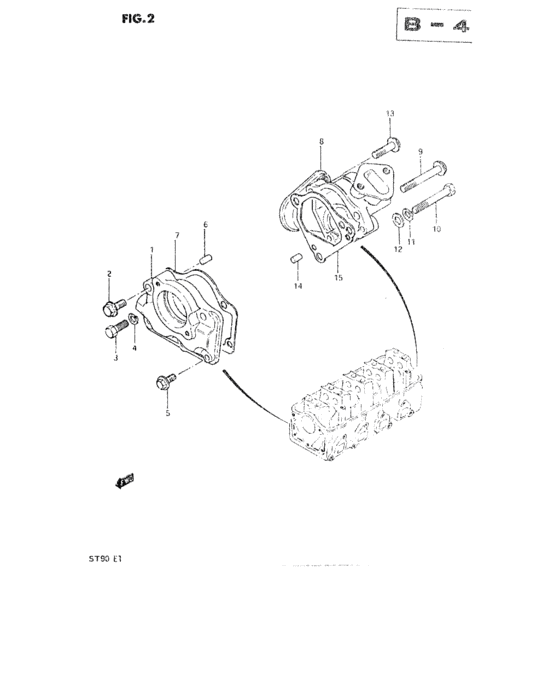

Head side case (HEAD SIDE CASE) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11151-73001-000
Case, cylinder head side
TO 11151-73002, USED WITH,01107-08208 (3PCS.) AND,08321-21088 (3PCS.) |
11151-73001-000 |
— | ||
| replacements | |||||
|
1
|
1
11151-73002-000
CASE,CYLINDERL HEAD SIDE
TO 11151-73002, USED WITH,01107-08208 (3PCS.) AND,08321-21088 (3PCS.) |
11151-73002-000 |
— | ||
|
1
|
1
01500-08207-000 BoltTO 11151-73002, USED WITH,01107-08208 (3PCS.) AND,08321-21088 (3PCS.) |
01500-08207-000 |
from US $0.76 |
||
|
1
|
1
08321-01087-000 WASHER,LOCKWasher, lock TO 11151-73002, USED WITH,01107-08208 (3PCS.) AND,08321-21088 (3PCS.) |
08321-01087-000 |
from US $0.76 |
||
|
1
|
1
01107-08208-000
Bolt
TO 11151-73002, USED WITH,01107-08208 (3PCS.) AND,08321-21088 (3PCS.) |
01107-08208-000 |
— | ||
|
1
|
1
08321-21088-000
Lock washer
TO 11151-73002, USED WITH,01107-08208 (3PCS.) AND,08321-21088 (3PCS.) |
08321-21088-000 |
— | ||
|
1
|
1
11151-73002-000
CASE,CYLINDERL HEAD SIDE
E.NO.F8A-211352~ |
11151-73002-000 |
— | ||
|
2
|
2
01517-08208-000
Bolt
|
01517-08208-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-08207-000 BOLT |
01550-08207-000 |
from US $0.96 |
||
|
3
|
3
01107-08208-000
Bolt
E.NO.F8A-211352~ |
01107-08208-000 |
— | ||
|
4
|
4
08321-21088-000
Lock washer
E.NO.F8A-211352~ |
08321-21088-000 |
— | ||
|
5
|
5
01517-06168-000
Bolt
|
01517-06168-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
6
|
6
04221-06129-000 PIN |
04221-06129-000 |
from US $0.96 |
||
|
7
|
7
11159-73002-000
Gasket, side case
FROM 11159-73001 |
11159-73002-000 |
— | ||
| replacement | |||||
|
7
|
7
11159-73003-000
GASKET,CYL HEAD SIDE CASE
FROM 11159-73001 |
11159-73003-000 |
— | ||
|
8
|
8
11161-79100-000
CASE,DISTRIBUTOR
|
11161-79100-000 |
— | ||
|
9
|
9
01517-08608-000
Bolt
|
01517-08608-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-08607-000 BOLTBolt, throttle body |
01550-08607-000 |
from US $6.02 |
||
|
10
|
10
01107-08608-000
Bolt
|
01107-08608-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0860B-000 Bolt |
01500-0860B-000 |
from US $5.59 |
||
|
11
|
11
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
|
12
|
12
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
13
|
13
01517-08308-000
Bolt
|
01517-08308-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-08307-000 BOLT |
01550-08307-000 |
from US $1.07 |
||
|
14
|
14
04221-06129-000 PIN |
04221-06129-000 |
from US $0.96 |
||
|
15
|
15
11169-73001-000
Gasket, distrubutor case
|
11169-73001-000 |
— | ||
| replacement | |||||
|
15
|
15
11169-70D01-000 GASKET,DISTRIBUTOR CASE |
11169-70D01-000 |
US $2.56 |
||
