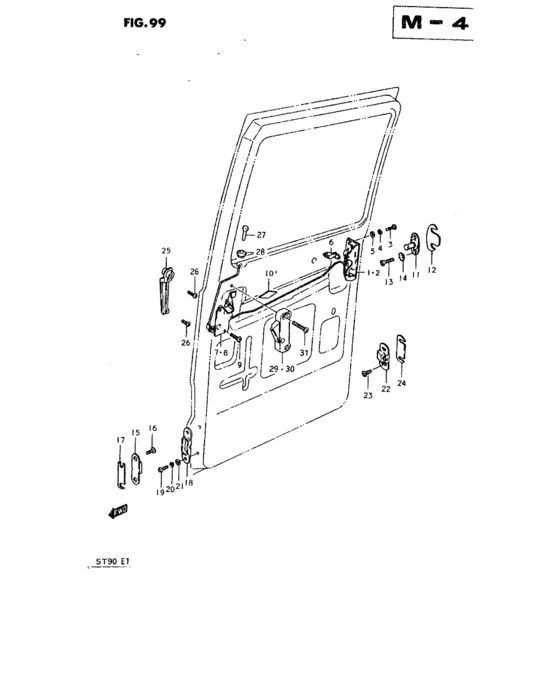

Rear door lock (ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77103-79500-000
LOCK ASSY,RR DR,R
|
77103-79500-000 |
— | ||
|
2
|
2
77104-79500-000 LOCK ASSY,RR DR,L |
77104-79500-000 |
US $53.73 |
||
|
3
|
3
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
4
|
4
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
5
|
5
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
6
|
6
09209-05016-000 PIN |
09209-05016-000 |
US $1.76 |
||
|
7
|
7
77640-79500-000 REMOTE CONTROL,HANDLE,R |
77640-79500-000 |
US $64.03 |
||
|
8
|
8
77660-79500-000 REMOTE CONTROL,HANDLE,L |
77660-79500-000 |
US $64.03 |
||
|
9
|
9
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
10
|
10
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
11
|
11
78130-79500-000 STRIKER,DOOR LOCK |
78130-79500-000 |
US $17 |
||
|
12
|
12
78199-79000-000 SPACER |
78199-79000-000 |
US $1.60 |
||
|
13
|
13
02122-08188-000
Screw
|
02122-08188-000 |
— | ||
| replacement | |||||
|
13
|
13
09126-08004-XC0 SCREW(8X18) |
09126-08004-XC0 |
US $13.20 |
||
|
14
|
14
08323-31088-000
Washer,lock
|
08323-31088-000 |
— | ||
| replacement | |||||
|
14
|
14
09163-08002-000 WASHER,LOCKRondelle |
09163-08002-000 |
US $7 |
||
|
15
|
15
78231-79500-000 STOPPER,SIDE DR CNTNR |
78231-79500-000 |
US $4.32 |
||
|
16
|
16
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
17
|
17
78281-79500-000
スペーサ,シャットストップ,フロント
|
78281-79500-000 |
— | ||
| replacement | |||||
|
17
|
17
82795-54F00-000 SPACER,RR DR STPR BODY |
82795-54F00-000 |
US $1.60 |
||
|
18
|
18
78232-79500-000 STOPPER,SIDE DOOR |
78232-79500-000 |
US $5.92 |
||
|
19
|
19
02112-06168-000
Screw, earth
|
02112-06168-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-06167-000 SCREW |
02112-06167-000 |
from US $0.80 |
||
|
20
|
20
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
21
|
21
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
22
|
22
78250-79500-000 SHUT STOPPER,REAR |
78250-79500-000 |
US $7.29 |
||
|
23
|
23
02142-06108-000
6 x 10 screw
|
02142-06108-000 |
— | ||
| replacement | |||||
|
23
|
23
02142-06107-000 SCREW |
02142-06107-000 |
from US $0.80 |
||
|
24
|
24
78282-79500-000
SPACER,SHUT STOPPER
|
78282-79500-000 |
— | ||
|
25
|
25
78330-79500-000
Handle, outside
TYPE 1,TYPE 2 |
78330-79500-000 |
— | ||
| replacement | |||||
|
25
|
25
78330-79600-000 HANDLE,OUTSIDETYPE 1,TYPE 2 |
78330-79600-000 |
US $52.45 |
||
|
25
|
25
78330-79600-000 HANDLE,OUTSIDETYPE 3 |
78330-79600-000 |
US $52.45 |
||
|
26
|
26
02142-06108-000
6 x 10 screw
TYPE 1,TYPE 2 |
02142-06108-000 |
— | ||
| replacement | |||||
|
26
|
26
02142-06107-000 SCREWTYPE 1,TYPE 2 |
02142-06107-000 |
from US $0.80 |
||
|
26
|
26
02142-06088-000
Screw 6 x 8
TYPE 3 |
02142-06088-000 |
— | ||
| replacement | |||||
|
26
|
26
02142-06087-000 SCREWTYPE 3 |
02142-06087-000 |
from US $0.77 |
||
|
27
|
27
78241-60002-000 KNOB |
78241-60002-000 |
US $1.52 |
||
|
28
|
28
78242-61000-000 CAP,LOCK KNOB |
78242-61000-000 |
US $1.60 |
||
|
29
|
29
78430-79600-281 HANDLE,RFROM 78430-79500-281 |
78430-79600-281 |
US $19.32 |
||
|
30
|
30
78440-79600-281 HANDLE,LFROM 78440-79500-281 |
78440-79600-281 |
US $19.32 |
||
|
31
|
31
02142-06357-000 SCREWScrew |
02142-06357-000 |
from US $1.37 |
||
