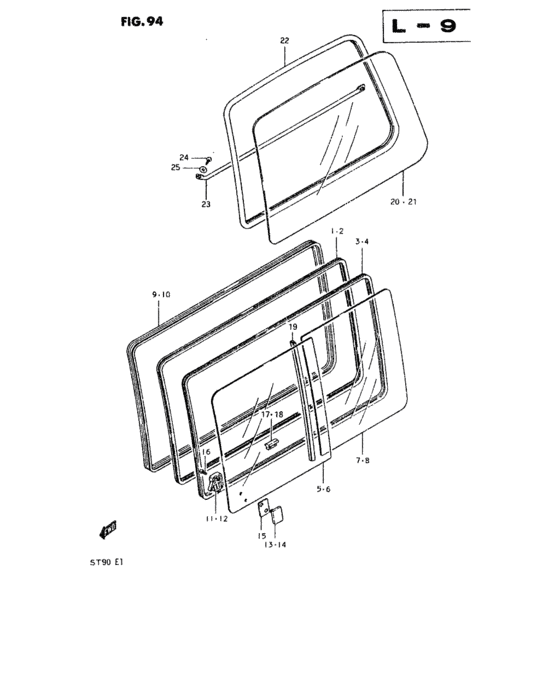

Side window (ST90V) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69130-79502-000 SASH,RR DOOR WINDOW RHFROM 69130-79501 |
69130-79502-000 |
US $81.33 |
||
|
2
|
2
69140-79502-000 SASH,RR DOOR WINDOW LHFROM 69140-79501 |
69140-79502-000 |
US $81.33 |
||
|
3
|
3
69151-79500-000
Run, rear door glass rh
TYPE 1,TYPE 2 |
69151-79500-000 |
— | ||
| replacement | |||||
|
3
|
3
69151-79501-000 RUN,RR DOOR GLASS RHTYPE 1,TYPE 2 |
69151-79501-000 |
US $60.05 |
||
|
3
|
3
69151-79501-000 RUN,RR DOOR GLASS RHTYPE 3 |
69151-79501-000 |
US $60.05 |
||
|
4
|
4
69161-79501-000 RUN,RR DOOR GLASS LHFROM 69161-79500 |
69161-79501-000 |
US $60.05 |
||
|
5
|
5
79641-79510-000
Glass, rear door front rh
T:4.0 |
79641-79510-000 |
— | ||
| replacement | |||||
|
5
|
5
79641-79611-000
GLASS,RR DR FR,R
T:4.0 |
79641-79611-000 |
— | ||
|
5
|
5
79641-79611-000
GLASS,RR DR FR,R
T:3.5 |
79641-79611-000 |
— | ||
|
6
|
6
79646-79510-000
Glass, rear door front lh
T:4.0 |
79646-79510-000 |
— | ||
| replacement | |||||
|
6
|
6
79646-79611-000
GLASS,RR DR FR,L
T:4.0 |
79646-79611-000 |
— | ||
|
6
|
6
79646-79611-000
GLASS,RR DR FR,L
T:3.5 |
79646-79611-000 |
— | ||
|
7
|
7
79651-79510-000
Glass, rear door rear rh
T:4.0 |
79651-79510-000 |
— | ||
|
7
|
7
79651-79611-000
Glass, rear door rear rh
T:3.5 |
79651-79611-000 |
— | ||
|
8
|
8
79656-79510-000
Glass, rear door rear lh
T:4.0 |
79656-79510-000 |
— | ||
| replacement | |||||
|
8
|
8
79656-79611-000
GLASS,RR DR RR,L
T:4.0 |
79656-79611-000 |
— | ||
|
8
|
8
79656-79611-000
GLASS,RR DR RR,L
T:3.5 |
79656-79611-000 |
— | ||
|
9
|
9
79741-79500-000
Weatherstrip, rh
|
79741-79500-000 |
— | ||
| replacement | |||||
|
9
|
9
79741-79501-000 WEATHERSTRIP,R |
79741-79501-000 |
US $68 |
||
|
10
|
10
79742-79500-000
Weatherstrip, lh
|
79742-79500-000 |
— | ||
| replacement | |||||
|
10
|
10
79742-79501-000 WEATHERSTRIP,L |
79742-79501-000 |
US $68 |
||
|
11
|
11
69170-79501-000 LOCK,SIDE WINDOW RH |
69170-79501-000 |
US $51.20 |
||
|
12
|
12
69180-79501-000 LOCK,SIDE WINDOW LH |
69180-79501-000 |
US $51.20 |
||
|
13
|
13
69175-79500-000
Cover, lock rh
GLASS:T:4.0 TO 69175-79502 |
69175-79500-000 |
— | ||
| replacement | |||||
|
13
|
13
69175-79502-000 COVER,RR WINDOW LOCK RHGLASS:T:4.0 TO 69175-79502 |
69175-79502-000 |
US $5.37 |
||
|
13
|
13
69175-79502-000 COVER,RR WINDOW LOCK RHGLASS:T:3.5 |
69175-79502-000 |
US $5.37 |
||
|
14
|
14
69185-79500-000
Cover, lock lh
GLASS:T:4.0 TO 69185-79502 |
69185-79500-000 |
— | ||
| replacement | |||||
|
14
|
14
69185-79502-000 COVER,RR WINDOW LOCK LHGLASS:T:4.0 TO 69185-79502 |
69185-79502-000 |
US $5.37 |
||
|
14
|
14
69185-79502-000 COVER,RR WINDOW LOCK LHGLASS:T:3.5 |
69185-79502-000 |
US $5.37 |
||
|
15
|
15
69176-79500-000 GASKET,RR DOOR WINDOW LOCK |
69176-79500-000 |
US $2.17 |
||
|
16
|
16
02132-04208-000
Screw
|
02132-04208-000 |
— | ||
| replacement | |||||
|
16
|
16
02122-0420A-000 SCREW |
02122-0420A-000 |
from US $3.04 |
||
|
17
|
17
69191-79600-000
Stopper, front glass
Germany,Austria |
69191-79600-000 |
— | ||
|
18
|
18
69177-79500-000 STOPPER,RR WINDOW GLASS |
69177-79500-000 |
US $2.17 |
||
|
19
|
19
69211-79500-000
Scrape, side window
GLASS:T:4.0 |
69211-79500-000 |
— | ||
| replacement | |||||
|
19
|
19
69211-79601-000 SCRAPE,SIDE WINDOWGLASS:T:4.0 |
69211-79601-000 |
US $15.79 |
||
|
19
|
19
69211-79601-000 SCRAPE,SIDE WINDOWGLASS:T:3.5 |
69211-79601-000 |
US $15.79 |
||
|
20
|
20
79661-79611-000
GLASS,SIDE WINDOW,R
|
79661-79611-000 |
— | ||
|
21
|
21
79666-79611-000 GLASS,SIDE WINDOW,L |
79666-79611-000 |
US $74.70 |
||
|
22
|
22
79761-79500-000 WEATHERSTRIP,SIDE WINDOW |
79761-79500-000 |
US $30.91 |
||
|
23
|
23
69351-79500-000
Bar, quarter window guard
OPT |
69351-79500-000 |
— | ||
|
24
|
24
03111-05168-000
New Genuine Part
|
03111-05168-000 |
— | ||
| replacement | |||||
|
24
|
24
03111-0516A-000 SCREW |
03111-0516A-000 |
from US $0.80 |
||
|
25
|
25
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
