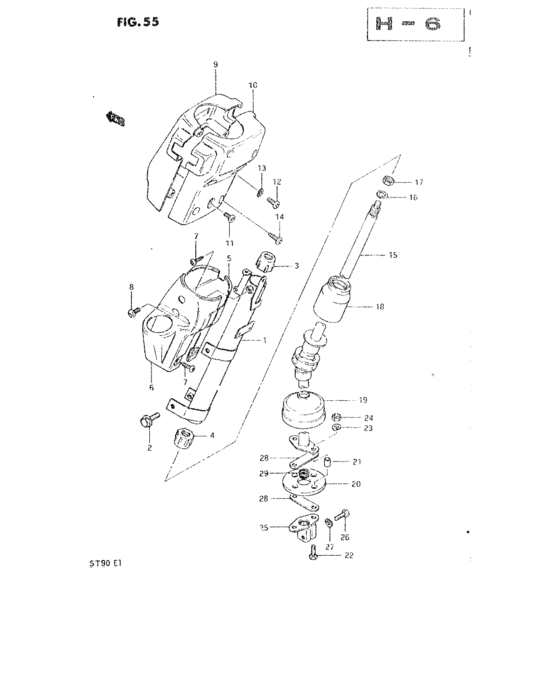

Steering shaft (STEERING SHAFT) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48310-79031-000
Column, steering
TYPE 1: |
48310-79031-000 |
— | ||
|
1
|
1
48310-79011-000
Column, steering
TYPE 1:Switzerland,Belgium,Holland |
48310-79011-000 |
— | ||
|
1
|
1
48310-79110-000
Column, steering
TYPE 1:Germany TYPE 2 |
48310-79110-000 |
— | ||
|
1
|
1
48310-79140-000
Column, steering
TYPE 3 |
48310-79140-000 |
— | ||
|
2
|
2
01517-08168-000
Bolt
|
01517-08168-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-08167-000 BoltBolt (8x16) |
01550-08167-000 |
from US $4.49 |
||
|
3
|
3
48381-51040-000
ブッシュ
|
48381-51040-000 |
— | ||
| replacement | |||||
|
3
|
3
48381-51041-000 BUSHING,STRG COLUMN |
48381-51041-000 |
US $5.93 |
||
|
4
|
4
48382-66040-000
Bush, column lower
|
48382-66040-000 |
— | ||
|
5
|
5
48410-79080-000
Cover, steering rh
TYPE 1: |
48410-79080-000 |
— | ||
|
5
|
5
48410-79010-000
Cover, steering rh
TYPE 1:Switzerland,Belgium,Holland |
48410-79010-000 |
— | ||
|
6
|
6
48420-79080-000
Cover, steering lh
TYPE 1: |
48420-79080-000 |
— | ||
|
6
|
6
48420-79010-000
Cover, steering lh
TYPE 1:Switzerland,Belgium,Holland |
48420-79010-000 |
— | ||
|
7
|
7
03142-04129-000
Screw
TYPE 1 |
03142-04129-000 |
— | ||
| replacement | |||||
|
7
|
7
03142-0412B-000 SCREWTYPE 1 |
03142-0412B-000 |
from US $0.80 |
||
|
8
|
8
02142-05087-000 SCREWTYPE 1 |
02142-05087-000 |
from US $0.80 |
||
|
9
|
9
48410-79150-281
Cover, steering upper
TYPE 2: |
48410-79150-281 |
— | ||
| replacement | |||||
|
9
|
9
48400-79801-281 COVER SET,STRG COLUMNTYPE 2: |
48400-79801-281 |
US $36.80 |
||
|
9
|
9
48410-79150-49N
Cover, steering upper
TYPE 3:, |
48410-79150-49N |
— | ||
| replacement | |||||
|
9
|
9
48400-79801-281 COVER SET,STRG COLUMNTYPE 3:, |
48400-79801-281 |
US $36.80 |
||
|
9
|
9
48410-79250-281
Cover, steering upper
TYPE 1:Germany TYPE 2:Finland,Switzerland,Belgium,Germany,Holland,Austria,Channel Islands |
48410-79250-281 |
— | ||
|
9
|
9
48410-79250-49N
Cover, steering upper
TYPE 3:Finland,Switzerland,Belgium,Germany,Holland,Austria,Channel Islands,South Sea Islands,Israel |
48410-79250-49N |
— | ||
|
10
|
10
48420-79180-281
Cover, steering lower
TYPE 2: |
48420-79180-281 |
— | ||
|
10
|
10
48420-79180-49N
Cover, steering lower
TYPE 3:, |
48420-79180-49N |
— | ||
|
10
|
10
48420-79280-281
Cover, steering lower
TYPE 1:Germany TYPE 2:Finland,Switzerland,Belgium,Germany,Holland,Austria,Channel Islands |
48420-79280-281 |
— | ||
|
10
|
10
48420-79280-49N
Cover, steering lower
TYPE 3:Finland,Switzerland,Belgium,Germany,Holland,Austria,Channel Islands,South Sea Islands,Israel |
48420-79280-49N |
— | ||
|
11
|
11
02142-05087-000 SCREWTYPE 1:Germany TYPE 2,TYPE 3:,,Finland,Switzerland,Belgium,Germany,5,Austria,Channel Islands,South Sea Islands,Israel |
02142-05087-000 |
from US $0.80 |
||
|
12
|
12
02112-05128-000
Screw
TYPE 1:Germany TYPE 2,TYPE 3:,,Finland,Switzerland,Belgium,Germany,5,Austria,Channel Islands,South Sea Islands,Israel |
02112-05128-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-05127-000 SCREWScrew, vacuum sw valve TYPE 1:Germany TYPE 2,TYPE 3:,,Finland,Switzerland,Belgium,Germany,5,Austria,Channel Islands,South Sea Islands,Israel |
02112-05127-000 |
from US $0.76 |
||
|
13
|
13
08321-21058-000
Lock washer
TYPE 1:Germany TYPE 2,TYPE 3:,,Finland,Switzerland,Belgium,Germany,5,Austria,Channel Islands,South Sea Islands,Israel |
08321-21058-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-0105A-000 WASHER,LOCKTYPE 1:Germany TYPE 2,TYPE 3:,,Finland,Switzerland,Belgium,Germany,5,Austria,Channel Islands,South Sea Islands,Israel |
08321-0105A-000 |
from US $0.76 |
||
|
14
|
14
03211-05168-000
Screw
TYPE 1:Germany TYPE 2,TYPE 3:,,Finland,Switzerland,Belgium,Germany,5,Austria,Channel Islands,South Sea Islands,Israel |
03211-05168-000 |
— | ||
| replacements | |||||
|
14
|
14
03212-0516B-000
SCREW
TYPE 1:Germany TYPE 2,TYPE 3:,,Finland,Switzerland,Belgium,Germany,5,Austria,Channel Islands,South Sea Islands,Israel |
03212-0516B-000 |
— | ||
|
14
|
14
13765-48GV0-000 ScrewTYPE 1:Germany TYPE 2,TYPE 3:,,Finland,Switzerland,Belgium,Germany,5,Austria,Channel Islands,South Sea Islands,Israel |
13765-48GV0-000 |
from US $3.55 |
||
|
15
|
15
48210-79031-000
Shaft, steering
TYPE 1,TYPE 2,FROM 48210-79030 |
48210-79031-000 |
— | ||
|
15
|
15
48210-79200-000
Shaft, steering
TYPE 3 |
48210-79200-000 |
— | ||
|
16
|
16
09162-12004-000
Lock washer
|
09162-12004-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
17
|
17
09140-12022-000
ナット
|
09140-12022-000 |
— | ||
| replacement | |||||
|
17
|
17
09159-12025-000 NUT |
09159-12025-000 |
US $1.82 |
||
|
18
|
18
48228-69100-000 COVER,JOINT |
48228-69100-000 |
US $6.66 |
||
|
19
|
19
48481-79000-000 COVER,RUBBER JOINT |
48481-79000-000 |
US $6.15 |
||
|
20
|
20
48251-52000-000 JOINT,RUBBER |
48251-52000-000 |
from US $4 |
||
|
21
|
21
09180-08007-000 SPACER(8.1X11X9) |
09180-08007-000 |
from US $1.12 |
||
|
22
|
22
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-08257-000 Bolt |
01500-08257-000 |
from US $0.96 |
||
|
23
|
23
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
24
|
24
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
24
|
24
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
25
|
25
48270-79000-000 FLANGE,RUBBER JOINT |
48270-79000-000 |
US $14.90 |
||
|
26
|
26
09111-08052-000
ボルト
|
09111-08052-000 |
— | ||
| replacement | |||||
|
26
|
26
09111-08066-000 BOLT(8X30) |
09111-08066-000 |
US $1.92 |
||
|
27
|
27
08321-31088-000
Lock washer
|
08321-31088-000 |
— | ||
| replacement | |||||
|
27
|
27
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
28
|
28
48262-58000-000
Plaque
|
48262-58000-000 |
— | ||
| replacement | |||||
|
28
|
28
48262-58001-000 PLATE,STRG RUBBER JOINT |
48262-58001-000 |
US $1.60 |
||
|
29
|
29
09440-18002-000 SPRING |
09440-18002-000 |
from US $1.06 |
||
