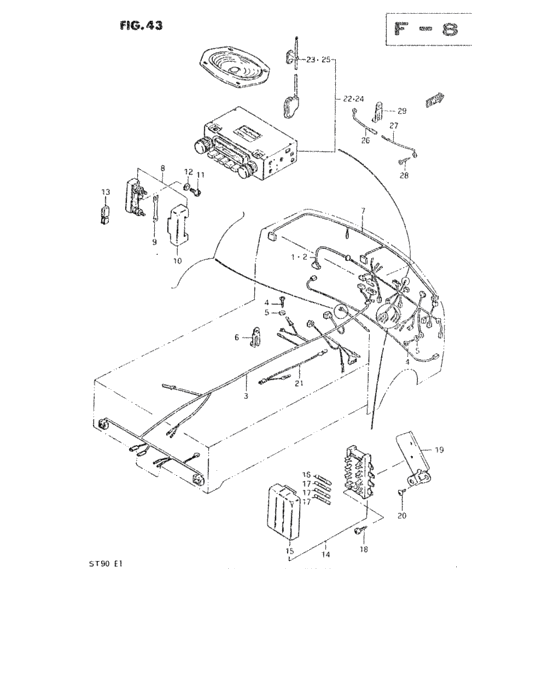

Wiring harness (TYPE 1,TYPE 2:ST90,K) Diagram Suzuki CARRY/SUPER CARRY
- Year
- -
- Sales region
- Africa
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-79000-000
Wiring harness, no.1
TYPE 1:RHD |
36610-79000-000 |
— | ||
|
1
|
1
36610-79711-000
Wiring harness, no.1
TYPE 1:LHD |
36610-79711-000 |
— | ||
|
1
|
1
36610-79700-000
Wiring harness, no.1
TYPE 1: |
36610-79700-000 |
— | ||
|
1
|
1
36610-79200-000
Wiring harness, no.1
TYPE 1:Australia |
36610-79200-000 |
— | ||
|
2
|
2
36610-79001-000
Wiring harness, no.1
TYPE 2:RHD |
36610-79001-000 |
— | ||
|
2
|
2
36610-79011-000
Wiring harness, no.1
TYPE 2:LHD |
36610-79011-000 |
— | ||
|
2
|
2
36610-79701-000
Wiring harness, no.1
TYPE 2:,4 |
36610-79701-000 |
— | ||
|
2
|
2
36610-79712-000
Wiring harness, no.1
TYPE 2:Finland,Switzerland,Belgium,Holland,Saudi Arabia,Channel Islands |
36610-79712-000 |
— | ||
|
3
|
3
36620-79100-000
Wiring harness, no.2
TO 36620-79101, USED WITH,37820-73000,TYPE 1 |
36620-79100-000 |
— | ||
| replacement | |||||
|
3
|
3
37820-820P0-000 SWITCH ASSY,OIL PRESSURETO 36620-79101, USED WITH,37820-73000,TYPE 1 |
37820-820P0-000 |
from US $12.02 |
||
|
3
|
3
36620-79101-000
Wiring harness, no.2
TYPE 1 |
36620-79101-000 |
— | ||
|
3
|
3
36620-79201-000
Wiring harness, no.2
TYPE 1:,Switzerland,Belgium,5 |
36620-79201-000 |
— | ||
|
3
|
3
36620-79202-000
Wiring harness, no.2
TYPE 2 |
36620-79202-000 |
— | ||
|
3
|
3
36620-79205-000
Wiring harness, no.2
TYPE 2,ST90-115977~ ST90K102189~,FROM 36620-79204 |
36620-79205-000 |
— | ||
|
4
|
4
03111-05128-000
Screw
|
03111-05128-000 |
— | ||
| replacement | |||||
|
4
|
4
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
5
|
5
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
6
|
6
09404-06412-000
Clamp
L:60 |
09404-06412-000 |
— | ||
| replacements | |||||
|
6
|
6
09404-06432-000
CLAMP(L:65)
L:60 |
09404-06432-000 |
— | ||
|
6
|
6
09404-06039-000 Clamp(L:65)L:60 |
09404-06039-000 |
from US $1.82 |
||
|
6
|
6
09404-06414-000
Clamp (l:80)
L:80 LHD |
09404-06414-000 |
— | ||
| replacements | |||||
|
6
|
6
09404-06434-000
CLAMP(L:80 T:1.0)
L:80 LHD |
09404-06434-000 |
— | ||
|
6
|
6
09404-06433-000
CLAMP(L:80)
L:80 LHD |
09404-06433-000 |
— | ||
|
6
|
6
09404-06436-000 Clamp(L:80)L:80 LHD |
09404-06436-000 |
from US $2.13 |
||
|
6
|
6
09404-06036-000 Clamp(L:80)L:80 LHD |
09404-06036-000 |
from US $1.82 |
||
|
7
|
7
36630-79000-000
Wiring harness, side turn
|
36630-79000-000 |
— | ||
| replacement | |||||
|
7
|
7
36630-79010-000
HARNESS,TURN/ROOM LAMP
|
36630-79010-000 |
— | ||
|
8
|
8
36740-71311-000
CASE ASSY,FUSE
FROM 36740-71310 |
36740-71311-000 |
— | ||
|
9
|
9
09481-30001-000 FUSE(30A) |
09481-30001-000 |
US $15.50 |
||
|
10
|
10
36742-71310-000
Cover
|
36742-71310-000 |
— | ||
|
11
|
11
03111-05168-000
New Genuine Part
|
03111-05168-000 |
— | ||
| replacement | |||||
|
11
|
11
03111-0516A-000 SCREW |
03111-0516A-000 |
from US $0.80 |
||
|
12
|
12
08322-21058-000
Washer
|
08322-21058-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
13
|
13
57279-67000-000 PROTECTORL:200->100 |
57279-67000-000 |
US $1.52 |
||
|
14
|
14
36710-78201-000
Fuse box assy
FROM 36710-78200 |
36710-78201-000 |
— | ||
| replacement | |||||
|
14
|
14
36710-78210-000
BOX ASSY,FUSE
FROM 36710-78200 |
36710-78210-000 |
— | ||
|
15
|
15
36717-78201-000
Cover,fuse box
FROM 36717-78200 |
36717-78201-000 |
— | ||
|
16
|
16
09481-20001-000 FUSE(20A) |
09481-20001-000 |
from US $1.28 |
||
|
17
|
17
09481-15001-000 FUSE(15A)Fuse (15a) |
09481-15001-000 |
from US $1.28 |
||
|
18
|
18
03111-05208-000
Screw
|
03111-05208-000 |
— | ||
| replacement | |||||
|
18
|
18
03111-0520A-000 SCREW |
03111-0520A-000 |
US $0.80 |
||
|
19
|
19
36791-79500-000
Bracket, fuse box
LHD |
36791-79500-000 |
— | ||
|
20
|
20
03111-06128-000
Screw
LHD |
03111-06128-000 |
— | ||
| replacement | |||||
|
20
|
20
03111-0612A-000 SCREWLHD |
03111-0612A-000 |
US $0.80 |
||
|
21
|
21
36850-79200-000
Lead wire, solenoid
TYPE 1:China |
36850-79200-000 |
— | ||
|
22
|
22
39100-79030-000
Radio assy
|
39100-79030-000 |
— | ||
|
23
|
23
39250-70012-000
Antenna
|
39250-70012-000 |
— | ||
| replacements | |||||
|
23
|
23
39250-80C00-000
ANTENNA ASSY
|
39250-80C00-000 |
— | ||
|
23
|
23
39250-80C10-000 ANTENNA ASSY |
39250-80C10-000 |
US $43.20 |
||
|
24
|
24
39100-79200-000
Radio assy
|
39100-79200-000 |
— | ||
|
24
|
24
39100-79210-000
Radio assy
,Finland,Switzerland,Belgium,5 |
39100-79210-000 |
— | ||
|
25
|
25
39250-78300-000
アンテナアッシ
FROM 39250-78400 |
39250-78300-000 |
— | ||
| replacements | |||||
|
25
|
25
39250-80C00-000
ANTENNA ASSY
FROM 39250-78400 |
39250-80C00-000 |
— | ||
|
25
|
25
39250-80C10-000 ANTENNA ASSYFROM 39250-78400 |
39250-80C10-000 |
US $43.20 |
||
|
26
|
26
39191-79030-000
Lead wire, tuner earth no.1
|
39191-79030-000 |
— | ||
|
27
|
27
39192-79001-000
Lead wire, tuner earth no.2
FROM 39192-79000 |
39192-79001-000 |
— | ||
|
28
|
28
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
29
|
29
09404-06401-000
Clamp, oil hose
|
09404-06401-000 |
— | ||
| replacements | |||||
|
29
|
29
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
29
|
29
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
29
|
29
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
29
|
29
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
