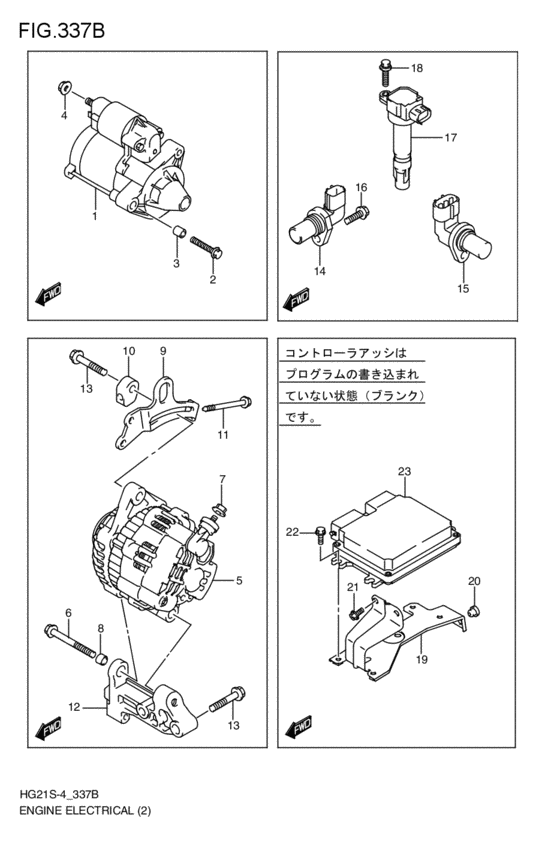

engine electrical (XH; 2009-02-01~) Diagram Suzuki CERVO
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- XH
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-76G10-000 MOTOR ASSY,STARTINGDENSO; XH; 2009-02-01~ |
31100-76G10-000 |
US $668.80 |
||
|
2
|
2
09103-08443-000 BOLT(8X50)XH; 2009-02-01~ |
09103-08443-000 |
US $18.40 |
||
|
3
|
3
04211-11129-000 PINXH; 2009-02-01~ |
04211-11129-000 |
from US $0.95 |
||
|
4
|
4
08316-1008A-000 NUTNut, idle gear shaft XH; 2009-02-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
5
|
5
31400-58J00-000
ジェネレータアッシ
XH; 2009-02-01~ |
31400-58J00-000 |
— | ||
| replacement | |||||
|
5
|
5
31400-58J02-000
New Genuine Part
XH; 2009-02-01~ |
31400-58J02-000 |
— | ||
|
6
|
6
01550-1095A-000 BoltXH; 2009-02-01~ |
01550-1095A-000 |
US $24.70 |
||
|
7
|
7
08316-1006A-000 NUTXH; 2009-02-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
8
|
8
11555-60G01-000 BUSHXH; 2009-02-01~ |
11555-60G01-000 |
US $3.68 |
||
|
9
|
9
11561-84H00-000
Arm,gen belt adjusting
XH; 2009-02-01~ |
11561-84H00-000 |
— | ||
| replacement | |||||
|
9
|
9
11561-84H01-000 ARM,GENERATOR BELT ADJUSTXH; 2009-02-01~ |
11561-84H01-000 |
US $15.79 |
||
|
10
|
10
11562-84H00-000 ADJUSTER,GENERATORXH; 2009-02-01~ |
11562-84H00-000 |
US $31.20 |
||
|
11
|
11
11563-85K00-000 BOLT,GEN BELT ADJUSTINGXH; 2009-02-01~ |
11563-85K00-000 |
US $2.43 |
||
|
12
|
12
11565-84H00-000 BRACKET,GENERATOR LOWERXH; 2009-02-01~ |
11565-84H00-000 |
US $41.95 |
||
|
13
|
13
01550-0840A-000 BOLTXH; 2009-02-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
14
|
14
33220-51K00-000
SENSOR ASSY,POSITION
XH; 2009-02-01~ |
33220-51K00-000 |
— | ||
| replacement | |||||
|
14
|
14
33220-50M00-000 SENSOR ASSY,POSITIONXH; 2009-02-01~ |
33220-50M00-000 |
from US $95.63 |
||
|
15
|
15
33220-66K00-000
SENSOR ASSY,POSITION
XH; 2009-02-01~ |
33220-66K00-000 |
— | ||
| replacement | |||||
|
15
|
15
33220-50M40-000 SENSOR ASSY,CAM POSITIONXH; 2009-02-01~ |
33220-50M40-000 |
US $124.80 |
||
|
16
|
16
01550-0616A-000 BOLTXH; 2009-02-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
33400-76G21-000
Coil assy,ignition
DENSO; XH; 2009-02-01~ |
33400-76G21-000 |
— | ||
| replacement | |||||
|
17
|
17
33400-85K10-000 COIL ASSY,IGNITION DEDENSO; XH; 2009-02-01~ |
33400-85K10-000 |
US $226.48 |
||
|
17
|
17
33400-85K00-000
コイルアッシ,イグニツシヨン(DENSO)
ミツビシ; XH; 2009-02-01~ |
33400-85K00-000 |
— | ||
| replacement | |||||
|
17
|
17
33400-85K10-000 COIL ASSY,IGNITION DEミツビシ; XH; 2009-02-01~ |
33400-85K10-000 |
US $226.48 |
||
|
18
|
18
09135-06024-000 BOLT(6X23)XH; 2009-02-01~ |
09135-06024-000 |
US $12.50 |
||
|
19
|
19
33924-66K00-000
ブラケット,インジェクションコントロール
XH; 2009-02-01~ |
33924-66K00-000 |
— | ||
|
20
|
20
34955-60E00-000 BUSHXH; 2009-02-01~ |
34955-60E00-000 |
US $2.40 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket XH; 2009-02-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
22
|
22
02162-0625A-000 SCREWXH; 2009-02-01~ |
02162-0625A-000 |
from US $0.76 |
||
|
23
|
23
33910-66KA0-000
ベースアッシ,インジェクションコントロール
XH; 2009-02-01~ |
33910-66KA0-000 |
— | ||
