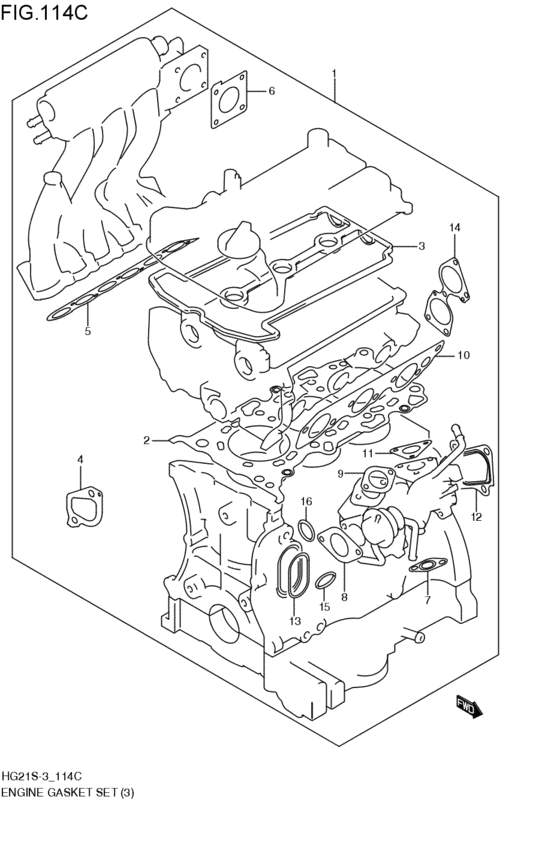

engine gasket set (TURBO:CVT; 2008-05-01~) Diagram Suzuki CERVO
- Year
- 2008 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- CVT
- grade
- R
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-58863-000
ガスケットセット,エンジン
TURBO:CVT; 2008-05-01~ |
11400-58863-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-58867-000
GASKET SET,ENGINE
TURBO:CVT; 2008-05-01~ |
11400-58867-000 |
— | ||
|
2
|
2
11141-73G01-000
Gasket,cylinder head
TURBO:CVT; 2008-05-01~ |
11141-73G01-000 |
— | ||
| replacement | |||||
|
2
|
2
11141-73G03-000 GASKET,CYL HEADTURBO:CVT; 2008-05-01~ |
11141-73G03-000 |
from US $67.39 |
||
|
3
|
3
11189-58J70-000 GASKET,CYL HEAD COVERTURBO:CVT; 2008-05-01~ |
11189-58J70-000 |
US $18.22 |
||
|
4
|
4
12832-58J00-000 GASKET,TENSIONER ADJUSTERTURBO:CVT; 2008-05-01~ |
12832-58J00-000 |
from US $3.26 |
||
|
5
|
5
13119-58J71-000
ガスケット,インテークマニホールド
TURBO:CVT; 2008-05-01~ |
13119-58J71-000 |
— | ||
|
6
|
6
13421-77G00-000 GASKET,THROTTLE BODYGasket, throttle body TURBO:CVT; 2008-05-01~ |
13421-77G00-000 |
from US $2.24 |
||
|
7
|
7
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain TURBO:CVT; 2008-05-01~ |
13945-70G50-000 |
from US $4.68 |
||
|
8
|
8
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe TURBO:CVT; 2008-05-01~ |
13955-56F00-000 |
from US $2.40 |
||
|
9
|
9
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe TURBO:CVT; 2008-05-01~ |
13965-56F00-000 |
from US $2.09 |
||
|
10
|
10
14141-58J70-000 GASKET,EXH MANFTURBO:CVT; 2008-05-01~ |
14141-58J70-000 |
US $13.32 |
||
|
11
|
11
14181-78F50-000 GASKET,EXH MANFTURBO:CVT; 2008-05-01~ |
14181-78F50-000 |
from US $16.18 |
||
|
12
|
12
14182-58J50-000 GASKET,TC OUTLET PIPETURBO:CVT; 2008-05-01~ |
14182-58J50-000 |
from US $5.76 |
||
|
13
|
13
17611-73G01-000
O ring,water pump
TURBO:CVT; 2008-05-01~ |
17611-73G01-000 |
— | ||
| replacement | |||||
|
13
|
13
17611-73G03-000 O-RING,WATER PUMPTURBO:CVT; 2008-05-01~ |
17611-73G03-000 |
US $4.95 |
||
|
14
|
14
17699-58J70-000 GASKET,THERMOSTAT CASETURBO:CVT; 2008-05-01~ |
17699-58J70-000 |
US $5.67 |
||
|
15
|
15
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe TURBO:CVT; 2008-05-01~ |
17849-53E00-000 |
from US $1.52 |
||
|
16
|
16
17849-83G00-000 O-RING,HEATER OUTLET PIPETURBO:CVT; 2008-05-01~ |
17849-83G00-000 |
US $2.24 |
||
