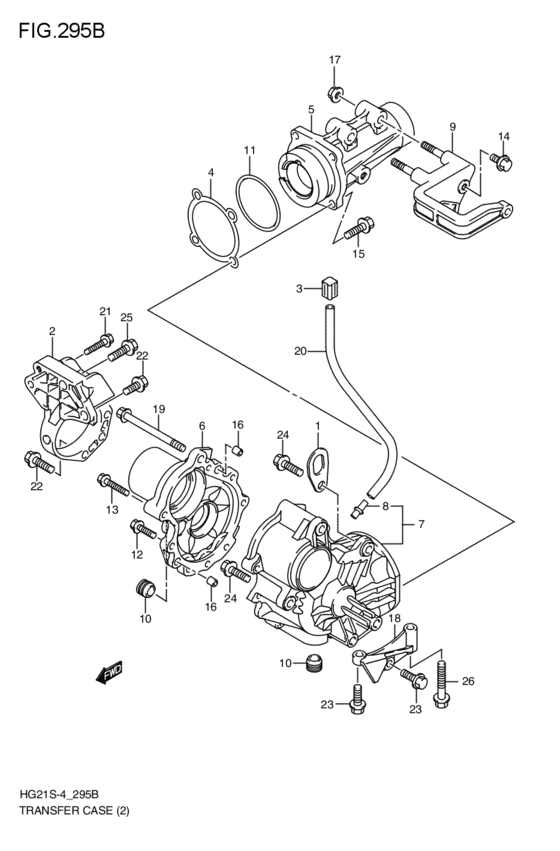

transfer case (4WD:CVT; 2009-02-01~) Diagram Suzuki CERVO
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- CVT
- grade
- R
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-62B00-000 HOOK4WD:CVT; 2009-02-01~ |
11851-62B00-000 |
US $5.02 |
||
|
2
|
2
24792-73H01-000
スチフナ,エンジン/トランスファ
4WD:CVT; 2009-02-01~ |
24792-73H01-000 |
— | ||
|
3
|
3
27991-65D01-000 PLUG,BREATHER4WD:CVT; 2009-02-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
4
|
4
29261-75F90-203 SHIM,T/F RETAINER T:2.034WD:CVT; 2009-02-01~ |
29261-75F90-203 |
US $16.45 |
||
|
4
|
4
29261-75F90-206 SHIM,T/F RETAINER T:2.064WD:CVT; 2009-02-01~ |
29261-75F90-206 |
US $16.45 |
||
|
4
|
4
29261-75F90-209 SHIM,T/F RETAINER T:2.094WD:CVT; 2009-02-01~ |
29261-75F90-209 |
US $16.45 |
||
|
4
|
4
29261-75F90-212 SHIM,T/F RETAINER T:2.124WD:CVT; 2009-02-01~ |
29261-75F90-212 |
US $16.45 |
||
|
4
|
4
29261-75F90-215 SHIM,T/F RETAINER T:2.154WD:CVT; 2009-02-01~ |
29261-75F90-215 |
US $16.45 |
||
|
4
|
4
29261-75F90-218 SHIM,T/F RETAINER T:2.184WD:CVT; 2009-02-01~ |
29261-75F90-218 |
US $21.60 |
||
|
4
|
4
29261-75F90-221 SHIM,T/F RETAINER T:2.214WD:CVT; 2009-02-01~ |
29261-75F90-221 |
US $16.45 |
||
|
4
|
4
29261-75F90-224 SHIM,T/F RETAINER T:2.244WD:CVT; 2009-02-01~ |
29261-75F90-224 |
US $16.45 |
||
|
4
|
4
29261-75F90-227 SHIM,T/F RETAINER T:2.274WD:CVT; 2009-02-01~ |
29261-75F90-227 |
US $16.45 |
||
|
4
|
4
29261-75F90-030 SHIM,T/F RETAINER T:0.304WD:CVT; 2009-02-01~ |
29261-75F90-030 |
US $13.62 |
||
|
4
|
4
29261-75F90-200 SHIM,T/F RETAINER T:2.004WD:CVT; 2009-02-01~ |
29261-75F90-200 |
US $16.45 |
||
|
5
|
5
29270-58J00-000
リテーナ,トランスファアウトプツト
4WD:CVT; 2009-02-01~ |
29270-58J00-000 |
— | ||
|
6
|
6
29521-78G01-000 CASE,TRANSFER,R4WD:CVT; 2009-02-01~ |
29521-78G01-000 |
US $189.52 |
||
|
7
|
7
29510-78810-000
Case,t/f left
4WD:CVT; 2009-02-01~ |
29510-78810-000 |
— | ||
| replacement | |||||
|
7
|
7
29510-85811-000
CASE SET,T/F LEFT
4WD:CVT; 2009-02-01~ |
29510-85811-000 |
— | ||
|
8
|
8
09364-08004-000 UNION4WD:CVT; 2009-02-01~ |
09364-08004-000 |
US $14.40 |
||
|
9
|
9
29550-58J00-000
ブラケットアッシ,トランスファリヤマウント
4WD:CVT; 2009-02-01~ |
29550-58J00-000 |
— | ||
|
10
|
10
09246-16010-000 PLUG4WD:CVT; 2009-02-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
10
|
10
09246-16021-000 Plug,t/m Oil Drain4WD:CVT; 2009-02-01~ |
09246-16021-000 |
from US $4.01 |
||
|
11
|
11
09280-76008-000 O RING(D:3.1,ID:74)O ring, rr final housing 4WD:CVT; 2009-02-01~ |
09280-76008-000 |
from US $5.15 |
||
|
12
|
12
01550-0830A-000 BOLTBolt, mount oil seal cover 4WD:CVT; 2009-02-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
13
|
13
01550-0845A-000 BOLTBolt, oil pump (s) 4WD:CVT; 2009-02-01~ |
01550-0845A-000 |
US $5.03 |
||
|
14
|
14
01550-1020A-000 BOLTBolt, bal sprocket 4WD:CVT; 2009-02-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
15
|
15
01550-1035A-000 BOLTBolt, fr fork upper 4WD:CVT; 2009-02-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
16
|
16
04211-09169-000 PIN4WD:CVT; 2009-02-01~ |
04211-09169-000 |
from US $0.91 |
||
|
17
|
17
08316-1010A-000 NUTNut, kick starter 4WD:CVT; 2009-02-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
18
|
18
29531-76G10-000 STIFFENER,T/F CASE4WD:CVT; 2009-02-01~ |
29531-76G10-000 |
US $58.51 |
||
|
19
|
19
09103-10318-000 BOLT(10X110)Bolt, lower 4WD:CVT; 2009-02-01~ |
09103-10318-000 |
from US $10.10 |
||
|
20
|
20
09352-70113-600
HOSE(7X11X600)
L:600>360; 4WD:CVT; 2009-02-01~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
20
|
20
09352-70119-600 Hose(7X11X600)L:600>360; 4WD:CVT; 2009-02-01~ |
09352-70119-600 |
from US $4.64 |
||
|
21
|
21
01550-0840A-000 BOLT4WD:CVT; 2009-02-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
22
|
22
01550-1025A-000 BOLTBolt, drive gear 4WD:CVT; 2009-02-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
23
|
23
01550-1030A-000 BOLT4WD:CVT; 2009-02-01~ |
01550-1030A-000 |
from US $1.12 |
||
|
24
|
24
01550-1035A-000 BOLTBolt, fr fork upper 4WD:CVT; 2009-02-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
25
|
25
01550-1035A-000 BOLTBolt, fr fork upper 4WD:CVT; 2009-02-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
26
|
26
01550-1060A-000 Bolt4WD:CVT; 2009-02-01~ |
01550-1060A-000 |
from US $1.60 |
||
