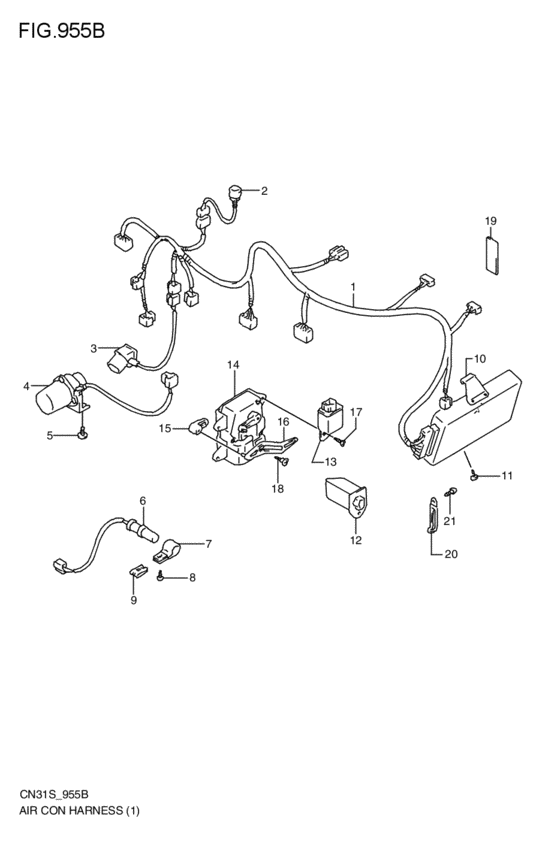

air-conditioner harness (T4:SF; 1994-10-01~1995-09-01) Diagram Suzuki CERVO MODE
- Year
- 1994 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- CARB
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- SF
- type
- T4
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95632-51E00-000
ハーネス,インナ
T4:SF; 1994-10-01~1995-09-01 |
95632-51E00-000 |
— | ||
|
2
|
2
95642-62F00-000
センサ,サンライト
T4:SF; 1994-10-01~1995-09-01 |
95642-62F00-000 |
— | ||
|
3
|
3
95641-50E00-000
センサ,ルームテンパレチャ
T4:SF; 1994-10-01~1995-09-01 |
95641-50E00-000 |
— | ||
|
4
|
4
95656-50E00-000
ファン,ルームセンサ
T4:SF; 1994-10-01~1995-09-01 |
95656-50E00-000 |
— | ||
| replacement | |||||
|
4
|
4
95656-50E02-000
ファン,ルームセンサ
T4:SF; 1994-10-01~1995-09-01 |
95656-50E02-000 |
— | ||
|
5
|
5
02142-05123-000
Screw 5x12
T4:SF; 1994-10-01~1995-09-01 |
02142-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0512A-000 SCREWScrew, lower T4:SF; 1994-10-01~1995-09-01 |
02142-0512A-000 |
from US $0.80 |
||
|
6
|
6
95655-50A81-000
センサ,アウトドアテンパレチャ
T4:SF; 1994-10-01~1995-09-01 |
95655-50A81-000 |
— | ||
| replacement | |||||
|
6
|
6
95640-64G40-000
SENSOR,OUT DOOR TEMP
T4:SF; 1994-10-01~1995-09-01 |
95640-64G40-000 |
— | ||
|
7
|
7
95774-60C00-000 CLAMP,DELIVERY PIPET4:SF; 1994-10-01~1995-09-01 |
95774-60C00-000 |
US $11.70 |
||
|
8
|
8
03541-05123-000
Screw
T4:SF; 1994-10-01~1995-09-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0512B-000 SCREWT4:SF; 1994-10-01~1995-09-01 |
03541-0512B-000 |
from US $0.76 |
||
|
9
|
9
09148-05020-000 NUTT4:SF; 1994-10-01~1995-09-01 |
09148-05020-000 |
from US $0.91 |
||
|
10
|
10
95610-51E02-000
コントローラ,オートエアコン
T4:SF; 1994-10-01~1995-09-01 |
95610-51E02-000 |
— | ||
|
11
|
11
03541-05103-000
Screw5 x 10
T4:SF; 1994-10-01~1995-09-01 |
03541-05103-000 |
— | ||
| replacements | |||||
|
11
|
11
03541-0510B-000 SCREWT4:SF; 1994-10-01~1995-09-01 |
03541-0510B-000 |
from US $0.80 |
||
|
11
|
11
03541-0510A-000 SCREWScrew, rr cover T4:SF; 1994-10-01~1995-09-01 |
03541-0510A-000 |
from US $0.68 |
||
|
12
|
12
95626-62F00-000
ドライバ,ブロワファン
T4:SF; 1994-10-01~1995-09-01 |
95626-62F00-000 |
— | ||
|
13
|
13
38860-60A10-000 RELAY ASSY,LOCK UPT4:SF; 1994-10-01~1995-09-01 |
38860-60A10-000 |
US $37.90 |
||
|
14
|
14
95651-72B00-000
アクチュエータ,テンパレチャ
T4:SF; 1994-10-01~1995-09-01 |
95651-72B00-000 |
— | ||
|
15
|
15
95662-72B00-000
プレート,エアミックスドア
T4:SF; 1994-10-01~1995-09-01 |
95662-72B00-000 |
— | ||
|
16
|
16
95661-72B00-000
レバー,エアミックス
T4:SF; 1994-10-01~1995-09-01 |
95661-72B00-000 |
— | ||
|
17
|
17
03541-05123-000
Screw
T4:SF; 1994-10-01~1995-09-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
17
|
17
03541-0512B-000 SCREWT4:SF; 1994-10-01~1995-09-01 |
03541-0512B-000 |
from US $0.76 |
||
|
18
|
18
95666-72B00-000
スクリュ,エアミックスレバー
T4:SF; 1994-10-01~1995-09-01 |
95666-72B00-000 |
— | ||
|
19
|
19
36930-82000-000
カバー
T4:SF; 1994-10-01~1995-09-01 |
36930-82000-000 |
— | ||
| replacement | |||||
|
19
|
19
36930-82010-000 COVER,HARNESSCover, roof wire T4:SF; 1994-10-01~1995-09-01 |
36930-82010-000 |
from US $1.73 |
||
|
20
|
20
09404-06431-000
CLAMP(L:65)
T4:SF; 1994-10-01~1995-09-01 |
09404-06431-000 |
— | ||
| replacements | |||||
|
20
|
20
09404-06432-000
CLAMP(L:65)
T4:SF; 1994-10-01~1995-09-01 |
09404-06432-000 |
— | ||
|
20
|
20
09404-06039-000 Clamp(L:65)T4:SF; 1994-10-01~1995-09-01 |
09404-06039-000 |
from US $1.82 |
||
|
20
|
20
09404-06038-000 Clamp(L:65)T4:SF; 1994-10-01~1995-09-01 |
09404-06038-000 |
from US $2.40 |
||
|
21
|
21
03541-05123-000
Screw
T4:SF; 1994-10-01~1995-09-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
03541-0512B-000 SCREWT4:SF; 1994-10-01~1995-09-01 |
03541-0512B-000 |
from US $0.76 |
||
