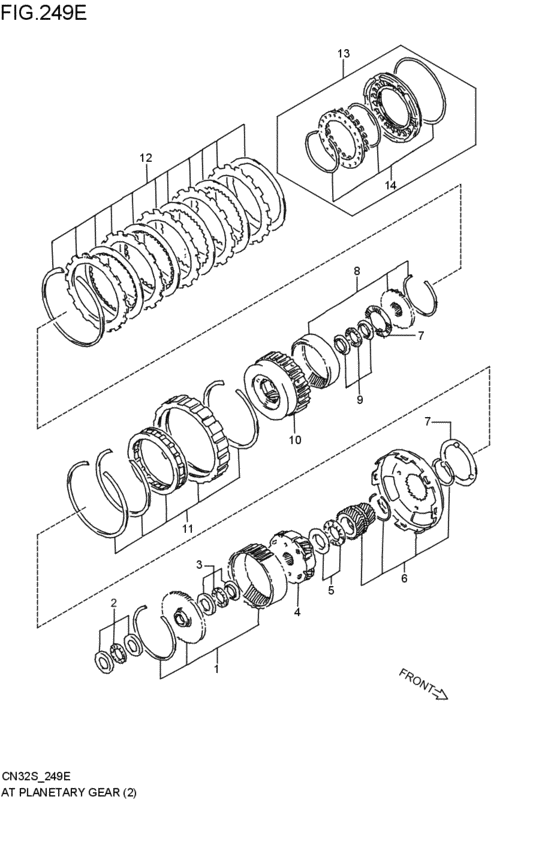

at - plastic material re-gear (3AT:2V:TURBO; 1995-10-01~) Diagram Suzuki CERVO MODE
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- number of the gears
- 3AT
- body
- SRT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24920-85500-000
ギヤアッシ,フロントプラネタリリング
3AT:2V:TURBO; 1995-10-01~ |
24920-85500-000 |
— | ||
| replacement | |||||
|
1
|
1
24920-85501-000 GEAR ASSY,FR PLNTY RING3AT:2V:TURBO; 1995-10-01~ |
24920-85501-000 |
US $279.68 |
||
|
2
|
2
24961-855T0-000 THRUST BEARING SET,NO.33AT:2V:TURBO; 1995-10-01~ |
24961-855T0-000 |
US $31.83 |
||
|
3
|
3
24962-855T0-000 THRUST BEARING SET,NO.43AT:2V:TURBO; 1995-10-01~ |
24962-855T0-000 |
US $31.83 |
||
|
4
|
4
24910-85500-000 GEAR ASSY,FR PLNTY3AT:2V:TURBO; 1995-10-01~ |
24910-85500-000 |
US $340.40 |
||
|
5
|
5
24963-855T0-000 THRUST BEARING SET,NO.53AT:2V:TURBO; 1995-10-01~ |
24963-855T0-000 |
US $26.50 |
||
|
6
|
6
24930-83C00-000
ギヤアッシ,プラネタリサン
3AT:2V:TURBO; 1995-10-01~ |
24930-83C00-000 |
— | ||
| replacements | |||||
|
6
|
6
24153-78DT2-000 BEARING SET,THRUST NO.23AT:2V:TURBO; 1995-10-01~ |
24153-78DT2-000 |
US $34.41 |
||
|
6
|
6
24930-83C02-000 GEAR ASSY,PLNTY SUN3AT:2V:TURBO; 1995-10-01~ |
24930-83C02-000 |
US $207.92 |
||
|
7
|
7
24941-855T0-000 THRUST WASHER SET3AT:2V:TURBO; 1995-10-01~ |
24941-855T0-000 |
US $19.69 |
||
|
8
|
8
24950-62D00-000
GEAR ASSY,RR PLNTY RING
3AT:2V:TURBO; 1995-10-01~ |
24950-62D00-000 |
— | ||
|
9
|
9
24153-78DT0-000
スラストベアリングセット,NO.2
3AT:2V:TURBO; 1995-10-01~ |
24153-78DT0-000 |
— | ||
| replacement | |||||
|
9
|
9
24100-78811-000 CLUTCH ASSY,RR3AT:2V:TURBO; 1995-10-01~ |
24100-78811-000 |
US $85.01 |
||
|
10
|
10
24940-78D10-000 GEAR ASSY,RR PLNTY3AT:2V:TURBO; 1995-10-01~ |
24940-78D10-000 |
US $401.12 |
||
|
11
|
11
26850-83CT0-000 CLUTCH SET,ONE WAY3AT:2V:TURBO; 1995-10-01~ |
26850-83CT0-000 |
US $344.08 |
||
|
12
|
12
26811-62DT0-000
プレートセット,ファースト/リバース
3AT:2V:TURBO; 1995-10-01~1995-10-01 |
26811-62DT0-000 |
— | ||
| replacement | |||||
|
12
|
12
26811-62DT1-000
PLATE SET,1ST&REV
3AT:2V:TURBO; 1995-10-01~1995-10-01 |
26811-62DT1-000 |
— | ||
|
12
|
12
26811-62DT1-000
PLATE SET,1ST&REV
3AT:2V:TURBO; 1995-10-01~ |
26811-62DT1-000 |
— | ||
|
13
|
13
26840-62DT0-000
ピストンセット,ファースト/リバース
3AT:2V:TURBO; 1995-10-01~1995-10-01 |
26840-62DT0-000 |
— | ||
|
13
|
13
26840-62DT1-000
ピストンセット,ファースト/リバース
3AT:2V:TURBO; 1995-10-01~ |
26840-62DT1-000 |
— | ||
|
14
|
14
26812-78DT0-000 O-RING SET,1ST&REV3AT:2V:TURBO; 1995-10-01~ |
26812-78DT0-000 |
US $18.33 |
||
