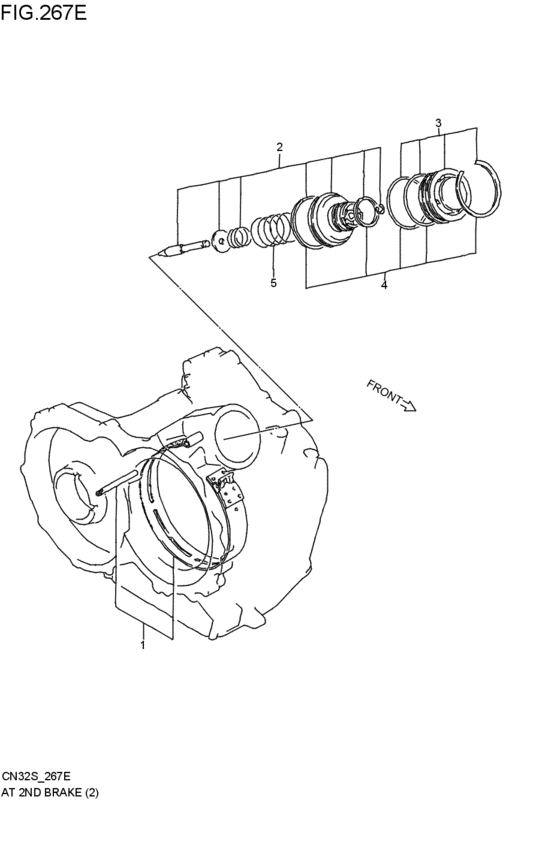

at - second brakes (3AT:2V:TURBO; 1995-10-01~) Diagram Suzuki CERVO MODE
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- number of the gears
- 3AT
- body
- SRT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26700-73GT0-000
バンドセット,セカンドブレーキ
3AT:2V:TURBO; 1995-10-01~ |
26700-73GT0-000 |
— | ||
|
2
|
2
26740-72B20-000
Piston assy,2nd brake
3AT:2V:TURBO; 1995-10-01~ |
26740-72B20-000 |
— | ||
|
3
|
3
26750-72BT0-000
COVER SET,2ND BK PISTON
3AT:2V:TURBO; 1995-10-01~ |
26750-72BT0-000 |
— | ||
|
4
|
4
26741-72BT0-000
Seal ring set,2nd brake
3AT:2V:TURBO; 1995-10-01~ |
26741-72BT0-000 |
— | ||
|
5
|
5
26762-62D00-000
SPRING,SECOND BRAKE PISTON
3AT:2V:TURBO; 1995-10-01~ |
26762-62D00-000 |
— |
