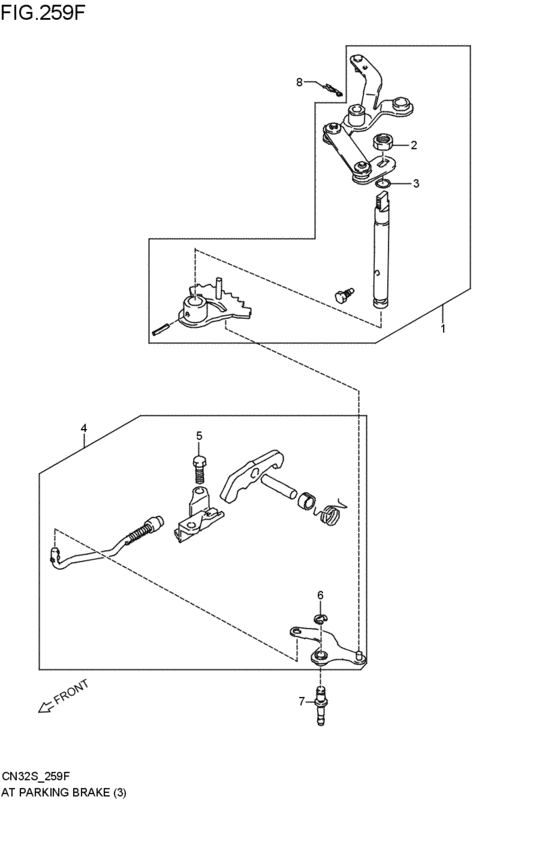

at - parking brakes (4AT; 1995-10-01~) Diagram Suzuki CERVO MODE
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- number of the gears
- 4AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25940-58ET0-000
シャフトセット,マニュアルレバー
4AT; 1995-10-01~ |
25940-58ET0-000 |
— | ||
|
2
|
2
08310-00103-000
Nut
4AT; 1995-10-01~ |
08310-00103-000 |
— | ||
| replacements | |||||
|
2
|
2
08310-0010B-000 NUT4AT; 1995-10-01~ |
08310-0010B-000 |
from US $0.80 |
||
|
2
|
2
08310-0010A-000 NUT4AT; 1995-10-01~ |
08310-0010A-000 |
from US $0.80 |
||
|
3
|
3
09280-09007-000
O ring
4AT; 1995-10-01~ |
09280-09007-000 |
— | ||
| replacement | |||||
|
3
|
3
29280-78G10-000 O-RING,MANUAL SHF SHAFT4AT; 1995-10-01~ |
29280-78G10-000 |
from US $3.02 |
||
|
4
|
4
25910-58ET0-000
ポールセット,パーキング
4AT; 1995-10-01~ |
25910-58ET0-000 |
— | ||
|
5
|
5
01500-08203-000
Bolt
4AT; 1995-10-01~ |
01500-08203-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0820A-000 Bolt4AT; 1995-10-01~ |
01500-0820A-000 |
from US $0.80 |
||
|
6
|
6
08332-11063-000
E ring
4AT; 1995-10-01~ |
08332-11063-000 |
— | ||
| replacements | |||||
|
6
|
6
08332-1106B-000 E RINGCirclip 4AT; 1995-10-01~ |
08332-1106B-000 |
from US $0.90 |
||
|
6
|
6
08332-1106A-000 E RINGE ring, pinion 4AT; 1995-10-01~ |
08332-1106A-000 |
from US $0.77 |
||
|
7
|
7
24712-51F00-000
ピン,パーキングレバー
4AT; 1995-10-01~ |
24712-51F00-000 |
— | ||
|
8
|
8
09385-08004-000 PIN,SNAP4AT; 1995-10-01~ |
09385-08004-000 |
from US $1.28 |
||
