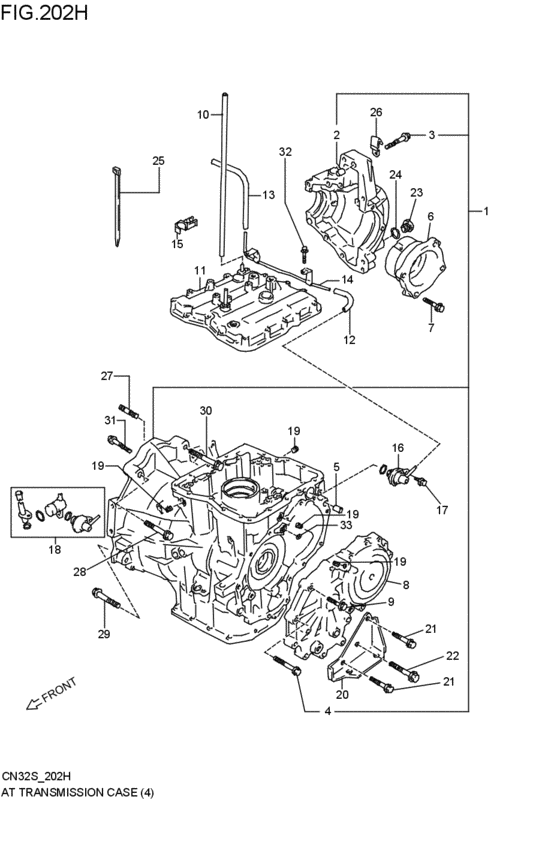

at - transmission case (4AT; 4AT; 1995-10-01~) Diagram Suzuki CERVO MODE
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- number of the gears
- 4AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-58E10-000
ケースアッシ,トランスミッション
4AT; 1995-10-01~1996-10-01 |
24700-58E10-000 |
— | ||
| replacements | |||||
|
1
|
1
24824-71B71-000 GASKET,18X24X24AT; 1995-10-01~1996-10-01 |
24824-71B71-000 |
US $1.52 |
||
|
1
|
1
09247-14044-000 DRAIN PLUG (M14x1.5)4AT; 1995-10-01~1996-10-01 |
09247-14044-000 |
from US $1.67 |
||
|
1
|
1
09247-14027-000 PLUG(14X11.5)Plug, oil drain 4AT; 1995-10-01~1996-10-01 |
09247-14027-000 |
from US $1.76 |
||
|
1
|
1
24700-58E11-000
ケースアッシ,トランスミッション
4AT; 1996-10-01~ |
24700-58E11-000 |
— | ||
|
2
|
2
04211-13149-000 PIN4AT; 1995-10-01~ |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
01550-08453-000
Bolt,cylinder h
4AT; 1995-10-01~ |
01550-08453-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0845B-000 BOLT4AT; 1995-10-01~ |
01550-0845B-000 |
from US $1.06 |
||
|
3
|
3
01550-0845A-000 BOLTBolt, oil pump (s) 4AT; 1995-10-01~ |
01550-0845A-000 |
US $5.03 |
||
|
4
|
4
01550-08503-000
Bolt
4AT; 1995-10-01~ |
01550-08503-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0850B-000 Bolt4AT; 1995-10-01~ |
01550-0850B-000 |
from US $1.22 |
||
|
5
|
5
04211-13149-000 PIN4AT; 1995-10-01~ |
04211-13149-000 |
from US $1.28 |
||
|
6
|
6
24721-56E01-000
ハウジング,ディファレンシャルサイドベアリング
4AT; 1995-10-01~ |
24721-56E01-000 |
— | ||
|
7
|
7
24722-56E00-000
ボルト,サイドベアリングハウジング
4AT; 1995-10-01~ |
24722-56E00-000 |
— | ||
| replacements | |||||
|
7
|
7
24722-72J10-000
BOLT,SIDE BRG HSG
4AT; 1995-10-01~ |
24722-72J10-000 |
— | ||
|
7
|
7
24722-72J11-000
Bolt,side Brg Hsg
4AT; 1995-10-01~ |
24722-72J11-000 |
— | ||
|
8
|
8
24731-58E00-000
カバー,トランスミッション,リヤ
4AT; 1995-10-01~1995-11-01 |
24731-58E00-000 |
— | ||
|
8
|
8
24731-58E10-000
カバー,トランスミッション,リヤ
4AT; 1995-11-01~ |
24731-58E10-000 |
— | ||
|
9
|
9
01550-08353-000
Bolt, rear
4AT; 1995-10-01~ |
01550-08353-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0835B-000 BOLT4AT; 1995-10-01~ |
01550-0835B-000 |
from US $1.12 |
||
|
9
|
9
01550-0835A-000 BOLT4AT; 1995-10-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
09352-50823-600
HOSE(5X8.2X600)
L:600>60; 4AT; 1995-10-01~ |
09352-50823-600 |
— | ||
| replacements | |||||
|
10
|
10
44420-44AR0-000 HOSE SET,FUELL:600>60; 4AT; 1995-10-01~ |
44420-44AR0-000 |
US $11.95 |
||
|
10
|
10
09352-50005-600 Hose(5X8.2X600)L:600>60; 4AT; 1995-10-01~ |
09352-50005-600 |
US $4.10 |
||
|
11
|
11
24790-58E00-000
カバー,トランスミッション,アッパ
4AT; 1995-10-01~ |
24790-58E00-000 |
— | ||
|
12
|
12
09355-35754-600
ホース,3.5X7.5X600
L:600>70; 4AT; 1995-10-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:600>70; 4AT; 1995-10-01~ |
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:600>70; 4AT; 1995-10-01~ |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09355-35754-600
ホース,3.5X7.5X600
L:600>155; 4AT; 1995-10-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:600>155; 4AT; 1995-10-01~ |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:600>155; 4AT; 1995-10-01~ |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
24898-58E00-000
パイプ,バキューム
4AT; 1995-10-01~ |
24898-58E00-000 |
— | ||
| replacement | |||||
|
14
|
14
24898-58E0V-000
パイプ,バキューム
4AT; 1995-10-01~ |
24898-58E0V-000 |
— | ||
|
15
|
15
09408-00111-000 CLAMP4AT; 1995-10-01~ |
09408-00111-000 |
US $2.08 |
||
|
16
|
16
24781-51F02-000
ダイヤフラム,バキューム
4AT; 1995-10-01~ |
24781-51F02-000 |
— | ||
|
17
|
17
01550-06123-000
Bolt
4AT; 1995-10-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BOLTBolt, clamp 4AT; 1995-10-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 BOLT4AT; 1995-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
26584-70GT0-000
Oリングセット
4AT; 1995-10-01~ |
26584-70GT0-000 |
— | ||
|
19
|
19
24822-58E00-000
PLUG,BOOSTER
4AT; 1995-10-01~ |
24822-58E00-000 |
— | ||
| replacement | |||||
|
19
|
19
24822-58E01-000 Plug,booster4AT; 1995-10-01~ |
24822-58E01-000 |
US $5 |
||
|
20
|
20
11871-61D11-000
Bracket,t/m mtg
4AT; 1995-10-01~ |
11871-61D11-000 |
— | ||
|
21
|
21
01550-08353-000
Bolt, rear
4AT; 1995-10-01~ |
01550-08353-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0835B-000 BOLT4AT; 1995-10-01~ |
01550-0835B-000 |
from US $1.12 |
||
|
21
|
21
01550-0835A-000 BOLT4AT; 1995-10-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
22
|
22
24739-58E00-000
ボルト
4AT; 1995-10-01~ |
24739-58E00-000 |
— | ||
|
23
|
23
09247-14027-000 PLUG(14X11.5)Plug, oil drain 4AT; 1996-10-01~ |
09247-14027-000 |
from US $1.76 |
||
|
23
|
23
09247-18003-000 PLUG4AT; 1995-10-01~1996-10-01 |
09247-18003-000 |
US $1.76 |
||
|
24
|
24
24824-71B71-000 GASKET,18X24X24AT; 1996-10-01~ |
24824-71B71-000 |
US $1.52 |
||
|
24
|
24
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) 4AT; 1995-10-01~1996-10-01 |
09160-18018-000 |
US $0.96 |
||
|
25
|
25
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 4AT; 1995-10-01~ |
09407-14403-000 |
from US $2.08 |
||
|
26
|
26
09407-12404-000 CLAMP(L:140)4AT; 1995-10-01~ |
09407-12404-000 |
US $2.08 |
||
|
27
|
27
01421-10353-000
Stud 10x1.25x55
4AT; 1995-10-01~ |
01421-10353-000 |
— | ||
| replacements | |||||
|
27
|
27
01421-1035A-000 BOLT,STUD4AT; 1995-10-01~ |
01421-1035A-000 |
from US $4.13 |
||
|
27
|
27
01421-1035B-000 BOLT,STUD4AT; 1995-10-01~ |
01421-1035B-000 |
US $17.30 |
||
|
28
|
28
01550-10203-000
Bolt
4AT; 1995-10-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-1020A-000 BOLTBolt, bal sprocket 4AT; 1995-10-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
29
|
29
01550-10553-000
Bolt
4AT; 1995-10-01~ |
01550-10553-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-1055B-000 Bolt4AT; 1995-10-01~ |
01550-1055B-000 |
from US $1.44 |
||
|
30
|
30
01550-08653-000
Bolt
4AT; 1995-10-01~ |
01550-08653-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0865B-000 Bolt4AT; 1995-10-01~ |
01550-0865B-000 |
from US $3.84 |
||
|
30
|
30
01550-0865A-000 BOLTBolt, oil pump (l) 4AT; 1995-10-01~ |
01550-0865A-000 |
from US $1.44 |
||
|
31
|
31
01550-06203-000
Bolt
4AT; 1995-10-01~ |
01550-06203-000 |
— | ||
| replacement | |||||
|
31
|
31
01550-0620B-000 BOLTBolt, inspection cap 4AT; 1995-10-01~ |
01550-0620B-000 |
from US $0.76 |
||
|
32
|
32
01550-06353-000
Bolt
4AT; 1995-10-01~ |
01550-06353-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0635B-000 Bolt4AT; 1995-10-01~ |
01550-0635B-000 |
from US $0.91 |
||
|
32
|
32
01550-0635A-000 Bolt4AT; 1995-10-01~ |
01550-0635A-000 |
from US $0.96 |
||
|
33
|
33
26969-58E00-000
Oリング,リダクションブレーキプレッシャ
4AT; 1995-10-01~ |
26969-58E00-000 |
— | ||
