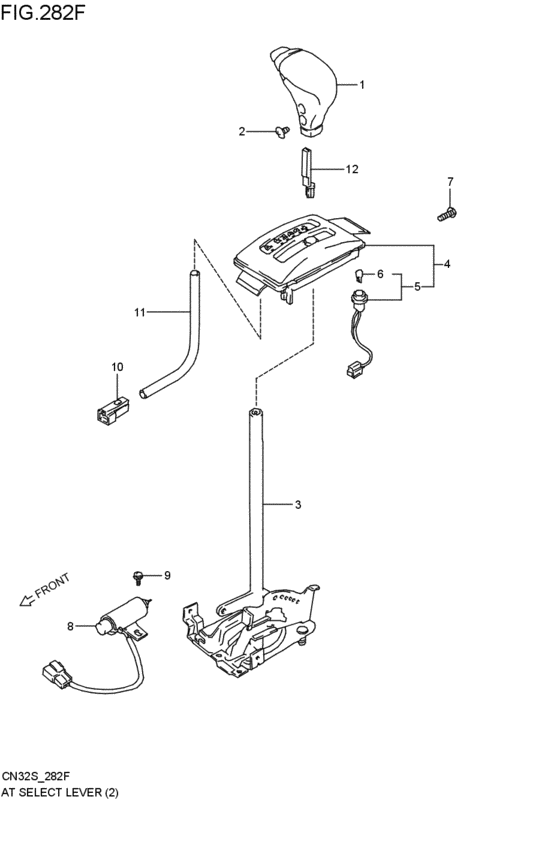

select lever (4AT; 4AT; 1995-10-01~) Diagram Suzuki CERVO MODE
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- number of the gears
- 4AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28160-58E00-5ES
ノブアッシ,セレクタレバー(ブラック)
ブラック; 4AT; 1995-10-01~ |
28160-58E00-5ES |
— | ||
| replacement | |||||
|
1
|
1
28160-58E11-000 KNOB ASSY,SEL LEVERブラック; 4AT; 1995-10-01~ |
28160-58E11-000 |
US $71.39 |
||
|
2
|
2
09125-05117-000 SCREW(5X6)Screw (5x6) 4AT; 1995-10-01~ |
09125-05117-000 |
from US $0.96 |
||
|
3
|
3
28110-58E11-000
レバーアッシ,セレクト
4AT; 1995-10-01~ |
28110-58E11-000 |
— | ||
|
4
|
4
28150-58E10-000
インジケータアッシ,セレクト
4AT; 1995-10-01~ |
28150-58E10-000 |
— | ||
|
5
|
5
28159-62E00-000 LAMP ASSY,ILLUM4AT; 1995-10-01~ |
28159-62E00-000 |
US $12.14 |
||
|
6
|
6
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; 4AT; 1995-10-01~ |
09471-12077-000 |
from US $1.52 |
||
|
7
|
7
02142-05103-000
Screw 5x10
4AT; 1995-10-01~ |
02142-05103-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0510B-000 SCREWBolt 4AT; 1995-10-01~ |
02142-0510B-000 |
from US $0.76 |
||
|
8
|
8
38890-62B10-000 SOLENOID,SHIFT LOCK4AT; 1995-10-01~ |
38890-62B10-000 |
US $253.92 |
||
|
9
|
9
09138-05005-000 SCREW(5X10)4AT; 1995-10-01~ |
09138-05005-000 |
US $12.90 |
||
|
10
|
10
28117-64B60-000 COUPLER,SWITCH WIRE4AT; 1995-10-01~ |
28117-64B60-000 |
US $1.47 |
||
|
11
|
11
28118-64B60-000
チューブ,スイッチワイヤ
4AT; 1995-10-01~ |
28118-64B60-000 |
— | ||
| replacement | |||||
|
11
|
11
28118-64B61-000 TUBE,SWITCH WIRE HARNESS4AT; 1995-10-01~ |
28118-64B61-000 |
US $1.88 |
||
|
12
|
12
28164-62B50-000 GUIDE,DETENT RELEASE ROD4AT; 1995-10-01~ |
28164-62B50-000 |
US $6.18 |
||
