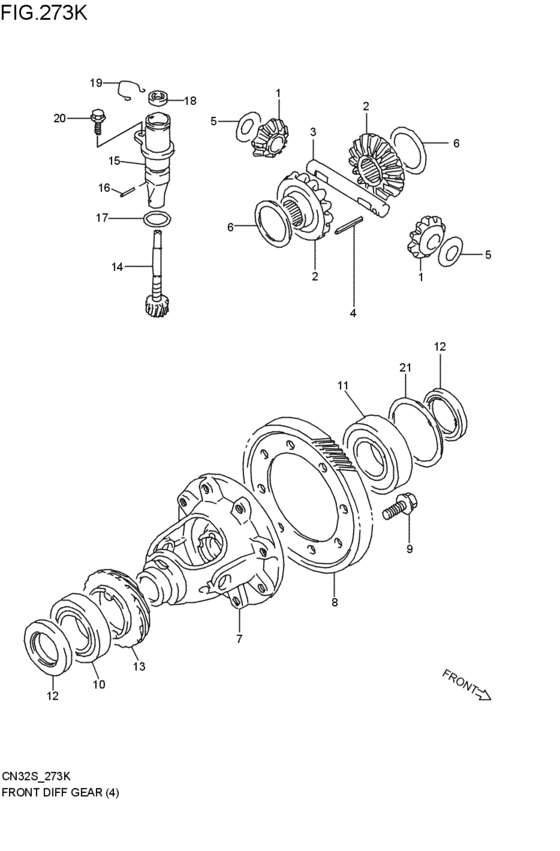

フロントデファレンシャルギヤ (2WD:4AT; 1995-10-01~) Diagram Suzuki CERVO MODE
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- number of the gears
- 4AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-82010-000
ピニオン,ディファレンシャル
2WD:4AT; 1995-10-01~ |
27331-82010-000 |
— | ||
| replacement | |||||
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIAL2WD:4AT; 1995-10-01~ |
27331-78FJ1-000 |
from US $26.60 |
||
|
2
|
2
27341-82000-000
ギヤ,ディファレンシャル
2WD:4AT; 1995-10-01~ |
27341-82000-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-76G12-000 GEAR,DIFF2WD:4AT; 1995-10-01~ |
27341-76G12-000 |
US $64.77 |
||
|
3
|
3
27351-62B00-000 SHAFT,DIFF SIDE PINION2WD:4AT; 1995-10-01~ |
27351-62B00-000 |
from US $13.97 |
||
|
4
|
4
09205-05007-000 PIN,SPRING(5X36)2WD:4AT; 1995-10-01~ |
09205-05007-000 |
US $1.76 |
||
|
5
|
5
09164-15003-000 WASHER2WD:4AT; 1995-10-01~ |
09164-15003-000 |
from US $0.95 |
||
|
6
|
6
09160-35002-000 WASHER(35X46X1)2WD:4AT; 1995-10-01~ |
09160-35002-000 |
from US $1.40 |
||
|
6
|
6
09160-35003-000 WASHER(35X46X1.1)2WD:4AT; 1995-10-01~ |
09160-35003-000 |
from US $1.96 |
||
|
6
|
6
09160-35004-000 WASHER(35X46X1.2)2WD:4AT; 1995-10-01~ |
09160-35004-000 |
from US $1.78 |
||
|
6
|
6
09160-35006-000 WASHER(35X46X0.9)2WD:4AT; 1995-10-01~ |
09160-35006-000 |
from US $1.60 |
||
|
6
|
6
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) 2WD:4AT; 1995-10-01~ |
09160-35008-000 |
from US $6.70 |
||
|
6
|
6
09160-35009-000 WASHER(35X46X1.05)2WD:4AT; 1995-10-01~ |
09160-35009-000 |
from US $6.70 |
||
|
6
|
6
09160-35010-000 WASHER(35X46X1.15)2WD:4AT; 1995-10-01~ |
09160-35010-000 |
from US $6.49 |
||
|
7
|
7
27411-56E01-000
ケース,ディファレンシャル
2WD:4AT; 1995-10-01~ |
27411-56E01-000 |
— | ||
| replacements | |||||
|
7
|
7
27361-62B00-000 WASHER,DIFF SIDE NO.22WD:4AT; 1995-10-01~ |
27361-62B00-000 |
US $11.44 |
||
|
7
|
7
27411-56E02-000
ケース,ディファレンシャル
2WD:4AT; 1995-10-01~ |
27411-56E02-000 |
— | ||
|
8
|
8
27511-58E10-000
ギヤ,ファイナル
2WD:4AT; 1995-10-01~ |
27511-58E10-000 |
— | ||
|
9
|
9
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch 2WD:4AT; 1995-10-01~ |
09103-10189-000 |
from US $2.40 |
||
|
10
|
10
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) 2WD:4AT; 1995-10-01~ |
09262-35038-000 |
from US $22.04 |
||
|
11
|
11
08113-60070-000 Bearing2WD:4AT; 1995-10-01~ |
08113-60070-000 |
from US $10.83 |
||
| replacements | |||||
|
11
|
11
09262-35070-000 BEARING(35X62X14)2WD:4AT; 1995-10-01~ |
09262-35070-000 |
from US $23.20 |
||
|
11
|
11
09262-35021-0A0 BEARING(35X62X14)Bearing 2WD:4AT; 1995-10-01~ |
09262-35021-0A0 |
from US $13.86 |
||
|
12
|
12
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil 2WD:4AT; 1995-10-01~ |
27431-73B20-000 |
US $11.63 |
||
| replacement | |||||
|
12
|
12
27431-73H30-000 SEAL,OIL2WD:4AT; 1995-10-01~ |
27431-73H30-000 |
from US $12.67 |
||
|
13
|
13
26121-73B00-000 GEAR,SPDOM DRIVE2WD:4AT; 1995-10-01~ |
26121-73B00-000 |
US $18.95 |
||
|
14
|
14
26131-73B02-000 GEAR,SPDOM DRIVEN2WD:4AT; 1995-10-01~ |
26131-73B02-000 |
US $69.55 |
||
|
15
|
15
29431-60B02-000
ケース,スピードメータドリブンギヤ
2WD:4AT; 1995-10-01~ |
29431-60B02-000 |
— | ||
| replacement | |||||
|
15
|
15
29431-74C00-000 CASE,SPDOM DRIVEN GEAR2WD:4AT; 1995-10-01~ |
29431-74C00-000 |
US $61.56 |
||
|
16
|
16
09205-03012-000 PIN,SPRING(3X16)Pin, gear 2WD:4AT; 1995-10-01~ |
09205-03012-000 |
from US $3.15 |
||
|
17
|
17
09280-16012-000 O RING(D:3.6,ID:15.4)2WD:4AT; 1995-10-01~ |
09280-16012-000 |
US $21.70 |
||
|
18
|
18
09282-08001-000 SEAL,OIL(8X16X5)2WD:4AT; 1995-10-01~ |
09282-08001-000 |
US $2.31 |
||
|
19
|
19
26191-61D01-000
クリップ,スピードメータケース
2WD:4AT; 1995-10-01~ |
26191-61D01-000 |
— | ||
| replacement | |||||
|
19
|
19
26191-61D0V-000 CLIP,SPEEDOMETER CASE2WD:4AT; 1995-10-01~ |
26191-61D0V-000 |
US $12.62 |
||
|
20
|
20
01550-06163-000
Bolt
2WD:4AT; 1995-10-01~ |
01550-06163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0616B-000 BOLT2WD:4AT; 1995-10-01~ |
01550-0616B-000 |
from US $0.76 |
||
|
20
|
20
01550-0616A-000 BOLT2WD:4AT; 1995-10-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
21
|
21
27441-56E00-040 SHIM,DIFF SIDE2WD:4AT; 1995-10-01~ |
27441-56E00-040 |
US $5.30 |
||
|
21
|
21
27441-56E00-050 SHIM,DIFF SIDE2WD:4AT; 1995-10-01~ |
27441-56E00-050 |
US $5.30 |
||
|
21
|
21
27441-56E00-060 SHIM,DIFF SIDE2WD:4AT; 1995-10-01~ |
27441-56E00-060 |
US $5.30 |
||
|
21
|
21
27441-56E00-070 SHIM,DIFF SIDE2WD:4AT; 1995-10-01~ |
27441-56E00-070 |
US $5.30 |
||
