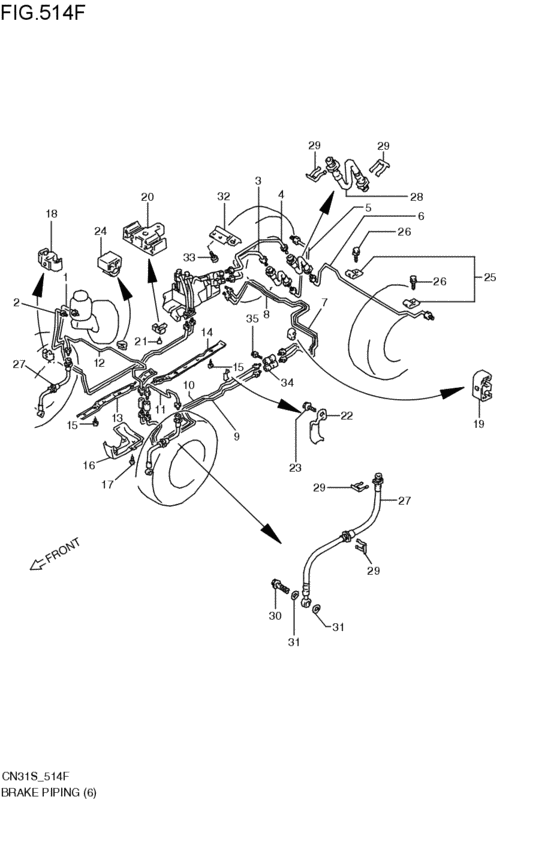

brakes piping (4ABSシヨウ; DOHC:T1:4ABS; 1990-06-01~1991-08-01) Diagram Suzuki CERVO MODE
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- SR-F
- type
- T1
- abs
- 4ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-50E00-000
パイプ,マスタプライマリツーハイドロリックバルブ
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51410-50E00-000 |
— | ||
|
2
|
2
51415-50E00-000
パイプ,マスタセカンダリツーハイドロリックバルブ
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51415-50E00-000 |
— | ||
|
3
|
3
51420-50E00-000
パイプ,プレッシャバルブプライマリツーホース
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51420-50E00-000 |
— | ||
|
4
|
4
51425-50E00-000
パイプ,プレッシャバルブセカンダリツーホース
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51425-50E00-000 |
— | ||
|
5
|
5
51430-50E00-000
パイプ,ホースプライマリツーリヤブレーキ,ライト
4ABS; DOHC:T1:4ABS:2WD; 1990-06-01~1991-08-01 |
51430-50E00-000 |
— | ||
|
6
|
6
51435-50E00-000
パイプ,ホースセカンダリツーリヤブレーキ,レフト
4ABS; DOHC:T1:4ABS:2WD; 1990-06-01~1991-08-01 |
51435-50E00-000 |
— | ||
|
7
|
7
51440-50E00-000
パイプ,ハイドロバルブプライマリツージョイント
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51440-50E00-000 |
— | ||
|
8
|
8
51445-50E00-000
パイプ,ハイドロバルブセカンダリツージョイント
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51445-50E00-000 |
— | ||
|
9
|
9
51450-50E00-000
パイプ,センタジョイントプライマリツーフロント
4ABS; DOHC:T1:4ABS:2WD; 1990-06-01~1991-08-01 |
51450-50E00-000 |
— | ||
|
10
|
10
51455-50E00-000
パイプ,センタジョイントセカンダリツーフロント
4ABS; DOHC:T1:4ABS:2WD; 1990-06-01~1991-08-01 |
51455-50E00-000 |
— | ||
|
11
|
11
51460-50E00-000
パイプ,ジョイントプライマリツーブレーキ,レフト
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51460-50E00-000 |
— | ||
|
12
|
12
51465-50E00-000
パイプ,ジョイントセカンダリツーブレーキライト
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51465-50E00-000 |
— | ||
| replacement | |||||
|
12
|
12
51465-50E02-000
パイプ,ジョイントセカンダリツーフロントブレーキ
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51465-50E02-000 |
— | ||
|
13
|
13
51711-50E00-000
カバー,ブレーキパイプ,フロント
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51711-50E00-000 |
— | ||
|
14
|
14
51721-50E00-000
カバー,ブレーキパイプ,リヤ
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51721-50E00-000 |
— | ||
|
15
|
15
03541-05103-000
Screw5 x 10
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
03541-05103-000 |
— | ||
| replacements | |||||
|
15
|
15
03541-0510B-000 SCREW4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
03541-0510B-000 |
from US $0.80 |
||
|
15
|
15
03541-0510A-000 SCREWScrew, rr cover 4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
03541-0510A-000 |
from US $0.68 |
||
|
16
|
16
51731-50E00-000
カバー,ブレーキパイプダッシュ,アンダ
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51731-50E00-000 |
— | ||
|
17
|
17
03211-05083-000
スクリュ
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
03211-05083-000 |
— | ||
| replacement | |||||
|
17
|
17
03211-0508B-000 SCREW4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
03211-0508B-000 |
US $9.90 |
||
|
18
|
18
51751-60B00-000 CLAMP,BRAKE PIPE4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51751-60B00-000 |
US $1.60 |
||
|
19
|
19
51751-50E00-000
クランプ,ブレーキパイプ
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51751-50E00-000 |
— | ||
|
20
|
20
51751-70B60-000
CLAMP,BK PIPE UNDER FL
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51751-70B60-000 |
— | ||
|
21
|
21
02122-06203-000
Screw
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
02122-06203-000 |
— | ||
| replacements | |||||
|
21
|
21
02122-0620B-000 SCREW4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
02122-0620B-000 |
from US $3.04 |
||
|
21
|
21
02122-0620A-000 SCREW4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
02122-0620A-000 |
from US $0.77 |
||
|
22
|
22
09403-07310-000
Clamp clutch ca
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
09403-07310-000 |
— | ||
|
23
|
23
09132-06006-000 SCREW(6X12)4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
09132-06006-000 |
US $1.60 |
||
|
24
|
24
51752-70B00-000 CLAMP,BK PIPE4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51752-70B00-000 |
US $1.60 |
||
|
25
|
25
09403-06409-000
Clamp
4ABS; DOHC:T1:4ABS:2WD; 1990-06-01~1991-08-01 |
09403-06409-000 |
— | ||
|
26
|
26
09132-06006-000 SCREW(6X12)4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
09132-06006-000 |
US $1.60 |
||
|
27
|
27
51550-70B00-000 HOSE,FR DISC FLEXIBLE4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51550-70B00-000 |
US $48.21 |
||
|
28
|
28
51570-50A50-000 HOSE,RR BRAKE FLEXIBLE4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51570-50A50-000 |
US $18.40 |
||
|
29
|
29
09383-13001-000 E RING4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
29
|
29
09383-13003-000 E-RING4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
09383-13003-000 |
from US $1.60 |
||
|
30
|
30
09360-10026-000 Union bolt4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
09360-10026-000 |
from US $1.85 |
||
|
31
|
31
09161-10009-000 WASHER(10X15X1.5)Lock washer 4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
09161-10009-000 |
from US $1.06 |
||
|
32
|
32
51595-50E00-000 BRACKET,FLEXIBLE HOSE,RR4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51595-50E00-000 |
US $7.29 |
||
|
33
|
33
01570-06123-000
Bolt
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
01570-0612B-000 BOLTBolt, upper 4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
01570-0612B-000 |
US $0.80 |
||
|
33
|
33
01570-0612A-000 BOLTBolt 4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
01570-0612A-000 |
from US $0.80 |
||
|
34
|
34
51630-82040-000 JOINT,4WAY BRAKE4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
51630-82040-000 |
US $24 |
||
|
35
|
35
01550-06253-000
Bolt (6x25)
4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0625B-000 BOLTBolt, head cover 4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
01550-0625B-000 |
from US $0.91 |
||
|
35
|
35
01550-0625A-000 BOLTBolt 4ABS; DOHC:T1:4ABS; 1990-06-01~1991-08-01 |
01550-0625A-000 |
from US $0.96 |
||
