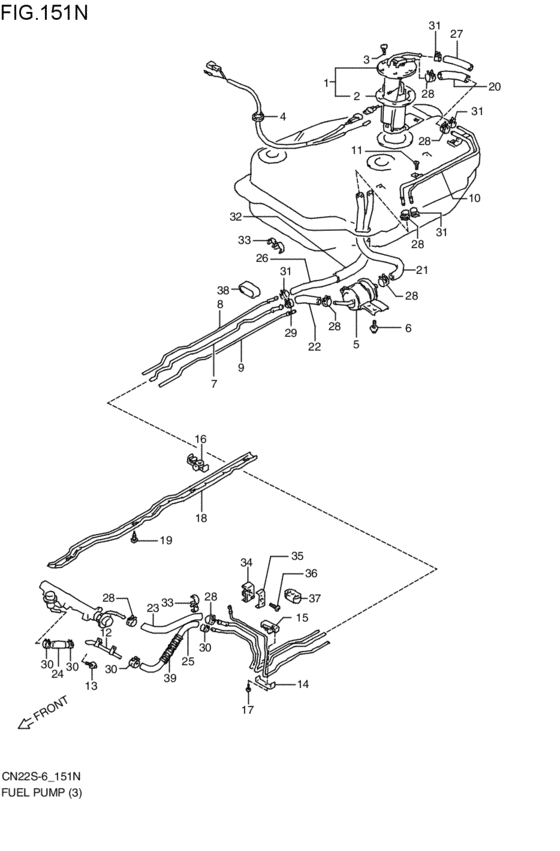

Fuel Pump (4V:EPI; 1997-05-01~1998-06-01) Diagram Suzuki CERVO MODE
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- EPI
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- M
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-72G00-000 PUMP ASSY,FUELDENSO; 4V:EPI:(S,M,SR,Z); 1997-05-01~1998-06-01 |
15100-72G00-000 |
US $732.16 |
||
|
2
|
2
15111-56F00-000 GASKET,FUEL PUMPDENSO; 4V:EPI:(S,M,SR,Z); 1997-05-01~1998-06-01 |
15111-56F00-000 |
US $85.33 |
||
|
3
|
3
09136-05045-000 SCREW(5X10)4V:EPI; 1997-05-01~1998-06-01 |
09136-05045-000 |
US $0.96 |
||
|
4
|
4
15109-70G00-000
HARNESS,WIRING
4V:EPI; 1997-05-01~1998-06-01 |
15109-70G00-000 |
— | ||
|
5
|
5
15410-51E01-000 FILTER,FUEL4V:EPI; 1997-05-01~1998-06-01 |
15410-51E01-000 |
US $61.56 |
||
|
6
|
6
01550-08123-000
Bolt
4V:EPI; 1997-05-01~1998-06-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0812B-000 BoltPlug, drain 4V:EPI; 1997-05-01~1998-06-01 |
01550-0812B-000 |
from US $0.96 |
||
|
6
|
6
01550-0812A-000 BOLT4V:EPI; 1997-05-01~1998-06-01 |
01550-0812A-000 |
from US $0.91 |
||
|
7
|
7
15811-70G00-000
PIPE,FUEL
4V:EPI; 1997-05-01~1998-06-01 |
15811-70G00-000 |
— | ||
|
8
|
8
15861-70G00-000
PIPE,FUEL RTN
4V:EPI; 1997-05-01~1998-06-01 |
15861-70G00-000 |
— | ||
|
9
|
9
89483-70G00-000
パイプ,フューエルエバポ
4V:EPI; 1997-05-01~1998-06-01 |
89483-70G00-000 |
— | ||
| replacement | |||||
|
9
|
9
89483-70GV0-000
PIPE,FUEL EVAP
4V:EPI; 1997-05-01~1998-06-01 |
89483-70GV0-000 |
— | ||
|
10
|
10
15820-51E50-000
PIPE,TANK SIDE
4V:EPI; 1997-05-01~1998-06-01 |
15820-51E50-000 |
— | ||
|
11
|
11
15825-72F10-000 SCREW,TANK SIDE PIPE4V:EPI; 1997-05-01~1998-06-01 |
15825-72F10-000 |
US $3.28 |
||
|
12
|
12
15820-72G11-000
PIPE,FUEL
4V:EPI; 1997-05-01~1998-06-01 |
15820-72G11-000 |
— | ||
|
13
|
13
02162-06103-000
Bolt
4V:EPI; 1997-05-01~1998-06-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
13
|
13
02162-0610A-000 SCREW4V:EPI; 1997-05-01~1998-06-01 |
02162-0610A-000 |
from US $0.64 |
||
|
14
|
14
15829-72B60-000 STAY,FUEL PIPE4V:EPI; 1997-05-01~1998-06-01 |
15829-72B60-000 |
US $3.13 |
||
|
15
|
15
15819-72B60-000 CLAMP,FUEL PIPE4V:EPI; 1997-05-01~1998-06-01 |
15819-72B60-000 |
US $2.50 |
||
|
16
|
16
15818-72B60-000 CLAMP,FUEL PIPE4V:EPI; 1997-05-01~1998-06-01 |
15818-72B60-000 |
US $2.21 |
||
|
17
|
17
02122-06203-000
Screw
4V:EPI; 1997-05-01~1998-06-01 |
02122-06203-000 |
— | ||
| replacements | |||||
|
17
|
17
02122-0620B-000 SCREW4V:EPI; 1997-05-01~1998-06-01 |
02122-0620B-000 |
from US $3.04 |
||
|
17
|
17
02122-0620A-000 SCREW4V:EPI; 1997-05-01~1998-06-01 |
02122-0620A-000 |
from US $0.77 |
||
|
18
|
18
15871-70G01-000
COVER,FUEL PIPE
4V:EPI; 1997-05-01~1998-06-01 |
15871-70G01-000 |
— | ||
|
19
|
19
03541-05103-000
Screw5 x 10
4V:EPI; 1997-05-01~1998-06-01 |
03541-05103-000 |
— | ||
| replacements | |||||
|
19
|
19
03541-0510B-000 SCREW4V:EPI; 1997-05-01~1998-06-01 |
03541-0510B-000 |
from US $0.80 |
||
|
19
|
19
03541-0510A-000 SCREWScrew, rr cover 4V:EPI; 1997-05-01~1998-06-01 |
03541-0510A-000 |
from US $0.68 |
||
|
20
|
20
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>120; 4V:EPI; 1997-05-01~1998-06-01 |
09356-75137-600 |
from US $115.33 |
||
|
21
|
21
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>115; 4V:EPI; 1997-05-01~1998-06-01 |
09356-75137-600 |
from US $115.33 |
||
|
22
|
22
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>125; 4V:EPI; 1997-05-01~1998-06-01 |
09356-75137-600 |
from US $115.33 |
||
|
23
|
23
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>240; 4V:EPI; 1997-05-01~1998-06-01 |
09356-75137-600 |
from US $115.33 |
||
|
24
|
24
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>60; 4V:EPI; 1997-05-01~1998-06-01 |
09356-58127-600 |
from US $15.84 |
||
|
25
|
25
09356-55113-600
ホース,5.5X11.5X600
L:600>250; 4V:EPI; 1997-05-01~1998-06-01 |
09356-55113-600 |
— | ||
| replacement | |||||
|
25
|
25
09356-55118-600 HOSEL:600>250; 4V:EPI; 1997-05-01~1998-06-01 |
09356-55118-600 |
US $79.49 |
||
|
26
|
26
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>330; 4V:EPI; 1997-05-01~1998-06-01 |
09356-58127-600 |
from US $15.84 |
||
|
27
|
27
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>110; 4V:EPI; 1997-05-01~1998-06-01 |
09356-58127-600 |
from US $15.84 |
||
|
28
|
28
09401-12404-000 CLIPClip 4V:EPI; 1997-05-01~1998-06-01 |
09401-12404-000 |
from US $1.52 |
||
|
29
|
29
09401-11418-000
Clip
4V:EPI; 1998-03-01~1998-06-01 |
09401-11418-000 |
— | ||
| replacement | |||||
|
29
|
29
09401-11420-000 CLIP4V:EPI; 1998-03-01~1998-06-01 |
09401-11420-000 |
US $1.52 |
||
|
29
|
29
09401-13418-000 CLIP4V:EPI; 1997-05-01~1998-03-01 |
09401-13418-000 |
US $27.20 |
||
|
30
|
30
09401-10409-000 CLIP4V:EPI; 1997-05-01~1998-06-01 |
09401-10409-000 |
from US $1.12 |
||
|
31
|
31
09401-11415-000 CLIP4V:EPI; 1997-05-01~1998-06-01 |
09401-11415-000 |
from US $1.06 |
||
|
32
|
32
09320-13016-000 CUSHIONL:280>110; 4V:EPI; 1997-05-01~1998-06-01 |
09320-13016-000 |
US $52.30 |
||
|
33
|
33
09408-00121-000 CLAMP4V:EPI; 1997-05-01~1998-06-01 |
09408-00121-000 |
US $1.52 |
||
|
34
|
34
15817-72B60-000 CLAMP,FUEL PIPE DASH4V:EPI; 1997-05-01~1998-06-01 |
15817-72B60-000 |
US $1.91 |
||
|
35
|
35
15827-72B60-000 STAY,FUEL PIPE CLAMP4V:EPI; 1997-05-01~1998-06-01 |
15827-72B60-000 |
US $2.21 |
||
|
36
|
36
09139-06098-000
スクリュ,6X25
4V:EPI; 1997-05-01~1998-06-01 |
09139-06098-000 |
— | ||
| replacement | |||||
|
36
|
36
02142-0625A-000 SCREW4V:EPI; 1997-05-01~1998-06-01 |
02142-0625A-000 |
from US $0.77 |
||
|
37
|
37
15438-75F00-000 CUSHION,FUEL PIPE4V:EPI; 1997-05-01~1998-06-01 |
15438-75F00-000 |
US $4.20 |
||
|
38
|
38
15439-70G10-000 CUSHION,FUEL PIPE4V:EPI; 1997-11-01~1998-06-01 |
15439-70G10-000 |
from US $1.36 |
||
|
38
|
38
15439-75F00-000 CUSHION,FUEL PIPE4V:EPI; 1997-05-01~1997-11-01 |
15439-75F00-000 |
US $5.48 |
||
|
39
|
39
17858-86501-000 PROTECTOR,HOSEL:415>90; 4V:EPI; 1997-05-01~1998-06-01 |
17858-86501-000 |
US $9.60 |
||
