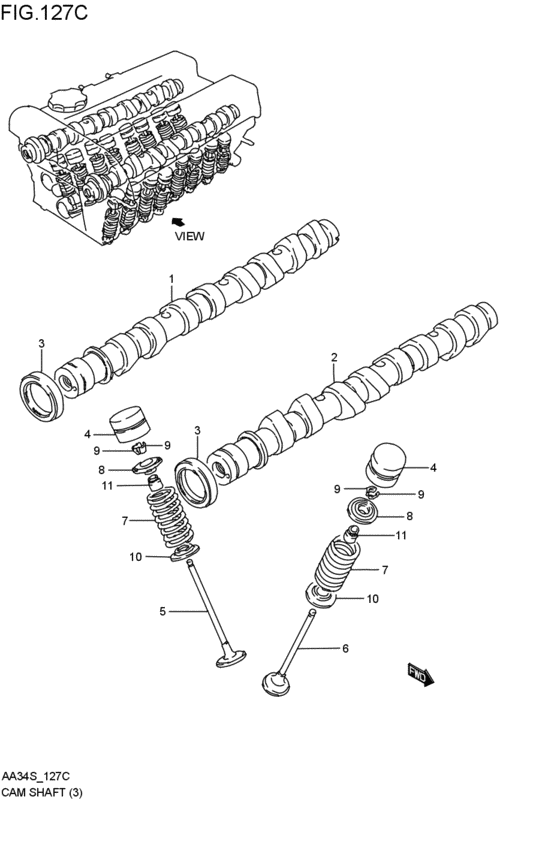

camshaft / valve (DOHC; 1988-08-01~) Diagram Suzuki CULTUS
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12711-64B11-000 CAMSHAFT,INTAKEDOHC; 1988-08-01~ |
12711-64B11-000 |
US $264.96 |
||
|
2
|
2
12721-64B11-000
Camshaft,exhaust
DOHC; 1988-08-01~ |
12721-64B11-000 |
— | ||
|
3
|
3
09283-32040-000
オイルシール,32X47X6
DOHC; 1988-08-01~ |
09283-32040-000 |
— | ||
| replacement | |||||
|
3
|
3
09283-32042-000 SEAL,OIL(32X47X6)DOHC; 1988-08-01~ |
09283-32042-000 |
from US $8.03 |
||
|
4
|
4
12891-86512-000
アジャスタ,ハイドロリックバルブラッシュ
DOHC; 1988-08-01~ |
12891-86512-000 |
— | ||
| replacement | |||||
|
4
|
4
12891-86521-000 ADJUSTER,HYDR VALVE LASHDOHC; 1988-08-01~ |
12891-86521-000 |
US $114.77 |
||
|
5
|
5
12911-86511-000
Valve,intake
DOHC; 1988-08-01~ |
12911-86511-000 |
— | ||
|
6
|
6
12915-86561-000
VALVE,EXH
DOHC; 1988-08-01~ |
12915-86561-000 |
— | ||
|
7
|
7
12921-86501-000
Spring,valve
NHK; DOHC; 1988-08-01~ |
12921-86501-000 |
— | ||
|
8
|
8
12931-86500-000
リテーナ,バルブスプリング
DOHC; 1988-08-01~ |
12931-86500-000 |
— | ||
| replacement | |||||
|
8
|
8
12931-89J00-000 RETAINER,VALVE SPRINGDOHC; 1988-08-01~ |
12931-89J00-000 |
US $8.11 |
||
|
9
|
9
12932-24400-000 COTTER,VALVEDOHC; 1988-08-01~ |
12932-24400-000 |
from US $1.17 |
||
|
10
|
10
12933-86510-000 SEAT,VALVE SPRINGDOHC; 1988-08-01~ |
12933-86510-000 |
from US $1.52 |
||
|
11
|
11
09289-05012-000 SEAL,OIL(5.5X11.5X9.3)DOHC; 1988-08-01~ |
09289-05012-000 |
from US $3.94 |
||
