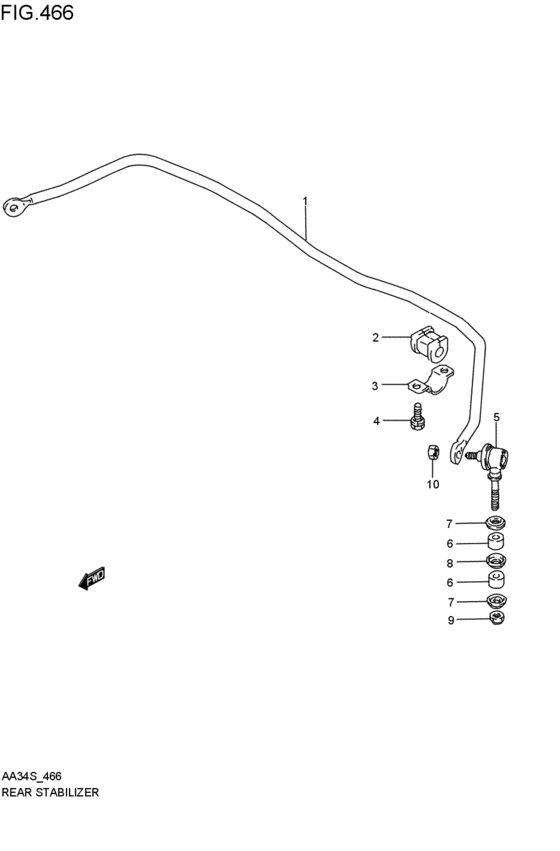

rear stabilizer ((2ドア:RE,3ドア:GTI); 2WD:RE,3DR:GTI; 1988-08-01~) Diagram Suzuki CULTUS
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46611-64B72-000
BAR,RR STABILIZER
NHK; 2WD:GTI:3DR; 1988-08-01~1991-06-01 |
46611-64B72-000 |
— | ||
|
1
|
1
46611-70C70-000 BAR,RR STABILIZERNHK; 2WD:(2DR:RE,3DR:GTI); 1991-07-01~ |
46611-70C70-000 |
US $157.87 |
||
|
2
|
2
46641-60B00-000
MOUNT,RR STAB BAR
2WD:3DR:GTI; 1988-08-01~1991-06-01 |
46641-60B00-000 |
— | ||
|
2
|
2
46641-70C00-000 MOUNT,RR STAB BAR2WD:(2DR:RE,3DR:GTI); 1991-07-01~ |
46641-70C00-000 |
US $12.16 |
||
|
3
|
3
46642-60B00-000 BRACKET,RR STABILIZER BAR2DR:2WD:RE,3DR:GTI; 1988-08-01~ |
46642-60B00-000 |
US $6.24 |
||
|
4
|
4
01570-08203-000
Bolt
2DR:2WD:RE,3DR:GTI; 1988-08-01~ |
01570-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 Bolt2DR:2WD:RE,3DR:GTI; 1988-08-01~ |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 BOLT2DR:2WD:RE,3DR:GTI; 1988-08-01~ |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
46630-60B00-000 JOINT,STABILIZER BAR3DR:GTI; 1988-08-01~1989-12-01 |
46630-60B00-000 |
US $19.93 |
||
|
5
|
5
46630-60B01-000 JOINT,STABILIZER BAR2DR:2WD:RE,3DR:GTI; 1989-12-01~ |
46630-60B01-000 |
US $57.60 |
||
|
6
|
6
09320-10024-000 CUSHION2DR:2WD:RE,3DR:GTI; 1988-08-01~ |
09320-10024-000 |
US $5.92 |
||
|
7
|
7
09165-08001-000 WASHER3DR:GTI; 1988-08-01~1989-12-01 |
09165-08001-000 |
US $1.92 |
||
|
7
|
7
09165-10002-000 WASHER2DR:2WD:RE,3DR:GTI; 1989-12-01~ |
09165-10002-000 |
US $2.08 |
||
|
8
|
8
09169-13001-000
WASHER
3DR:GTI; 1988-08-01~1989-12-01 |
09169-13001-000 |
— | ||
|
8
|
8
09169-14008-000 WASHER2DR:2WD:RE,3DR:GTI; 1989-12-01~ |
09169-14008-000 |
US $23.60 |
||
|
9
|
9
09159-08061-000 NUT3DR:GTI; 1988-08-01~1989-12-01 |
09159-08061-000 |
US $1.28 |
||
|
9
|
9
09159-08083-000 NUT2DR:2WD:RE,3DR:GTI; 1989-12-01~ |
09159-08083-000 |
from US $1.28 |
||
|
10
|
10
09159-10056-000 NUT2DR:2WD:RE,3DR:GTI; 1988-08-01~ |
09159-10056-000 |
US $1.12 |
||
