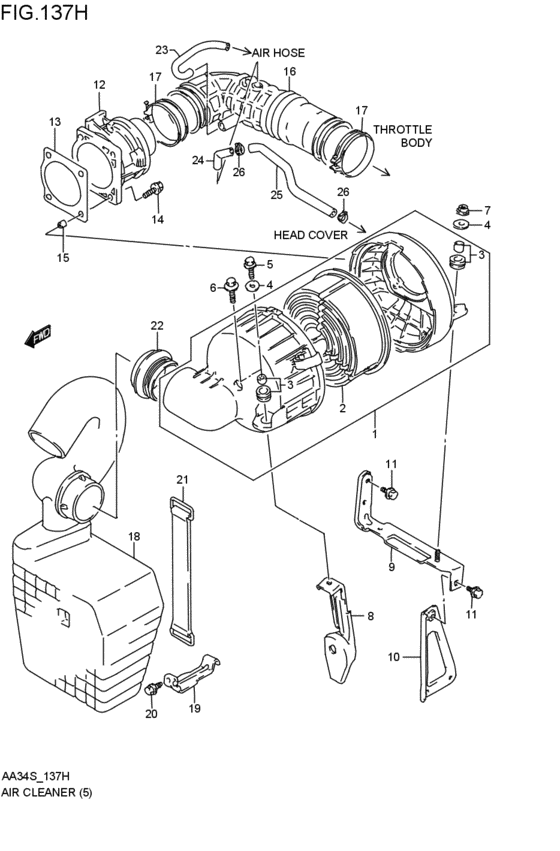

air cleaner (DOHC; 1990-09-01~) Diagram Suzuki CULTUS
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-64B03-000
CLEANER ASSY,AIR
DENSO; DOHC; 1990-09-01~ |
13700-64B03-000 |
— | ||
|
2
|
2
13780-82400-000
ELEMENT,AIR CLEANER
DENSO; DOHC; 1990-09-01~ |
13780-82400-000 |
— | ||
| replacement | |||||
|
2
|
2
13780-824A0-000
Element,air cleaner
DENSO; DOHC; 1990-09-01~ |
13780-824A0-000 |
— | ||
|
3
|
3
13813-64BT0-000 GROMMET SET,AIR CLEANERDENSO; DOHC; 1990-09-01~ |
13813-64BT0-000 |
US $7.60 |
||
|
4
|
4
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) DOHC; 1990-09-01~1993-11-01 |
09160-06077-000 |
from US $0.96 |
||
|
5
|
5
01550-06203-000
Bolt
DOHC; 1990-09-01~1993-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0620B-000 BOLTBolt, inspection cap DOHC; 1990-09-01~1993-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
6
|
6
09116-06167-000 BOLT(6X20)Bolt (6x20) DOHC; 1993-11-01~ |
09116-06167-000 |
from US $1.37 |
||
|
7
|
7
08316-10063-000
Nut
DOHC; 1990-09-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUTDOHC; 1990-09-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
13811-61B00-000 BRACKET,AIR CLNR,NO.1DOHC; 1990-09-01~ |
13811-61B00-000 |
US $6.33 |
||
|
9
|
9
13815-64B01-000
BRACKET,AIR CLNR NO.2
DOHC; 1990-09-01~ |
13815-64B01-000 |
— | ||
|
10
|
10
13825-64B00-000
Stay,air clnr brkt
DOHC; 1990-09-01~ |
13825-64B00-000 |
— | ||
|
11
|
11
01550-06123-000
Bolt
DOHC; 1990-09-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp DOHC; 1990-09-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLTDOHC; 1990-09-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
13800-64B40-000
Meter,air flow
DOHC; 1990-09-01~ |
13800-64B40-000 |
— | ||
|
13
|
13
13805-64B01-000
GASKET,AFM
DOHC; 1990-09-01~ |
13805-64B01-000 |
— | ||
|
14
|
14
01550-06253-000
Bolt (6x25)
DOHC; 1990-09-01~ |
01550-06253-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0625B-000 BOLTBolt, head cover DOHC; 1990-09-01~ |
01550-0625B-000 |
from US $0.91 |
||
|
14
|
14
01550-0625A-000 BOLTBolt DOHC; 1990-09-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
15
|
15
09180-06208-000 SPACER(6.8X10X6)DOHC; 1990-09-01~ |
09180-06208-000 |
US $13.20 |
||
|
16
|
16
13881-64B11-000
HOSE,AFM OUTLET
DOHC; 1990-09-01~ |
13881-64B11-000 |
— | ||
|
17
|
17
09402-68208-000 CLAMPDOHC; 1990-09-01~ |
09402-68208-000 |
from US $6.72 |
||
|
18
|
18
13760-64B02-000 RESONATOR ASSY,AIR SUCTIONDOHC; 1990-09-01~ |
13760-64B02-000 |
US $114.45 |
||
|
19
|
19
13765-64B02-000 BRACKET,RESONATORDOHC; 1990-09-01~ |
13765-64B02-000 |
US $10.78 |
||
|
20
|
20
01550-06123-000
Bolt
DOHC; 1990-09-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0612B-000 BOLTBolt, clamp DOHC; 1990-09-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
20
|
20
01550-0612A-000 BOLTDOHC; 1990-09-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
09462-00015-000 BANDDOHC; 1990-09-01~ |
09462-00015-000 |
from US $4.90 |
||
|
22
|
22
13766-64B00-000 GROMMET,RESONATORDOHC; 1990-09-01~ |
13766-64B00-000 |
US $21.60 |
||
|
23
|
23
11192-64B11-000 PIPE,VACUUMDOHC; 1990-09-01~ |
11192-64B11-000 |
US $19.01 |
||
|
24
|
24
11197-64B00-000
パイプ,ブリーザ
DOHC; 1990-09-01~ |
11197-64B00-000 |
— | ||
|
25
|
25
11191-64B11-000
Hose,breather
DOHC; 1990-09-01~ |
11191-64B11-000 |
— | ||
|
26
|
26
09401-18404-000 CLIPDOHC; 1990-09-01~ |
09401-18404-000 |
from US $1.33 |
||
