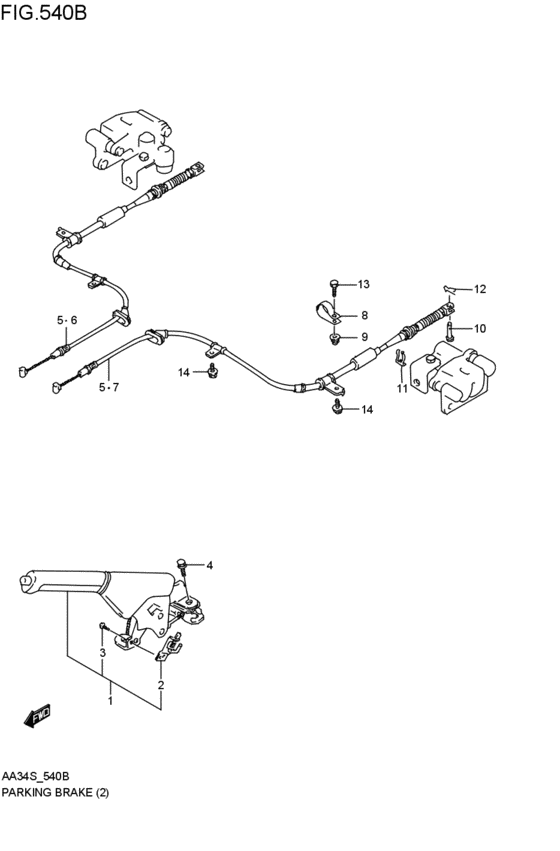

parking brakes (GTI; 1988-08-01~) Diagram Suzuki CULTUS
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-60B00-5ES LEVER ASSY,PARK BKブラック; GTI; 1988-08-01~ |
54100-60B00-5ES |
US $90.90 |
||
|
2
|
2
37940-60A10-000 SWITCH ASSY,PARKING BRAKEGTI; 1988-08-01~ |
37940-60A10-000 |
US $13.12 |
||
|
3
|
3
02142-04103-000
Screw 4x10
GTI; 1988-08-01~ |
02142-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0410A-000 SCREWGTI; 1988-08-01~ |
02142-0410A-000 |
from US $0.76 |
||
|
4
|
4
01570-08163-000
Bolt
GTI; 1988-08-01~ |
01570-08163-000 |
— | ||
| replacement | |||||
|
4
|
4
01570-0816A-000 BOLTGTI; 1988-08-01~ |
01570-0816A-000 |
from US $0.96 |
||
|
5
|
5
54400-64B00-000
CABLE,PARKING BRAKE
GTI:2WD; 1988-08-01~ |
54400-64B00-000 |
— | ||
|
8
|
8
54491-79000-000 BAND,CABLEGTI; 1988-08-01~ |
54491-79000-000 |
US $2.58 |
||
|
9
|
9
08319-31063-000
Nut
GTI; 1993-11-01~ |
08319-31063-000 |
— | ||
| replacement | |||||
|
9
|
9
08319-3106A-000 NUTGTI; 1993-11-01~ |
08319-3106A-000 |
from US $1.44 |
||
|
9
|
9
09159-06071-000 NUTGTI; 1988-08-01~1993-11-01 |
09159-06071-000 |
US $0.96 |
||
|
10
|
10
09200-06064-000 PINGTI; 1988-08-01~ |
09200-06064-000 |
US $23.60 |
||
|
11
|
11
09383-13001-000 E RINGGTI; 1988-08-01~ |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
11
|
11
09383-13003-000 E-RINGGTI; 1988-08-01~ |
09383-13003-000 |
from US $1.60 |
||
|
12
|
12
09385-06012-000 CLIPGTI; 1988-08-01~ |
09385-06012-000 |
from US $1.22 |
||
|
13
|
13
09116-06146-000 BOLT(6X25)Bolt (6x20) GTI; 1988-08-01~ |
09116-06146-000 |
US $3.71 |
||
| replacement | |||||
|
13
|
13
09116-06150-000 BOLT(6X25)Bolt, air cleaner chamber GTI; 1988-08-01~ |
09116-06150-000 |
from US $1.28 |
||
|
14
|
14
01570-06123-000
Bolt
GTI; 1988-08-01~ |
01570-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01570-0612B-000 BOLTBolt, upper GTI; 1988-08-01~ |
01570-0612B-000 |
US $0.80 |
||
|
14
|
14
01570-0612A-000 BOLTBolt GTI; 1988-08-01~ |
01570-0612A-000 |
from US $0.80 |
||
