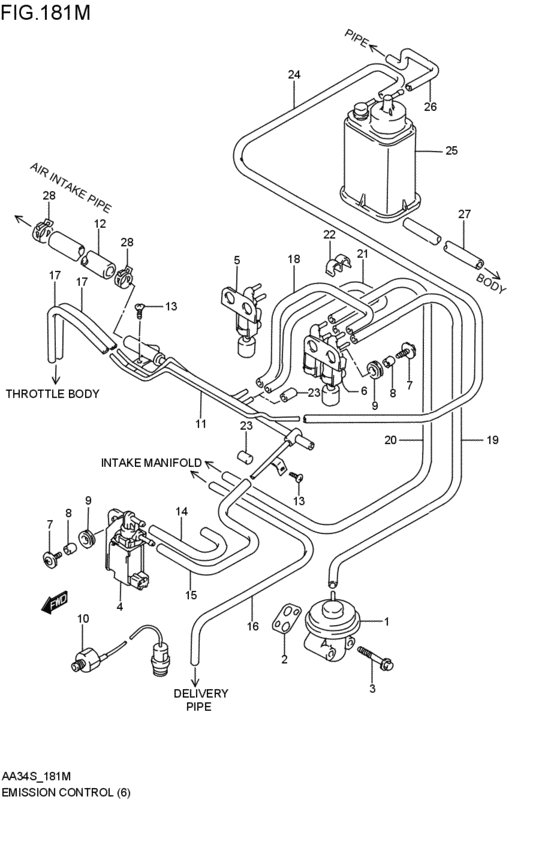

emission control (AT:DOHC; 1988-08-01~1994-10-01) Diagram Suzuki CULTUS
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-86510-000
バルブ,EGR
AT:DOHC; 1988-08-01~1994-10-01 |
18111-86510-000 |
— | ||
|
2
|
2
18529-60A00-000 GASKET,EGR VALVEAT:DOHC; 1988-08-01~1994-10-01 |
18529-60A00-000 |
US $1.60 |
||
|
3
|
3
01550-06453-000
Bolt
AT:DOHC; 1988-08-01~1994-10-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0645A-000 BoltAT:DOHC; 1988-08-01~1994-10-01 |
01550-0645A-000 |
from US $0.96 |
||
|
4
|
4
18117-64B00-000
VALVE,ISC
AT:DOHC; 1988-08-01~1994-10-01 |
18117-64B00-000 |
— | ||
|
5
|
5
18117-64B30-000
VALVE ASSY,VACUUM SWITCHING
AT:DOHC; 1988-08-01~1994-10-01 |
18117-64B30-000 |
— | ||
|
6
|
6
18117-64B10-000
バルブアッシ,ソレノイド
PS(パワーステアリング)シヨウ; AT:DOHC; 1988-08-01~1994-10-01 |
18117-64B10-000 |
— | ||
|
7
|
7
09136-06086-000
スクリュ,6X14
AT:DOHC; 1988-08-01~1994-10-01 |
09136-06086-000 |
— | ||
| replacement | |||||
|
7
|
7
09136-06133-000 BOLT(6X16)Screw AT:DOHC; 1988-08-01~1994-10-01 |
09136-06133-000 |
US $12.50 |
||
|
8
|
8
09180-06106-000 SPACER(6.8X10X7)AT:DOHC; 1988-08-01~1994-10-01 |
09180-06106-000 |
from US $2.08 |
||
|
9
|
9
09308-10004-000 GROMMETAT:DOHC; 1988-08-01~1994-10-01 |
09308-10004-000 |
US $1.98 |
||
|
10
|
10
18640-73G00-000 SENSOR ASSY,KNOCKAT:DOHC; 1988-08-01~1994-10-01 |
18640-73G00-000 |
US $171.49 |
||
|
11
|
11
18340-64B63-000
パイプ,バキューム
AT:DOHC; 1988-08-01~1994-10-01 |
18340-64B63-000 |
— | ||
|
12
|
12
09355-13207-600 HOSE(13X20X600)Hose, breather L:600>200; AT:DOHC; 1988-08-01~1994-10-01 |
09355-13207-600 |
from US $11.63 |
||
|
13
|
13
02112-36103-000
Screw
AT:DOHC; 1988-08-01~1994-10-01 |
02112-36103-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-3610A-000 SCREWAT:DOHC; 1988-08-01~1994-10-01 |
02112-3610A-000 |
US $0.76 |
||
|
14
|
14
18476-64B00-000
ホース,ISC,NO.2
AT:DOHC; 1988-08-01~1994-10-01 |
18476-64B00-000 |
— | ||
| replacement | |||||
|
14
|
14
09343-05395-000
Hose
AT:DOHC; 1988-08-01~1994-10-01 |
09343-05395-000 |
— | ||
|
15
|
15
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>80; AT:DOHC; 1988-08-01~1994-10-01 |
09355-54115-600 |
from US $7.20 |
||
|
16
|
16
09355-35754-600
ホース,3.5X7.5X600
L:600>170; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:600>170; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-601 |
— | ||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:600>170; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
17
|
17
09355-35754-600
ホース,3.5X7.5X600
L:600>65; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:600>65; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:600>65; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
09355-35754-600
ホース,3.5X7.5X600
L:600>130; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
L:600>130; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)L:600>130; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09355-35754-600
ホース,3.5X7.5X600
L:600>200; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
L:600>200; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601)L:600>200; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09355-35754-600
ホース,3.5X7.5X600
PS(パワーステアリング)シヨウ,L:600>260; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
PS(パワーステアリング)シヨウ,L:600>260; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-601 |
— | ||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601)PS(パワーステアリング)シヨウ,L:600>260; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09355-35754-600
ホース,3.5X7.5X600
PS(パワーステアリング)シヨウ,L:600>95; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
PS(パワーステアリング)シヨウ,L:600>95; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35754-601 |
— | ||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601)PS(パワーステアリング)シヨウ,L:600>95; AT:DOHC; 1988-08-01~1994-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09408-00035-000 CLIPClamp AT:DOHC; 1988-08-01~1994-10-01 |
09408-00035-000 |
US $17.70 |
||
|
23
|
23
09250-04003-000 PLUG(OD:8)Plug (od:8) AT:DOHC; 1988-08-01~1994-10-01 |
09250-04003-000 |
US $1.12 |
||
| replacement | |||||
|
23
|
23
07130-0510B-000 BOLTBolt, sensor AT:DOHC; 1988-08-01~1994-10-01 |
07130-0510B-000 |
from US $0.96 |
||
|
24
|
24
18466-64B00-000
ホース,キャニスタバキューム
AT:DOHC; 1988-08-01~1994-10-01 |
18466-64B00-000 |
— | ||
| replacement | |||||
|
24
|
24
18564-72GV0-000 HOSE,L:310AT:DOHC; 1988-08-01~1994-10-01 |
18564-72GV0-000 |
US $6.07 |
||
|
25
|
25
18560-53B00-000
キャニスタ
AT:DOHC; 1988-08-01~1994-10-01 |
18560-53B00-000 |
— | ||
|
26
|
26
09355-45855-600
HOSE(4.5X8.5X600)
L:600>100; AT:DOHC; 1988-08-01~1994-10-01 |
09355-45855-600 |
— | ||
| replacement | |||||
|
26
|
26
09355-45001-600 Hose(4.5X8.5X600)L:600>100; AT:DOHC; 1988-08-01~1994-10-01 |
09355-45001-600 |
from US $10.79 |
||
|
27
|
27
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>290; AT:DOHC; 1988-08-01~1994-10-01 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
27
|
27
44421-12FR0-000 HOSEL:600>290; AT:DOHC; 1988-08-01~1994-10-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
28
|
28
09401-18404-000 CLIPAT:DOHC; 1988-08-01~1994-10-01 |
09401-18404-000 |
from US $1.33 |
||
